2-5Installation: CPU-NXT 3.2 into the BB2
16-1408348
Checking/Installing
Jurisdictional SPI
and BIOS
Depending on the jurisdiction, the Jurisdictional SPI (JUR SPI), Figure 2-7 (A), and BIOS,
Figure 2-7 (B), may not ship with CPU-NXT 3.2. Before installing CPU-NXT 3.2, verify that each chip
is fully seated.
NOTE: Figure 2-7 (C) shows orientation of the EPROMS.

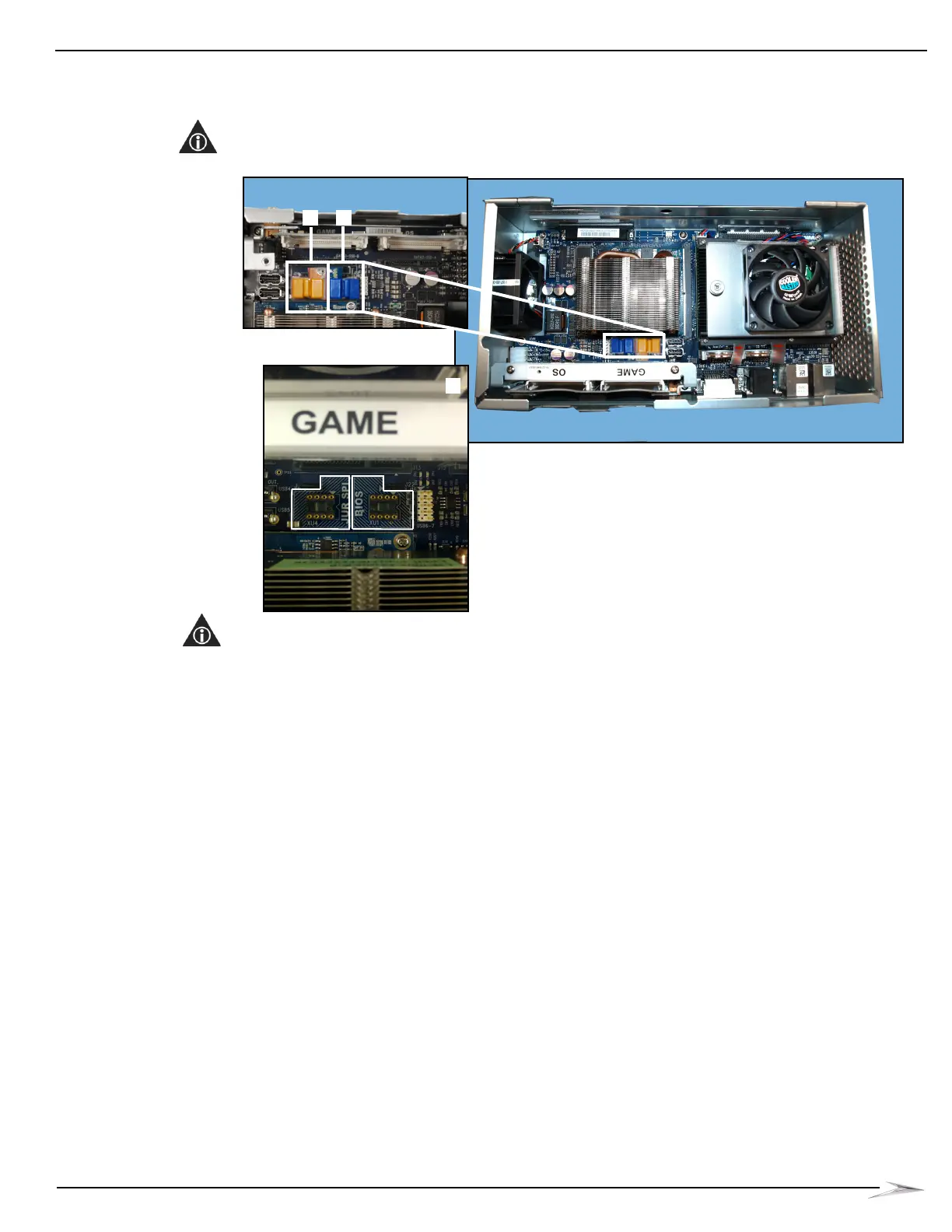

Figure 2-7 JUR SPI and BIOS installed in CPU-NXT 3.2.
NOTE: If the BIOS ever requires replacing, see Removing/Installing Jurisdictional SPI and BIOS on
page 3-10, which explains how to replace the chip.
A B
C
