Manual 26166V1 MicroNet Simplex & MicroNet Plus
Woodward 102

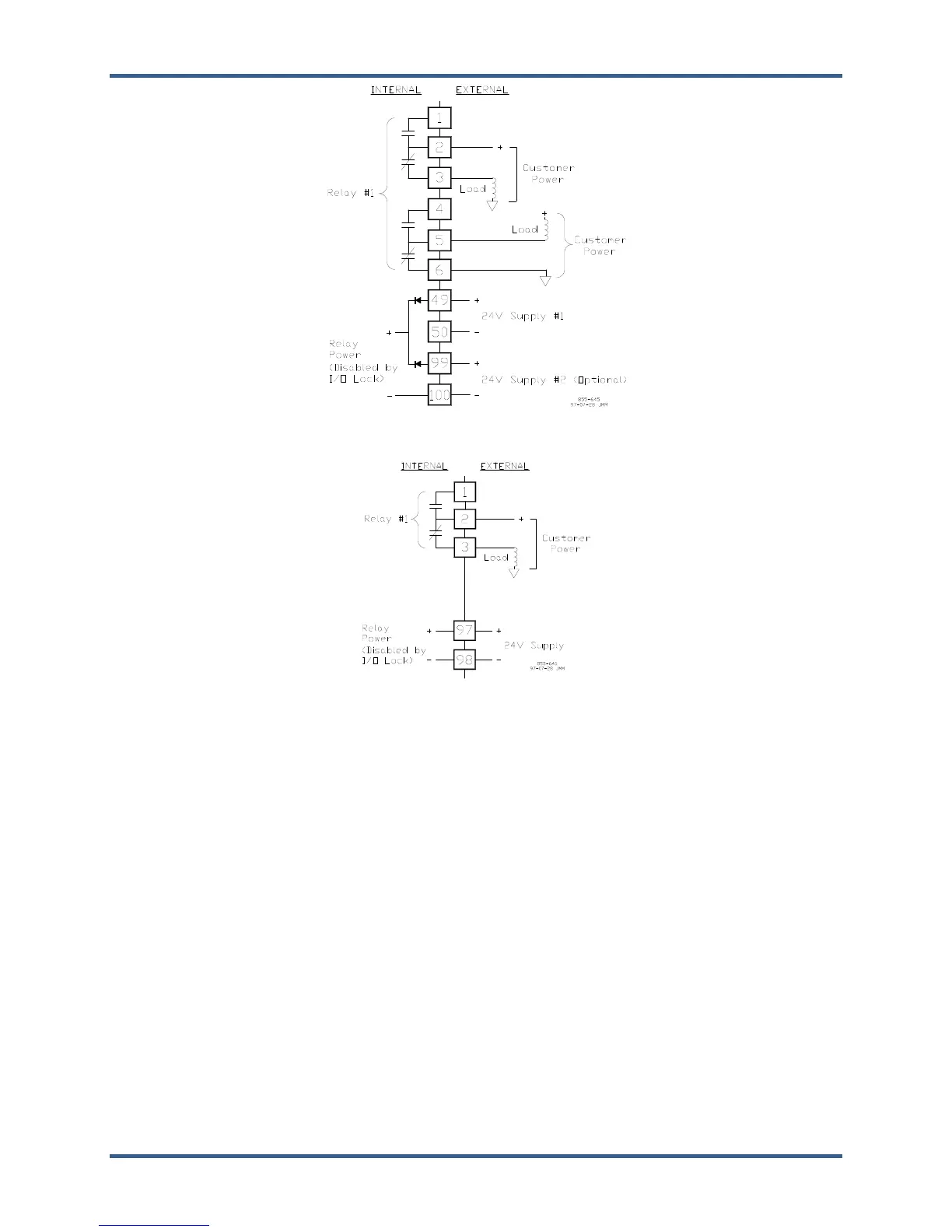

Figure 8-18. Relay Output Interface Wiring to a 16Ch Relay Module
Figure 8-19. Relay Output Interface Wiring to a 32Ch Relay Module
Configuration Note
Verify that each set of relay contacts meets the power requirements of the circuit with which it is being
used. Interposing relays are required when the interfaced circuit demands relay contacts with a higher
power rating. If interposing relays or other inductive loads are required, it is recommended that
interposing relays with surge (inductive kickback) protection be used. Improper connection could cause
serious equipment damage.
8.6.3—FTM Reference
The 64Ch DO Module uses the same relay modules as the 32Ch DO Module. See the previous section.
8.6.4—Troubleshooting
The 64Ch DO Module uses the same relay modules as the 32Ch DO Module and therefore has the same
troubleshooting approach as the 32Ch DO Module. See the previous section.
