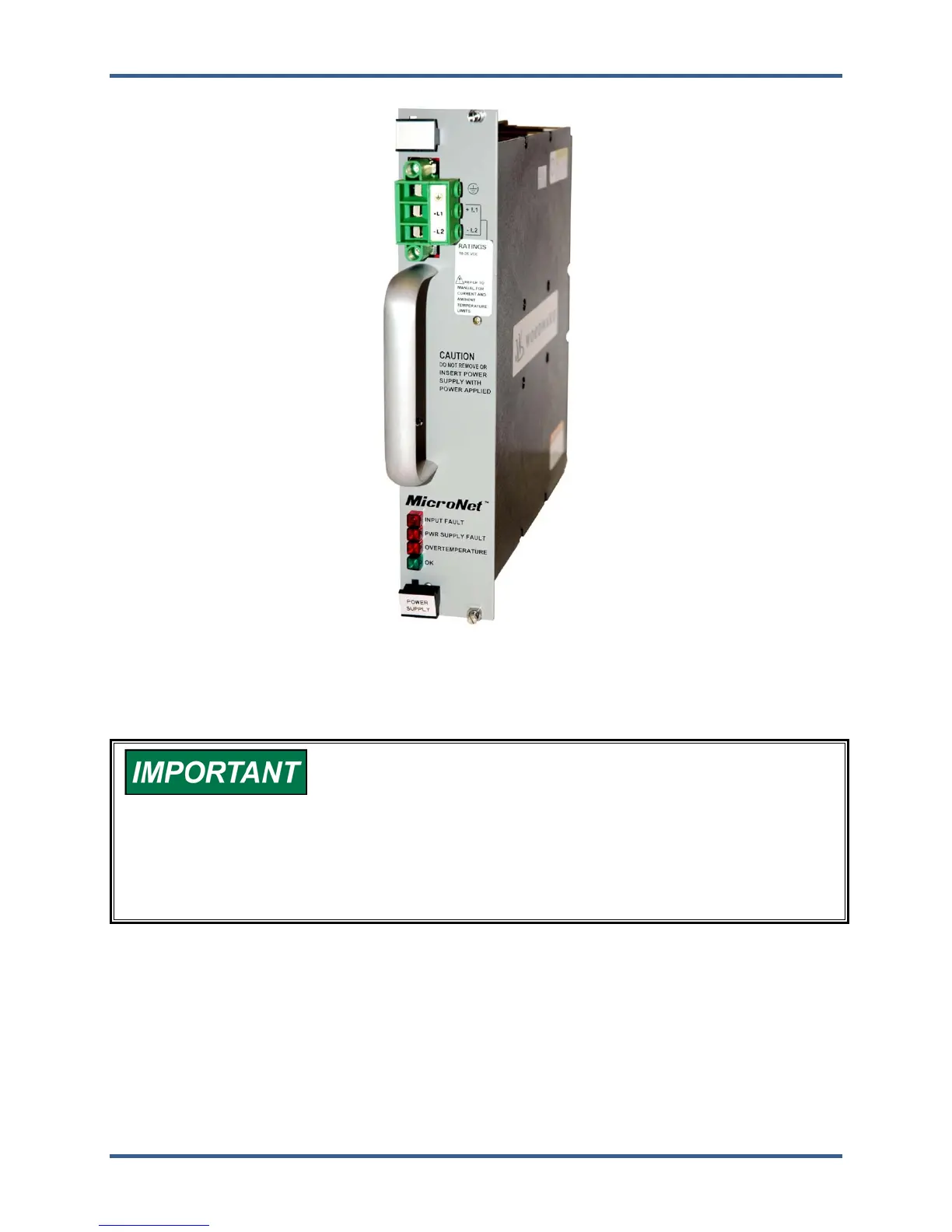

Figure 5-1. Power Supply Module
5.1.2—Power Supply Module Specifications
 All Temperature ratings specify the System Ambient
Temperature as measured at the front of the MicroNet chassis.
 The Power Supply operating temperature range is –10 to +65 °C
with de-rated 5 Vdc output current above 55 °C. See Power
Supply specifications.
 For a particular system configuration, use the MicroNet Power
Program to calculate the output current requirements (24 V, 5 V)
as a function of the Chassis, CPUs, and I/O modules used in the
system.
Table 5-1. Main PS (24 Vdc Input)
Operating range: 18 to 36 Vdc
Nominal input voltage rating: 24 Vdc
Maximum input current: 33 A
Maximum input power: 600 W
Input power fuse/breaker rating: 50 A time delay
Maximum output current (24 Vdc): 12.0 A @ 65 °C System Ambient Temp.
Maximum output current (5 Vdc): 22.0 A @ 65 °C, 28 A @ 60 °C, 32 A @ 55 °C
Holdup time: 5 ms @ 24 Vdc
