CI6X SERIES SPECTROPHOTOMETER
17

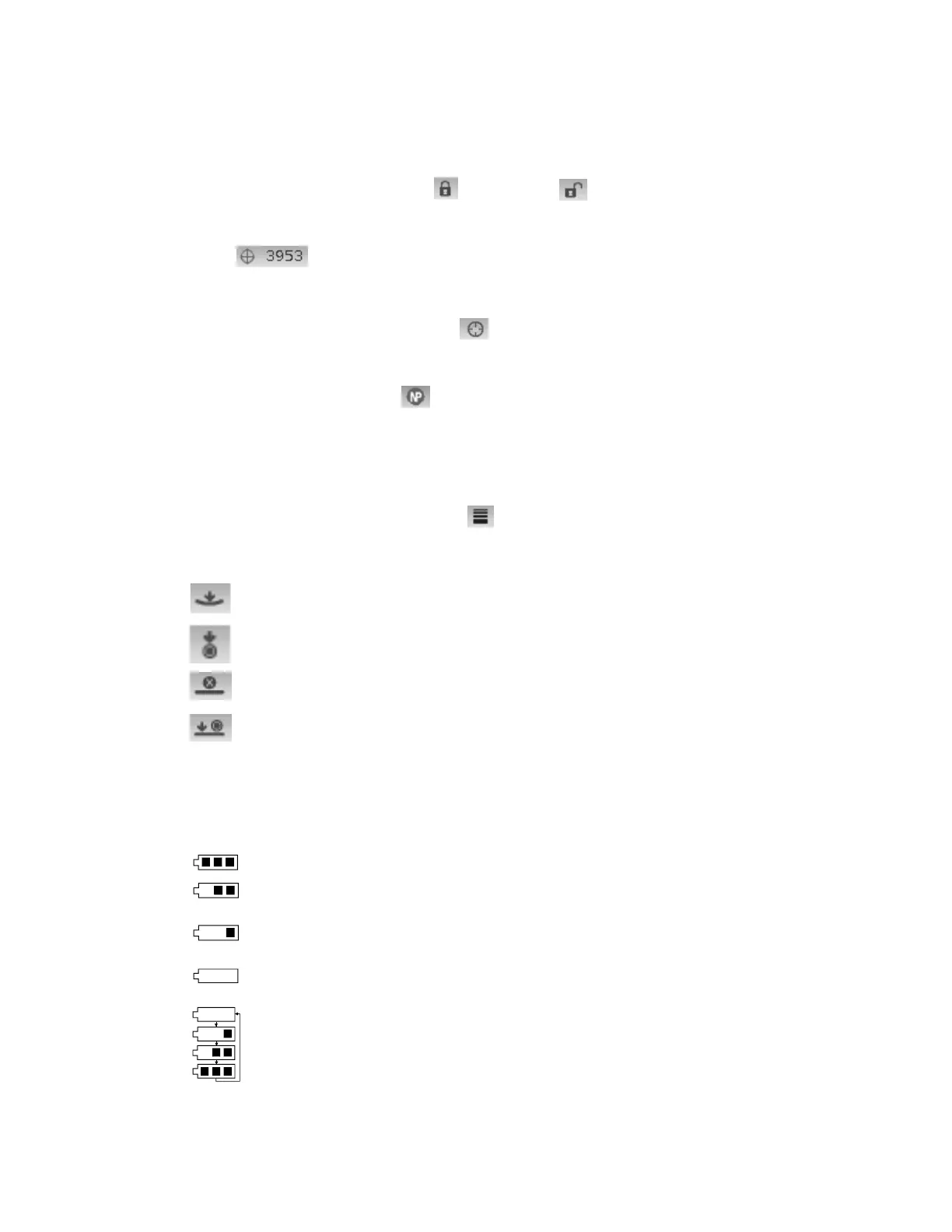

Header Bar
The header bar at the top displays various icons showing the current instrument setup and
condition. Refer below for a description of each.
• Controls Lock: Displays a locked
or unlocked icon for the instrument controls.
Refer to Locking the Navigation Control earlier in this manual for an explanation.
• Storage Capacity: Displays an icon and the number of remaining sample storage
locations
. A maximum of 4000 samples can be stored.
NOTE: Storage must be enabled in Configuration.
• UV Instrument: Displays the UV type selected (D65, ADj1, ADj2) if the instrument is UV.
• Aperture Position: Displays an icon
to indicate the aperture position. Refer to
Changing the Aperture Setting earlier in this manual for an explanation.
NOTE: The icon does not appear on large spot instruments.
• NetProfiler: Displays an icon
that represents the NetProfiler status.
NOTE: NetProfiler must be enabled in Configuration.
Solid Green icon: NetProfiler subscription is currently activated.
Solid Yellow icon: The profile has expired and updating is required.
Solid Red icon: NetProfiler subscription is currently NOT activated.
• Transform Method: Displays an icon
if a transform is enabled.
• Measurement Trigger Method: Displays the measurement method currently selected
for the instrument.
Indicates the instrument must be pressed to the shoe to activate the read
switch to take a measurement.
Indicates the measure button on the top of the instrument must be pressed
to take a measurement.
Indicates a software command is required to initiate a measurement. No
read switch or measure button are used.
Indicates that both the read switch and measure button are required to
take a measurement.
• USB or Bluetooth Connection: The USB icon appears when the instrument is plugged
into the USB port on the computer. If available, the Bluetooth
®
icon appears dim when
searching for a connection and bold when a connection is established to the computer.
• Battery Gauge: Depicts the current condition of the battery pack.
Indicates the battery pack is fully charged.
Indicates the battery pack has a sufficient charge for a substantial number
of measurements.
Indicates the battery pack is low, but measurements are still possible.
Battery pack should be charged soon.
Indicates the battery pack is very low and only a few measurements
remain. Battery pack should be charged immediately.
Indicates the AC adapter is plugged in and the battery pack is charging
(battery indication segments cycle). The battery indicator will stop cycling
and display three segments when the battery pack is fully charged.
