CI6X SERIES SPECTROPHOTOMETER
53
Pass/Fail Option
The Pass/Fail display option located in the color space group gives you a quick pass/fail view of a
sample. Select the [
/X] option to activate the pass/fail display screen.
Graph View
The graph view allows you to display L*a*b* color space coordinates and associated tolerances
for L*a*b*, L*C*H*, Ecmc, E00, E94, and Lab measurements.
To activate the graph view:
1. From the Measure screen, use the Right navigation button to move the highlight focus to the
Progress column.
2. Use the Up or Down navigation buttons to highlight the Graph View
icon and tap Select.
Note: The Graph icon will not appear in the Progress column unless one of the delta color
spaces listed above is first selected.

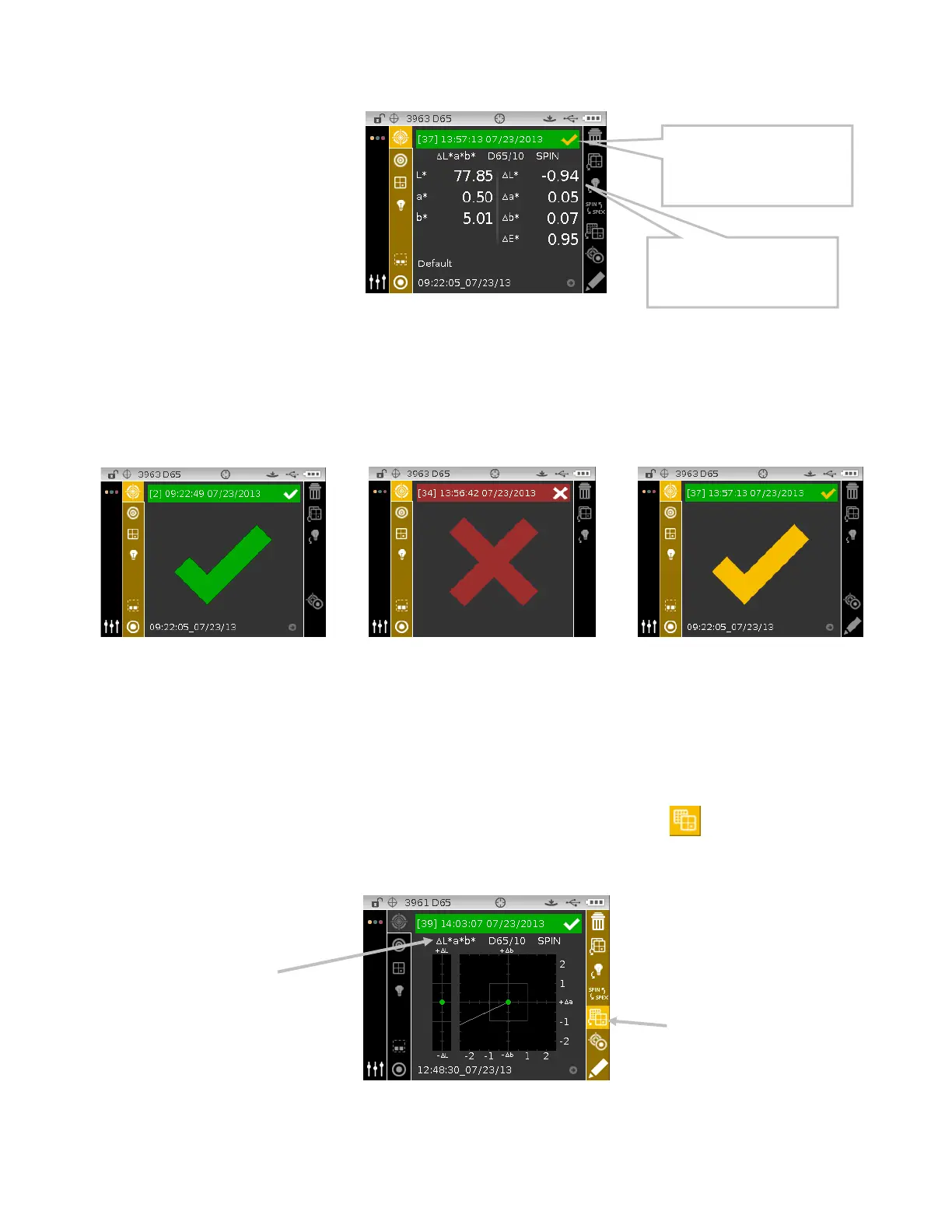

Failed
Passed
Passed with Warning
Pass/Warning
Example
Yellow checkmark and green
bar indicated at least one
attribute has exceeded the
warning limit.
The “L* attribute exceeded
the 80% warning for the 1.00
tolerance set.
Current color space
selected
Graph view icon
