Xerox ColorQube 9303 Service Manual

November 2015
5-9
Xerox® ColorQube® 9303 Family
PL 5.20
Parts Lists

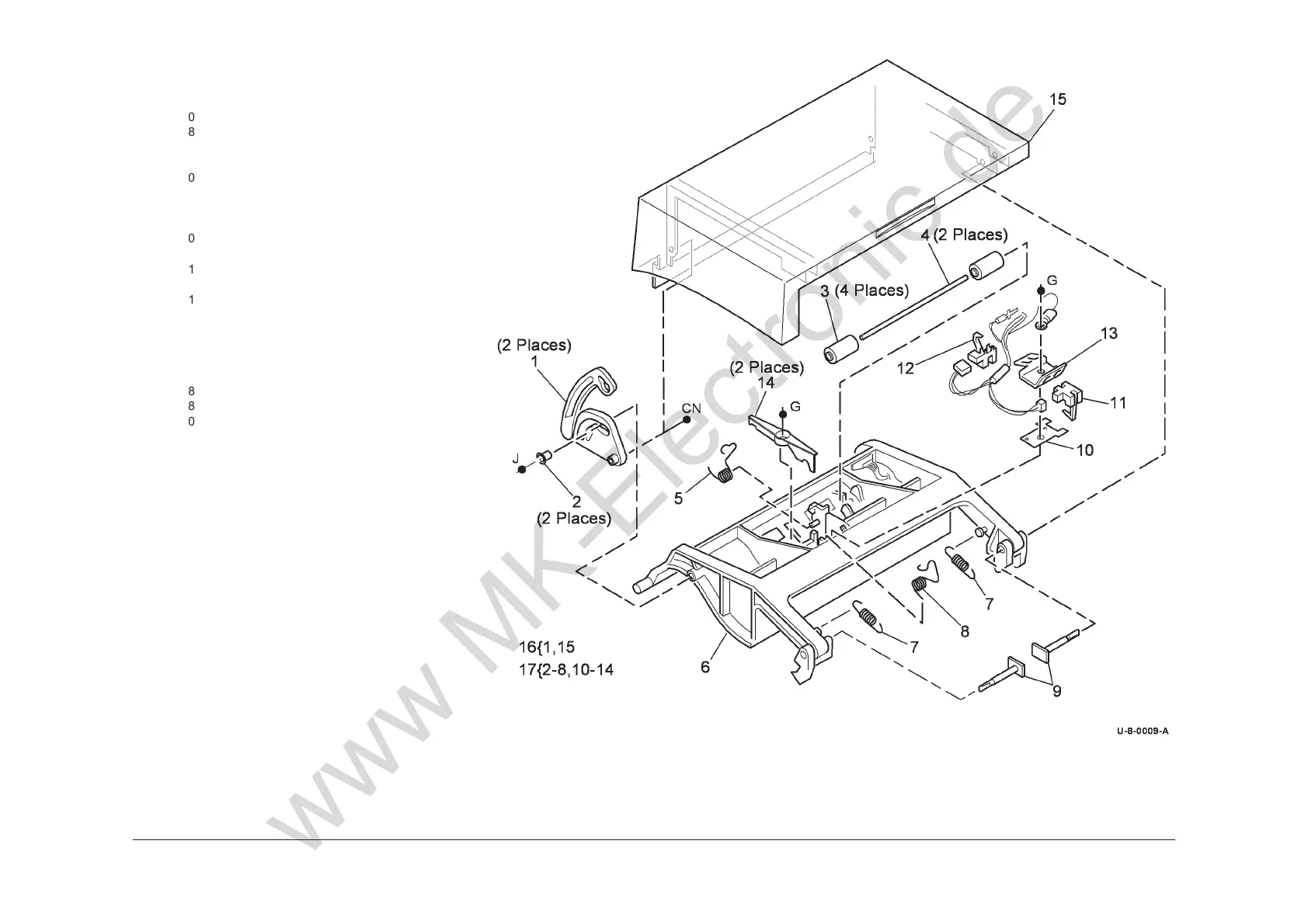

PL 5.20 Top Cover Assembly
Item Part Description
1
– Hinge (P/O PL 5.20 Item 16)
2 – Bushing (P/O PL 5.20 Item 16)
3 022E25061 CVT/Takeaway idler
4 806E19680 Shaft
5 – Torsion spring (green) (P/O PL
5.20 Item 17)
6 038E22914 Base
7 – Spring (P/O PL 5.20 Item 17)
8 – Torsion spring (silver) (P/O PL 5.20
Item 17)
9 029E37810 Latch pin
10 – Spring plate (P/O PL 5.20 Item 17)
11 130K73960 DADH TAR sensor (Q05-096)
(REP 5.8)
12 130K73970 DADH CVT Sensor (Q05-097)
(REP 5.8)
13 – Sensor support (P/O PL 5.20 Item
17)
14 – Shaft securing bracket (P/O PL
5.20 Item 17)
15 802K62453 Top cover
16 802K93770 Top cover assembly (REP 5.1)
17 055K37570 Top access cover assembly (REP
5.2)
NOTE: For the top cover interlock switch (S05-212), refer to
PL 5.15 Item 11.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
