Xerox ColorQube 9303 Service Manual

November 2015
5-56
Xerox® ColorQube® 9303 Family
PL 12.300
Parts Lists

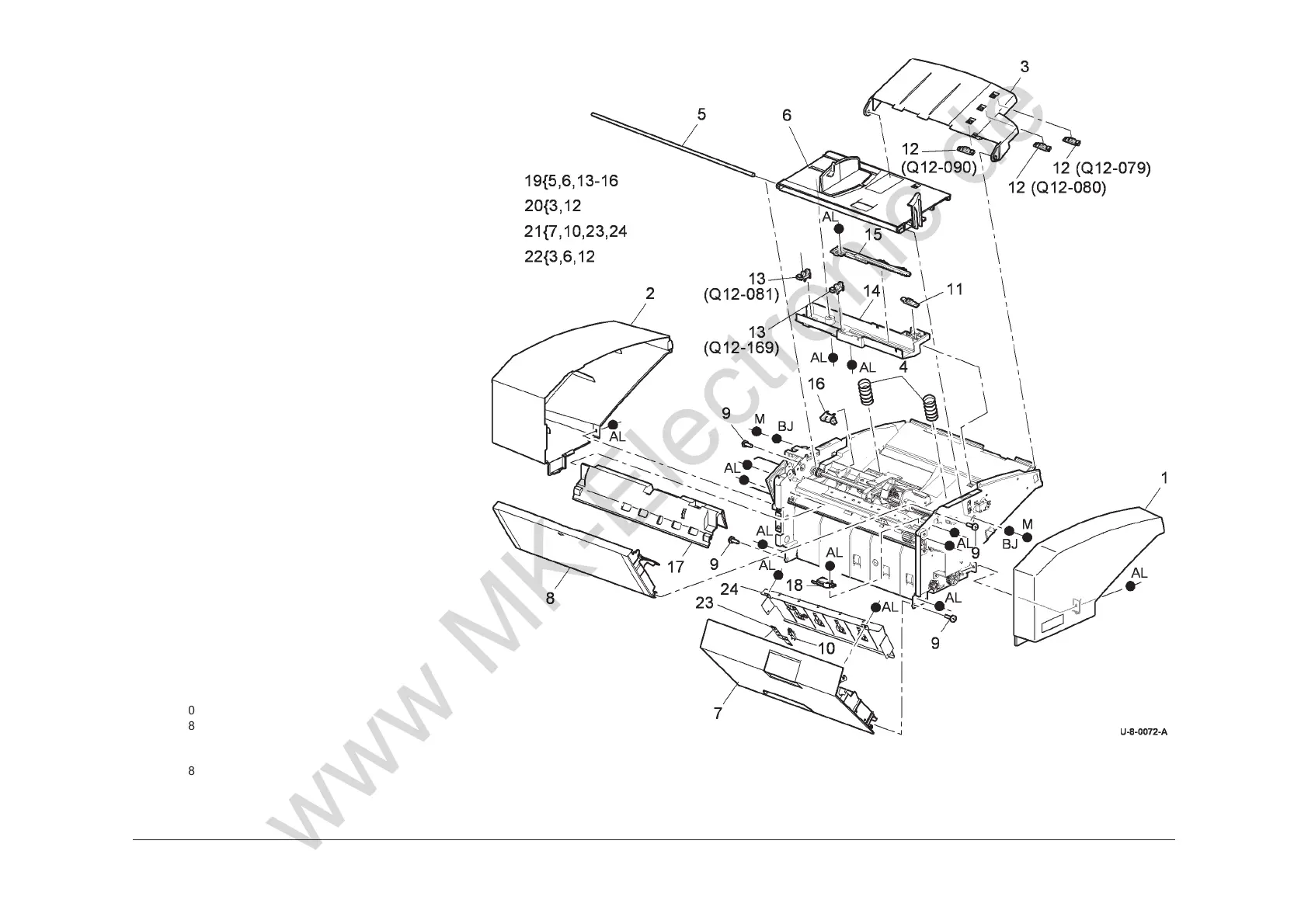

PL 12.300 Inserter Covers
Item Part Description
1
– Front cover (Not spared) (REP
12.83-171)
2 – Rear cover (Not spared) (REP
12.83-171)
3 – Sensor tray (P/O PL 12.300 Item
20) (REP 12.89-171)
4 – Bottom tray spring (Not spared)
5 – Bottom tray shaft (Not spared)
6 – Bottom tray (P/O PL 12.300 Item
19) (REP 12.90-171)
7 – Lower jam cover (P/O PL 12.300
Item 21) (REP 12.92-171)
8 – Top cover door (REF: PL 12.310
Item 17)
9 – Pivot pin (Not spared)
10 – Inserter acceleration sensor (Q12-
316) (P/O PL 12.300 Item 21)
(REP 12.92-171)
11 – Inserter unit empty sensor (Q12-
082) (Not spared) (REP 12.90-
171)
12 – Inserter paper length 1 sensor
(Q12-079)/Inserter paper length 2
sensor (Q12-080),Inserter paper
length sensor 3 (Q12-090) (Not
spared) (REP 12.89-171)
13 – Paper width sensor 1 (Q12-
081),Paper width sensor 2 (Q12-
169) (P/O PL 12.300 Item 19)
(REP 12.90-171)
14 – Bottom tray bracket (P/O PL 12.300
Item 19)
15 – Bottom tray rack (P/O PL 12.300
Item 19)
16 – Inserter bottom plate sensor (Q12-
085) (P/O PL 12.300 Item 19)
(REP 12.94-171)
17 – Top inside cover (Not spared)
18 – Inserter jam cover interlock switch
(S12-179) (Not spared) (REP
12.88-171)
19 050K68510 Bottom tray assembly
20 848K31350 Sensor tray assembly
21 – Lower jam cover assembly (Not
spared)
22 848K31370 Main tray assembly
23 – Bracket (P/O PL 12.300 Item 21)
24 – Lower jam inner cover (P/O PL
12.300 Item 21)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
