Xerox ColorQube 9303 Service Manual

November 2015
5-3
Xerox® ColorQube® 9303 Family
PL 1.15
Parts Lists

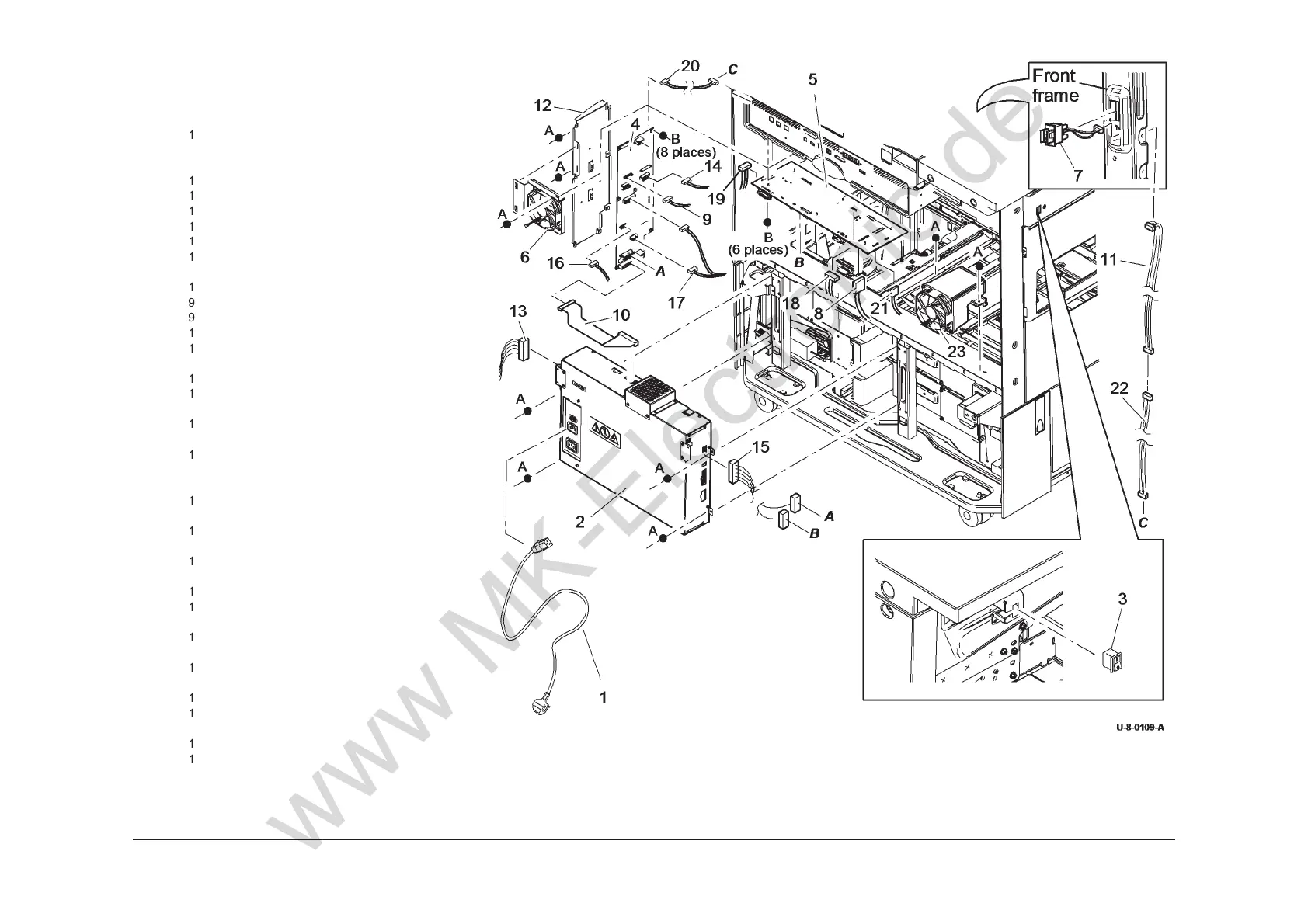

PL 1.15 Main Power Supply
Item Part Description
1
– Main power cord (see below for
variants)
– 152S06414 United Kingdom
– – USSG/XCL (15 amp) (P/O PL
31.11 Item 28)
– 152S06400 USSG/XCL (20 amp)
– 152S06413 XE
– 152S06402 Argentina
– 152S06415 Denmark
– 152S06416 Switzerland
2 112K01070 Power supply unit (W/TAG 001)
(REP 1.9)
3 110K21010 Main power rocker switch
4 960K71860 Drum driver PWB (REP 3.6)
5 960K46462 Media path driver PWB (REP 3.5)
6 127E16360 Enclosure fan (MOT42-063)
7 110K21111 Front door interlock switch (S01-
103) (REP 1.8)
8 117E35720 Bypass extension harness (PJ405)
9 117E35610 Drum driver MR sensor harness
(PJ701)
10 117E35590 Drum driver power supply interface
cable (PJ902)
11 117E35560 Chassis interlock harness
12 – Drum driver PWB bracket (P/O PL
1.15 Item 4)
13 117E35550 AC chassis heater harness
(PJ5AC)
14 117E35581 Drum driver to front components
harness (PJ501)
15 117E35600 Drum driver/Media path power
harness (PJ602, PJ803)
16 117E35620 Engine fan harness (PJ901)
17 117E35650 Cleaning unit interface harness
(PJ601, PJ802)
18 117E35690 Media path driver PWB to RALPH
harness (PJ202)
19 117E35710 Media path exit/horizontal harness
(PJ905)
20 117E35750 Transfix roller harness (PJ401)
21 117E35530 Media path driver PWB to 3 tray
module PWB harness (PJ401)
22 117E35700 Midrail front door switch harness
23 127K62260 Marking unit cooling fan
NOTE: Also part of PL 31.11 Item 28.
