Xerox ColorQube 9303 Service Manual

November 2015
5-39
Xerox® ColorQube® 9303 Family
PL 12.130
Parts Lists

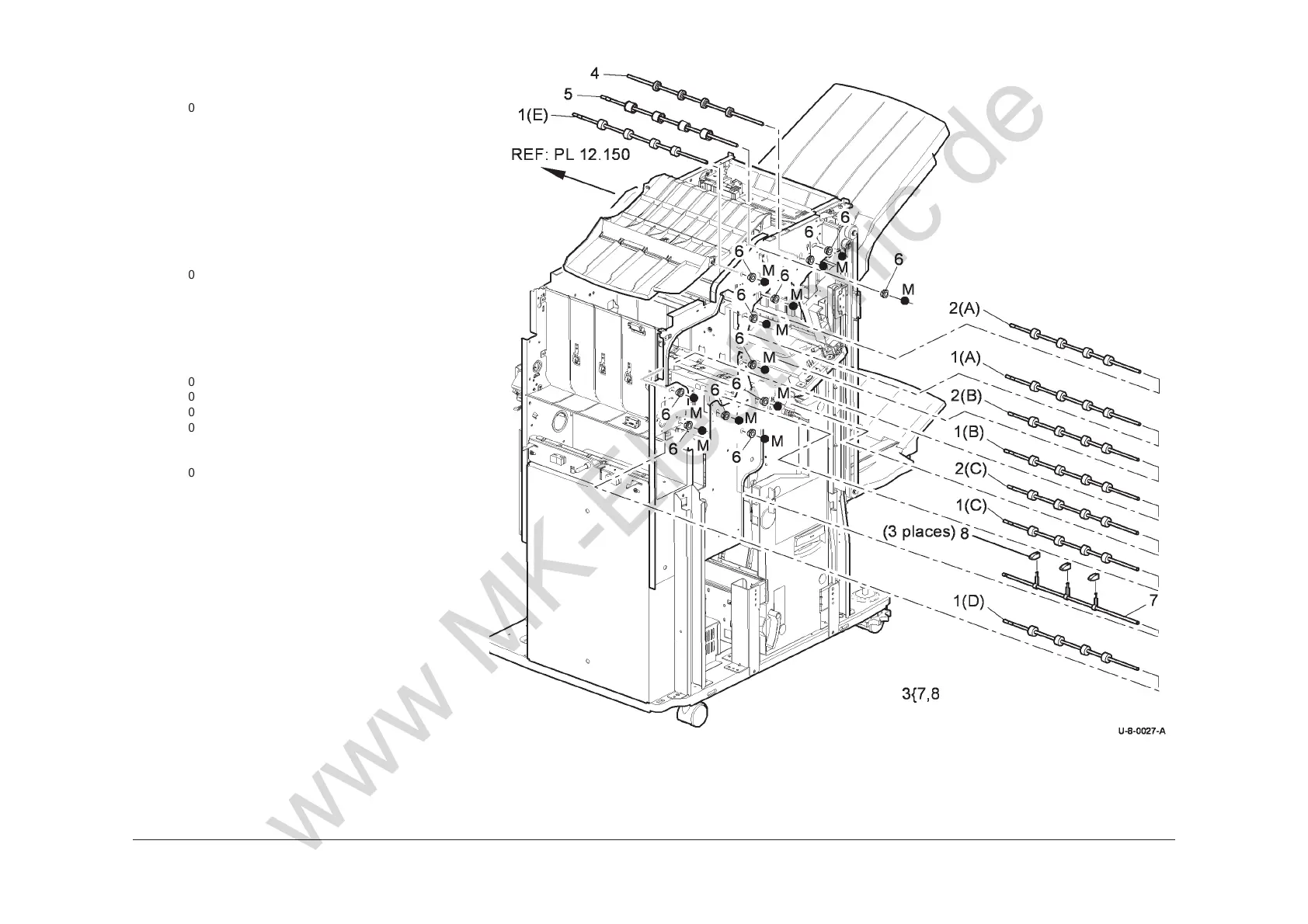

PL 12.130 HVF Feed Assembly and
P
unch (2 of 3)
Item Part Description
1
006K32840 Feed roll assembly (Short shaft
type)
– – Buffer upper roll (1A) (REP 12.45-
171)
– – Inserter guide roll (1B) (REP
12.41-171)
– – Buffer pocket roll (1C) (REP 12.42-
171)
– – Input roll (1D) (REP 12.40-171)
– – Top exit feed roll (1E) (REP 12.47-
171)
2 006K32850 Feed roll assembly
– – Stacker exit feed roll (2A) (REP
12.46-171)
– – Buffer lower roll (2B) (REP 12.44-
171)
– – Booklet entrance roll (2C) (REP
12.43-171)
3 019K13660 Buffer clamp assembly
4 006K32820 Stacker exit roll
5 006K32810 Top exit roll
6 013E25800 Copper bearing
7 – Buffer clamp shaft (P/O PL 12.130
Item 3)
8 019K14420 Buffer clamp
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
