Xerox ColorQube 9303 Service Manual

November 2015
5-8
Xerox® ColorQube® 9303 Family
PL 5.15
Parts Lists

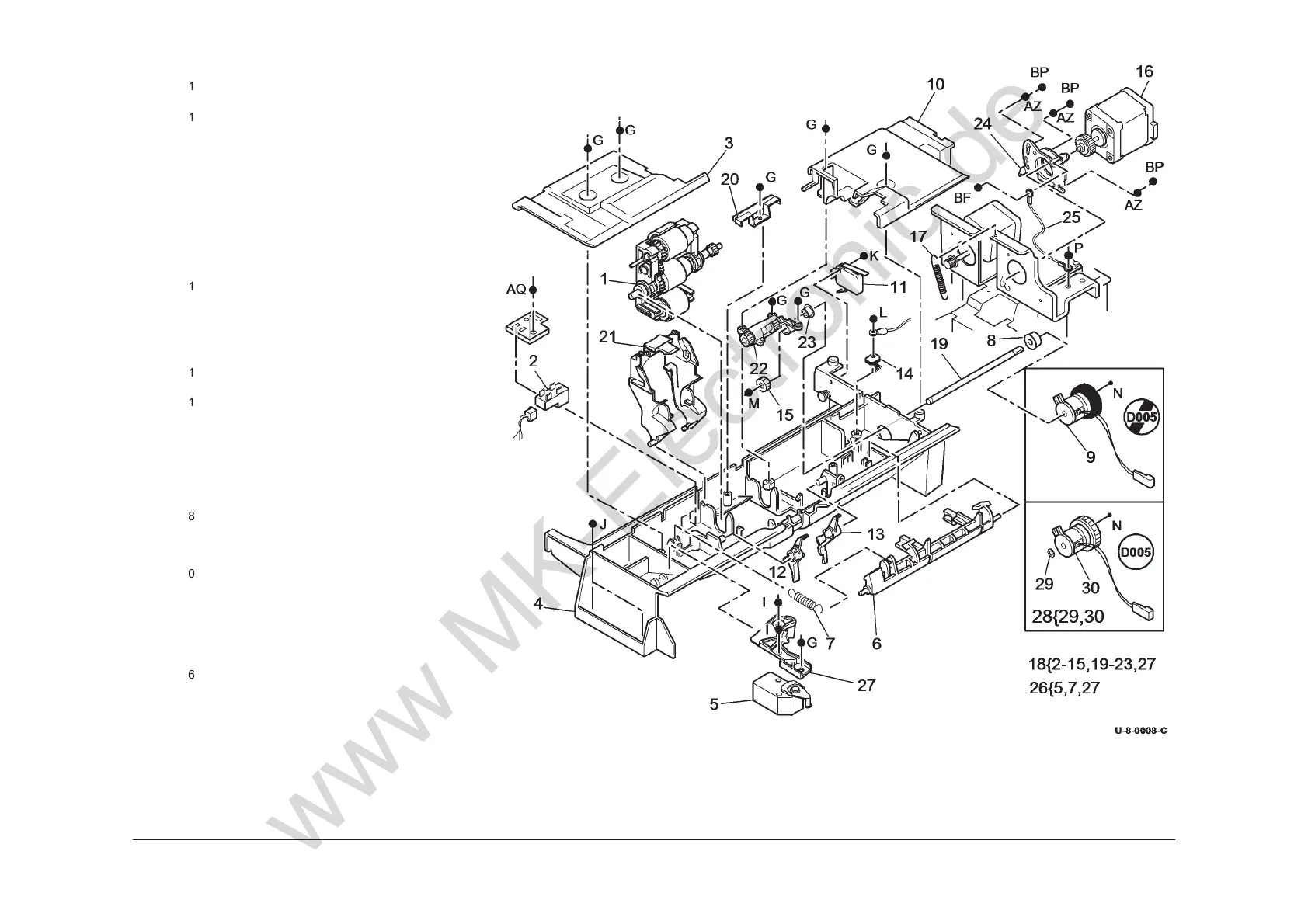

PL 5.15 Feed Assembly
Item Part Description
1
113R00718 Feed roll assembly (REP 5.14)
(See NOTE 2)
2 130E11200 DADH feed sensor (Q05-204)
3 – Front cover (P/O PL 5.15 Item 18)
4 – Feed housing (P/O PL 5.15 Item
18)
5 – Nudger Motor (MOT05-098) (P/O
PL 5.15 Item 26)
6 – Feed yoke (P/O PL 5.15 Item 18)
7 – Spring (P/O PL 5.15 Item 26)
8 – Bearing (P/O PL 5.15 Item 18)
9 – DADH feed clutch (CL05-062) (Not
spared) (W/O TAG D-005)
10 – Rear cover (P/O PL 5.15 Item 18)
11 110E13480 DADH cover interlock switch (S05-
212)
12 – Front feed gate (P/O PL 5.15 Item
18)
13 – Rear feed gate (P/O PL 5.15 Item
18)
14 125E00430 Static eliminator
15 – Gear (P/O PL 31.12 Item 8)
16 127K53770 DADH feed motor (MOT05-074)
(ADJ 5.1)
17 – Feed motor tension spring (red) (P/
O PL 5.10 Item 9)
18 – Feed assembly (complete) (P/O PL
31.10 Item 15) (REP 5.3)
19 – Shaft (P/O PL 31.12 Item 8)
20 – Bracket (P/O PL 5.15 Item 18)
21 802E87730 Feed roll assembly cover
22 – Intermediate feed bearing housing
(P/O PL 31.12 Item 8)
23 – Bearing (P/O PL 31.12 Item 8)
24 004E22560 Feed motor bracket
25 – Ground harness (P/O PL 5.15 Item
18)
26 – Nudger motor and bracket
assembly (Not spared)
27 – Motor bracket (P/O PL 5.15 Item
26)
28 604K61440 Feed clutch and spacer kit (W/TAG
D-005)
29 – Spacer (P/O PL 5.15 Item 28) (W/
TAG D-005)
30 – Feed clutch (P/O PL 5.15 Item 28)
(W/TAG D-005)
NOTE: 1: For the feed motor drive belt, refer to PL 5.35 Item
5.
NOTE: 2: To reset the count, go to dC135.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
