Xerox ColorQube 9303 Service Manual

November 2015
5-92
Xerox® ColorQube® 9303 Family
PL 81.45
Parts Lists

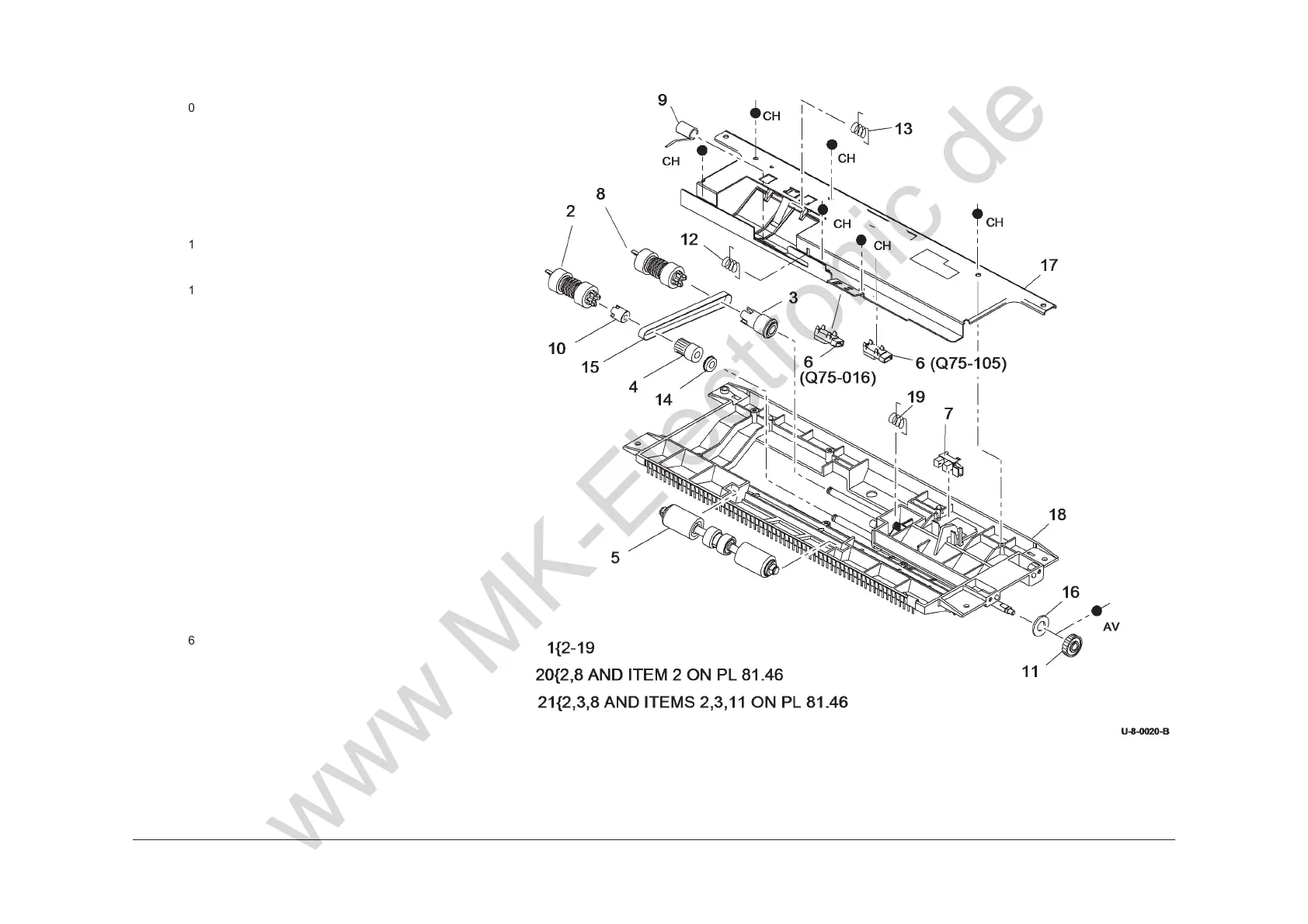

PL 81.45 Tray 5 Feed Assembly (2 of
3
)
Item Part Description
1
059K69991 Upper feeder assembly (REP 82.7)
2 – Feed roller (REP 81.7) (P/O PL
81.45 Item 20) (See NOTE)
3 – Nudger pulley (P/O PL 81.45 Item
1)
4 – One way coupling (P/O PL 81.45
Item 1)
5 – Take away idler roller (P/O PL
31.12 Item 6)
6 130E11610 Tray 5 empty sensor (Q75-016)
(REP 75.1)/Feed sensor (Q75-
105) (REP 81.11)
7 130E20360 Stack height sensor (Q75-011)
(REP 75.2)
8 – Nudger roller (P/O PL 81.45 Item
20) (REP 81.7)
9 – Torsion spring (P/O PL 81.45 Item
1)
10 – Clutch (P/O PL 81.45 Item 1)
11 – Gear (29T) (P/O PL 81.45 Item 1)
12 – Housing spring (P/O PL 81.45 Item
1)
13 – Torsion chute spring (P/O PL 81.45
Item 1)
14 – Bearing (P/O PL 81.45 Item 1)
15 – Roller belt (P/O PL 81.45 Item 1)
16 – Washer (P/O PL 81.45 Item 1)
17 – Upper feed assembly top cover (P/
O PL 81.45 Item 1)
18 – Upper feed assembly base (P/O PL
81.45 Item 1)
19 – Torsion nudger spring (P/O PL
81.45 Item 1)
20 – Feed roll kit (Pack of 3) (REF: PL
31.11 Item 26) (REP 81.7)
21 604K95530 Feed roll retrofit kit (W/TAG P-002)
NOTE: To reset the HFSI count, go to dC135.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
