Xerox ColorQube 9303 Service Manual

November 2015
5-105
Xerox® ColorQube® 9303 Family
PL 94.10
Parts Lists

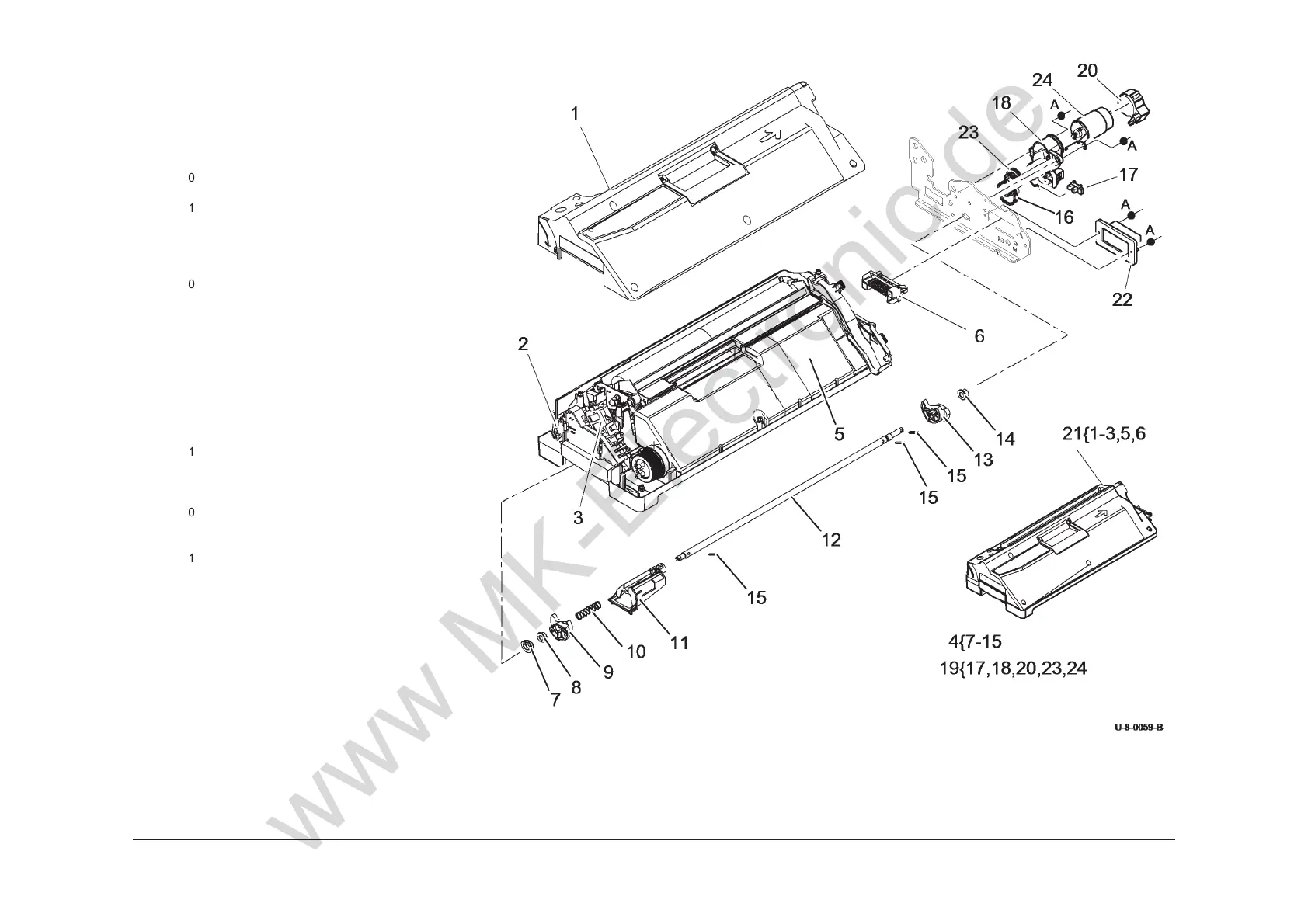

PL 94.10 Cleaning Unit
Item Part Description
1
– Cleaning unit lid (P/O PL 94.10
Item 21)
2 – Return reservoir pump (P/O PL
94.10 Item 21)
3 – Delivery reservoir pump (P/O PL
94.10 Item 21)
4 020K20530 Cam shaft assembly
5 – Reservoir (P/O PL 94.10 Item 21)
6 114E24380 Connector 12 pin (REP 91.33)
7 – Thrust washer (P/O PL 31.11 Item
23)
8 – Bushing roller (P/O PL 31.11 Item
23)
9 008E08570 Cam front
10 – Spring lock cam (P/O PL 94.10 Item
4)
11 – Mount lock cam (P/O PL 94.10 Item
4)
12 – Shaft (P/O PL 94.10 Item 4)
13 – Cam rear (P/O PL 94.10 Item 4)
14 – Bushing shaft (P/O PL 94.10 Item
4)
15 – Pin dowel (P/O PL 94.10 Item 4)
16 – Lift gear (Not spared)
17 130E12940 Cleaning unit home sensor (Q94-
105) (REP 91.27)
18 – Gear train housing (P/O PL 94.10
Item 19)
19 020K20543 Cleaning unit motor assembly (See
NOTE 1)
20 – Encoder (P/O PL 94.10 Item 19)
21 108R00989 Cleaning unit (complete) (REP
94.1)
22 – Connector housing (Not spared)
23 – Drive gear (P/O PL 94.10 Item 19)
24 – Cleaning unit motor (P/O PL 94.10
Item 19)
NOTE: 1: Drum cleaning motor assembly is mounted onto
rear frame
NOTE: .2: A Cleaning unit handle kit is also available, refer to
PL 94.20 Item 27.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
