Xerox ColorQube 9303 Service Manual

November 2015
5-36
Xerox® ColorQube® 9303 Family
PL 12.115
Parts Lists

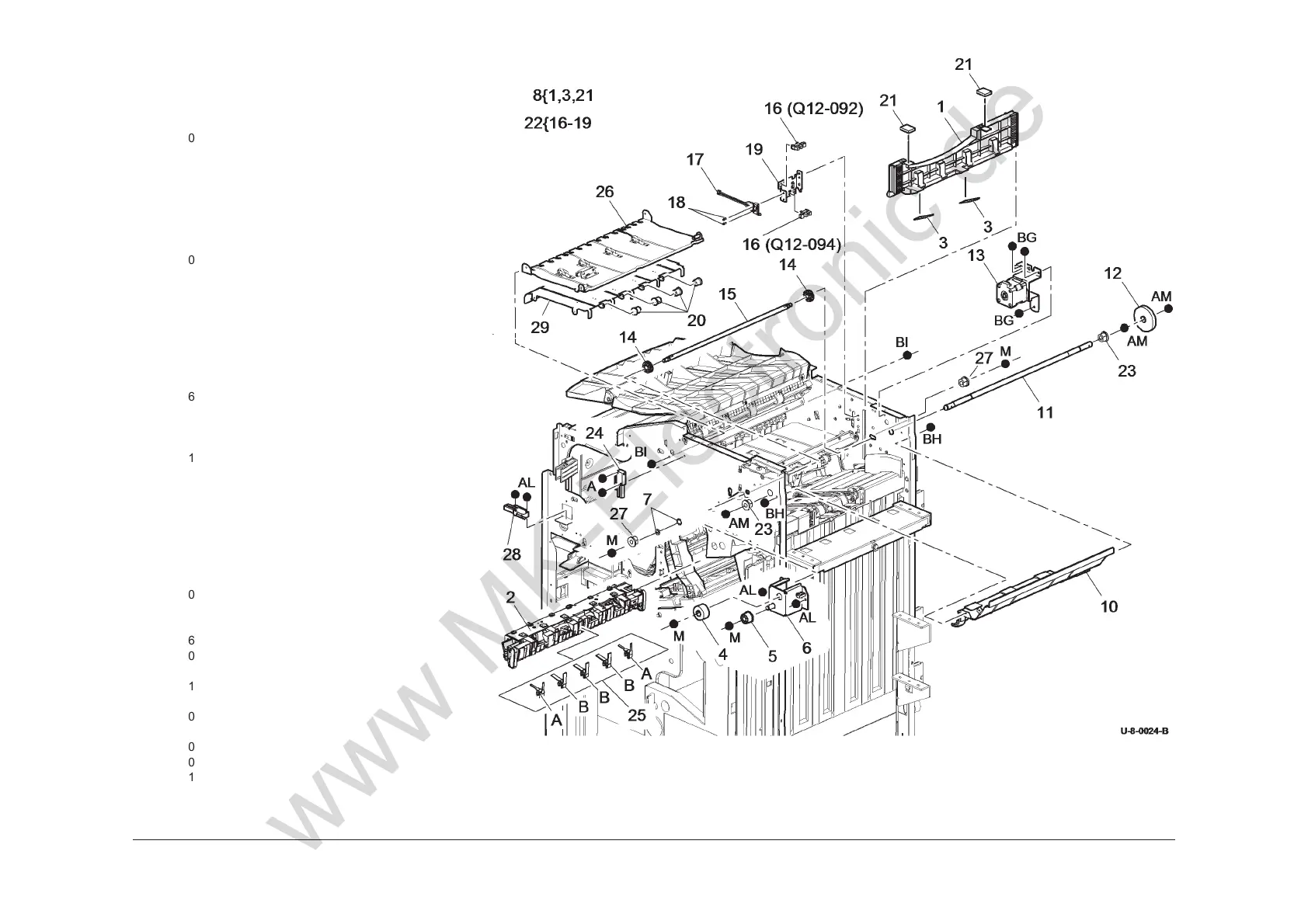

PL 12.115 HVF Ejector, Pressing and
S
upport (3 of 3)
Item Part Description
1
– Paper pusher (P/O PL 12.115 Item
8)
2 033K04644 Paddle unit (REP 12.49-171)
3 – Pusher mylar (P/O PL 12.115 Item
8)
4 – Timing belt pulley (Not spared)
5 – Timing belt tensioner (Not spared)
6 – Front stacker pulley bracket (Not
spared)
7 – Thrust washer (Not spared)
8 050K68501 Paper pusher assembly (REP
12.53-171)
9 – Not used
10 – Compile exit upper guide (Not
spared)
11 – Stacker main drive gear shaft (Not
spared) (REP 12.37-171)
12 – Stacker main drive gear (Not
spared) (REP 12.37-171)
13 674K03550 Paper pusher motor assembly
(MOT12-265) (REP 12.51-171)
14 – Pinion gear (Not spared)
15 – Pinion gear shaft (Not spared)
16 130E12830 Paper pusher upper sensor (Q12-
092)/Paper pusher lower sensor
(Q12-094) (REP 12.54-171)
17 – Stapler gate safety switch (S12-
319) (P/O PL 12.115 Item 22)
18 – Sensor screw (P/O PL 12.115 Item
22)
19 – Sensor assembly bracket (P/O PL
12.115 Item 22)
20 006K33390 Stacker idler roll (REP 12.10-171)
21 – Pusher dampers (P/O PL 12.115
Item 8)
22 674K03541 Sensor assembly (REP 12.54-171)
23 013E37150 Stacker driving shaft bearing (REP
12.37-171)
24 110K13970 Top cover interlock switch (S12-
197)
25 033K04651 Paddles (A) outer 2 off, (B) inner 3
off (REP 12.101-171)
26 059K69931 Top jam clearance guide assembly
27 013E25800 Copper bearing
28 110K13980 Front door interlock switch (S12-
303)
29 – Lower exit guide (Not spared)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
