Xerox ColorQube 9303 Service Manual

November 2015
5-6
Xerox® ColorQube® 9303 Family
PL 3.11
Parts Lists

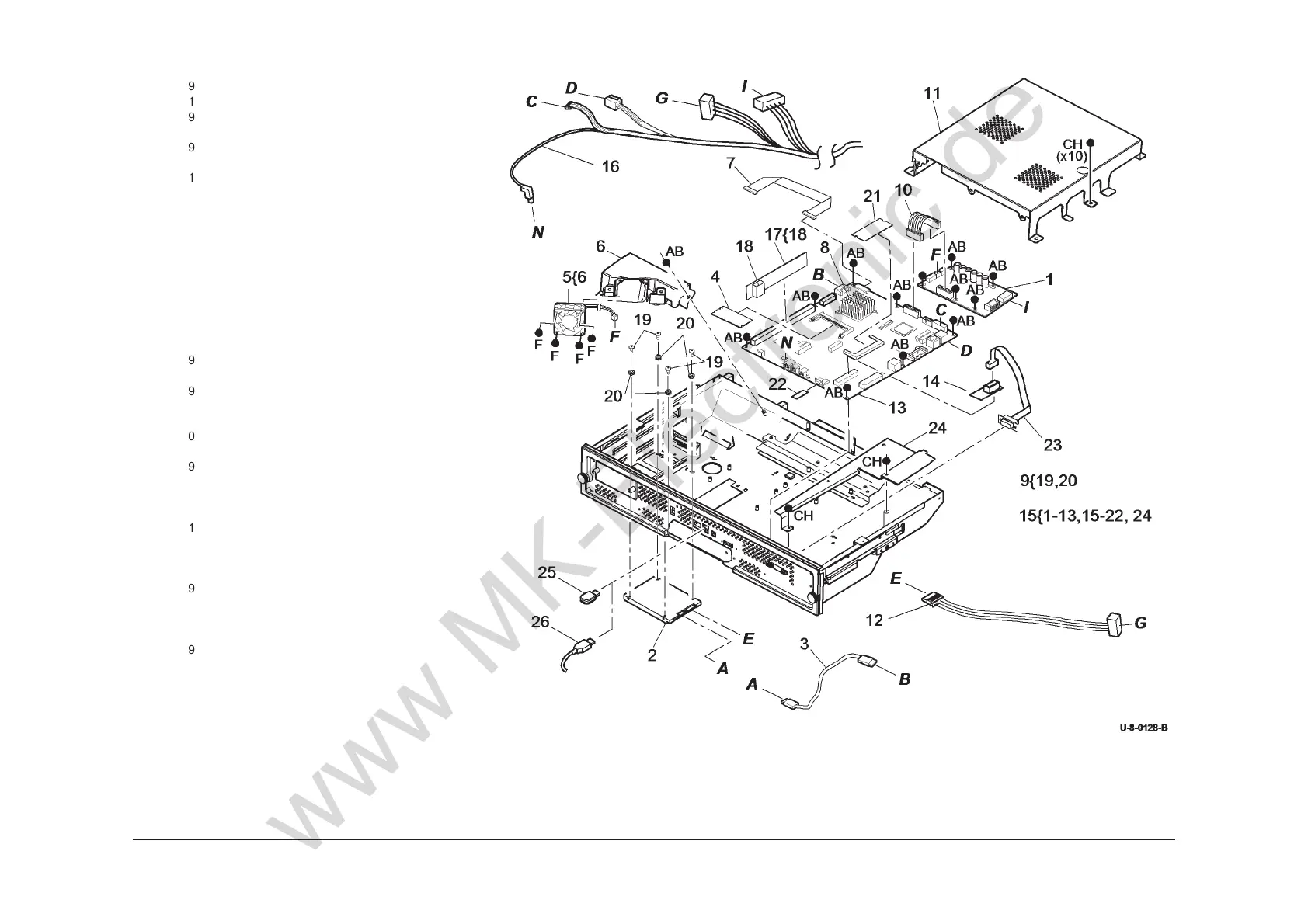

PL 3.11 Image Processing Module
Item Part Description
1
960K66423 Power distribution PWB
2 121E27751 Hard disk drive (REP 3.8)
3 960K66471 Hard disk drive/Single board
controller PWB harness (PJ222)
4 960K95240 System memory PWB (DDR2 1GB)
(PJ10)
5 127K68673 Chassis fan assembly
6 – Inner fan duct (P/O PL 3.11 Item 5)
7 – Fax connector PWB ribbon cable
(PJ49) (Not spared)
8 – Heatsink assembly (Not spared)
9 – Hard disk drive damper kit (P/O PL
3.11 Item 15)
10 – PDB to SBC harness (PJ17) (Not
spared) (PJ17)
11 – PWB Cover
12 – Hard disk drive power harness
(PJ3) (P/O PL 3.11 Item 15)
13 960K66414 Single board controller PWB (REP
3.7)
14 960K27451 Foreign device interface PWB
15 – Single board controller PWB
module (Not spared)
16 012E21850 SBC drawer service loop harness
(PJ1, PJ13, PJ14, PJ20, PJ604)
17 960K66435 NVM module PWB (W/O TAG 020)
(REP 3.9)
– – NVM module PWB (P/O PL 31.13
Item 8) (W/TAG 020)
18 105K36240 Battery
19 – Shoulder screw (P/O PL 3.11 Item
9)
20 – Grommet (P/O PL 3.11 Item 9)
21 960K66450 EPC memory PWB (DDR 1GB)
(U98)
22 – Product enablement key (SIM) (P/
O PL 31.12 Item 2)
23 952K00240 Foreign device interface harness
(PJ16)
24 – Harness guide plate
25 – Wireless network adapter (P/O PL
31.11 Item 4)
26 – Extension cable (P/O PL 31.11
Item 4)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
