Xerox ColorQube 9303 Service Manual

November 2015
5-5
Xerox® ColorQube® 9303 Family
PL 2.10
Parts Lists

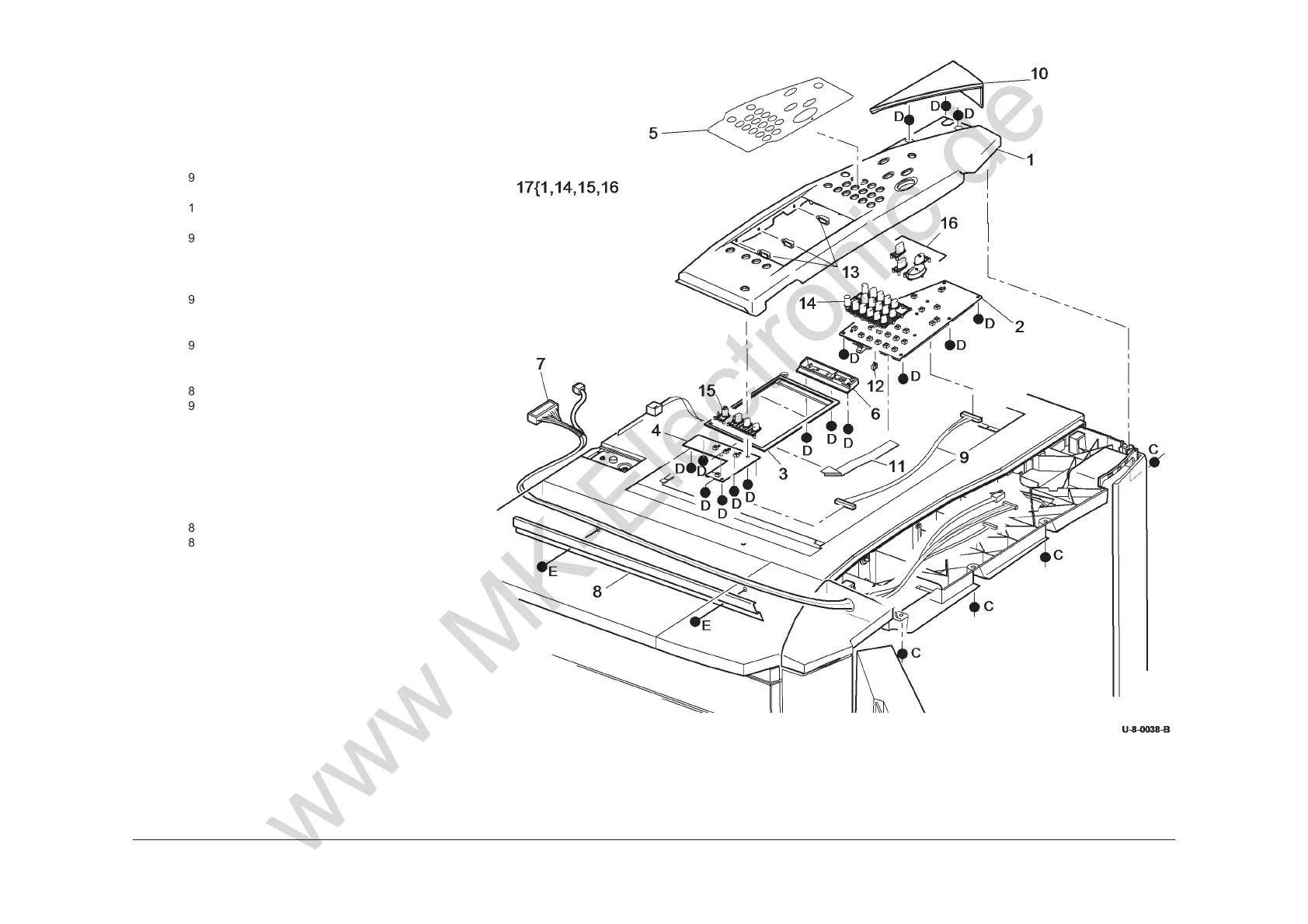

PL 2.10 User Interface
Item Part Description
1
– User interface control panel
housing (XE) (P/O PL 2.10 Item
17)
– – User interface control panel
housing (USSG/XCL) (P/O PL 2.10
Item 17)
2 960K66482 User interface control PWB (REP
2.3)
3 123K08482 User interface touch screen (REP
2.2)
4 960K52291 User interface status PWB
5 – French/Canadian overlay label (P/
O PL 31.11 Item 8)
6 – Retainer touch screen (Not spared)
7 952K00890 User interface harness (PJ19 to
PJ905, PJ223 to PJ900)
8 – UI harness cover (Not spared)
9 962K76550 User interface control PWB to user
interface status PWB harness
(PJ907 to PJ908)
10 848E40401 UI inlay
11 962K76560 LCD to PWB harness
12 – Harness clip (Not spared)
13 – User interface harness clip (P/O PL
31.10 Item 12)
14 – Numeric keys (P/O PL 2.10 Item
17)
15 – Service keys (P/O PL 2.10 Item 17)
16 – Power keys (P/O PL 2.10 Item 17)
17 848K31214 UI plastic housing (XE) (REP 2.1)
– 848K31224 UI plastic housing (USSG/XCL)
(REP 2.1)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
