November 2015
5-70
Xerox® ColorQube® 9303 Family
PL 62.10
Parts Lists

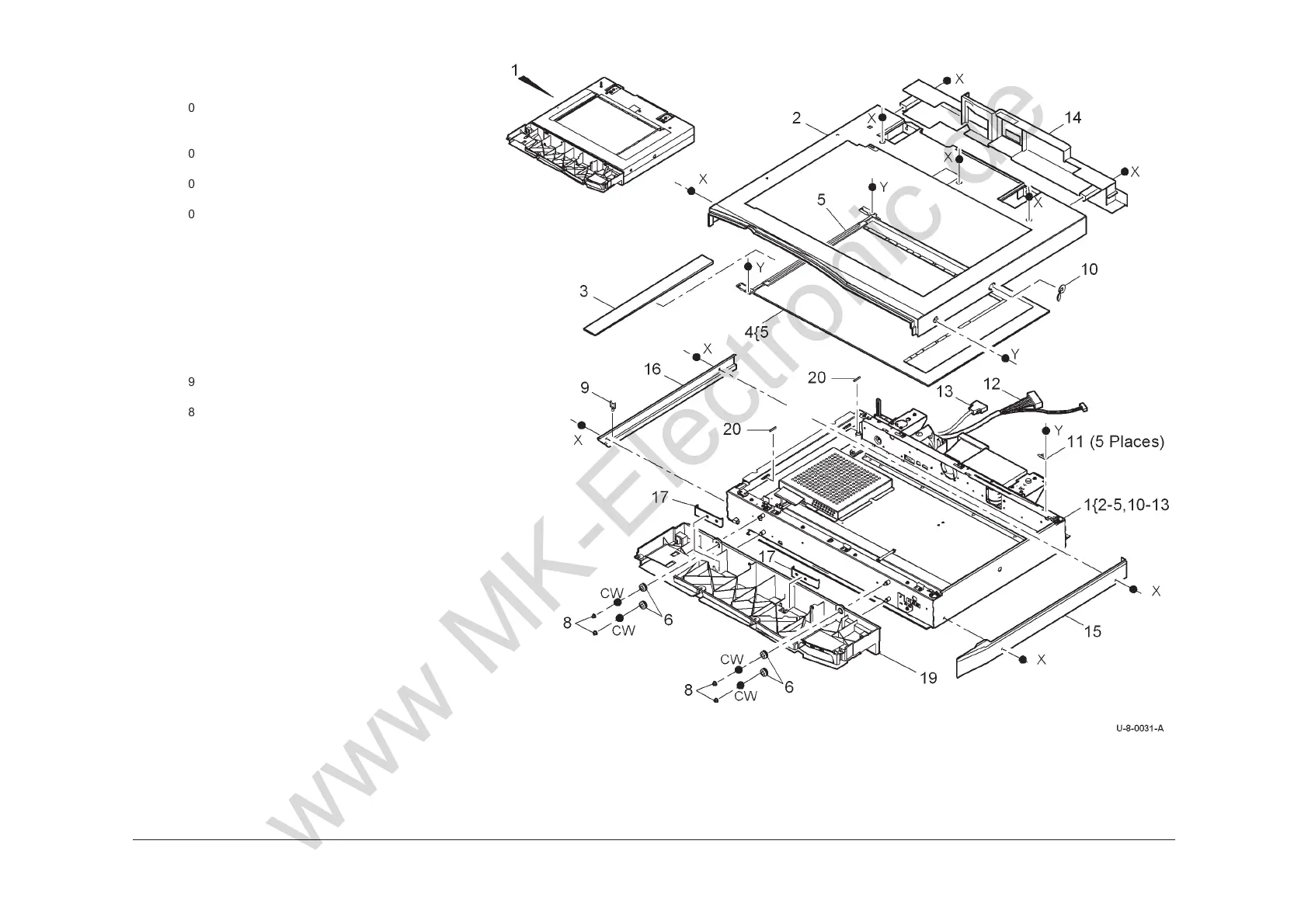

PL 62.10 Scanner Module, CVT/
D
ocument Glass
Item Part Description
1
062K28328 Scanner module (REP 62.1)
2 Top cover (P/O PL 62.10 Item 1)
(REP 62.2, ADJ 62.4)
3 090E02581 CVT Glass (See NOTE) (REP
62.3)
4 090K02560 Document glass assembly (REP
62.3)
5 032K09770 CVT Ramp assembly (REP 62.3)
6 Grommet (Not spared)
7 Not used
8 Nut (Not spared)
9 Harness clamp (Not spared)
10 Top cover plug (Not spared)
11 Document glass securing bracket
(P/O PL 62.10 Item 1)
12 DADH/IIT power comms harness
(REF: PL 62.16 Item 7) (PJ8,
PJ18, PJ920)
13 952K00382 IIT video/SBC PWB harness (PJ15,
PJ922)
14 848E69071 Scanner rear cover
15 Scanner side cover (RH)
16 UI harness cover (Not spared)
17 Latch plate (Not spared)
18 Not used
19 UI Base (Not spared) (REP 2.1)
20 Rubber stop (Not spared)
NOTE: 1. Refer to ADJ 62.1 for the optics cleaning
procedure.
