Xerox ColorQube 9303 Service Manual

November 2015
5-84
Xerox® ColorQube® 9303 Family
PL 75.70
Parts Lists

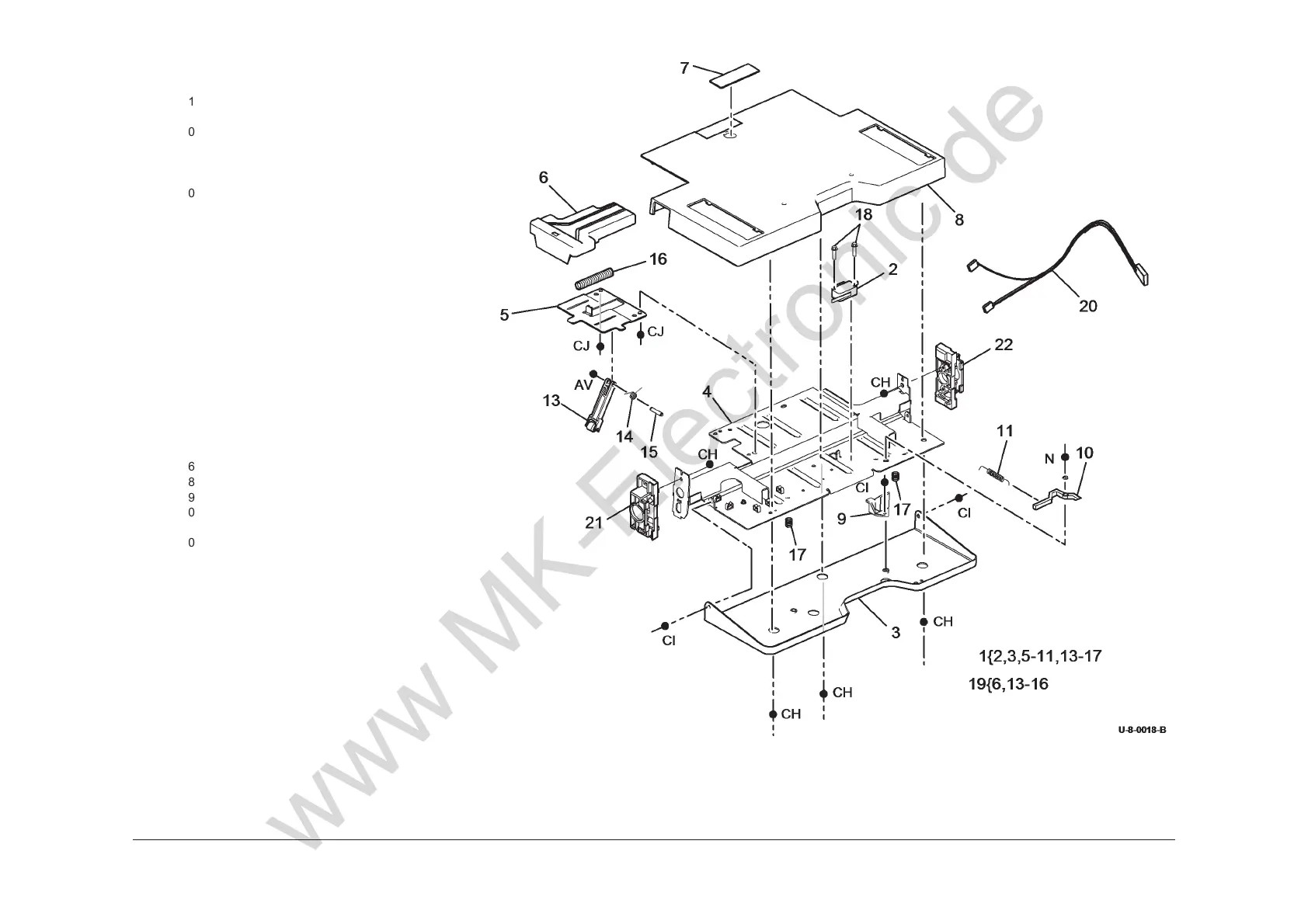

PL 75.70 Tray 5 Lift Assembly (2 of 2)
Item Part Description
1
– Tray lift assembly (Not spared)
2 110E06961 Tray down limit switch (S75-415)
(REP 75.6)
3 025E06871 Lower safety bar
4 – Lift plate (Not spared)
5 – Fixing plate (Not spared)
6 – Infill plate (P/O PL 75.70 Item 19)
7 019K13470 Cork pad
8 – Tray lift top cover (Not spared)
9 – Lift plate crash bar actuator 2 (Not
spared)
10 – Lift plate crash bar actuator 1 (Not
spared)
11 – Crash bar actuator spring (Not
spared)
12 – Not used
13 – Infill actuator arm (P/O PL 75.70
Item 19)
14 – Infill actuator arm spring (P/O PL
75.70 Item 19)
15 – Infill actuator arm pin (P/O PL 75.70
Item 19)
16 – Infill plate spring (P/O PL 75.70
Item 19)
17 – Lower safety spring (Not spared)
18 612W25655 Tray down limit switch screw
19 815K11380 Infill plate assembly
20 962K50461 Tray 5 elevator harness (PJ504)
21 032E29800 Rear elevator tray guide (REP
75.11)
22 032E29790 Front elevator tray guide (REP
75.11)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
