Xerox ColorQube 9303 Service Manual

November 2015
5-104
Xerox® ColorQube® 9303 Family
PL 93.10
Parts Lists

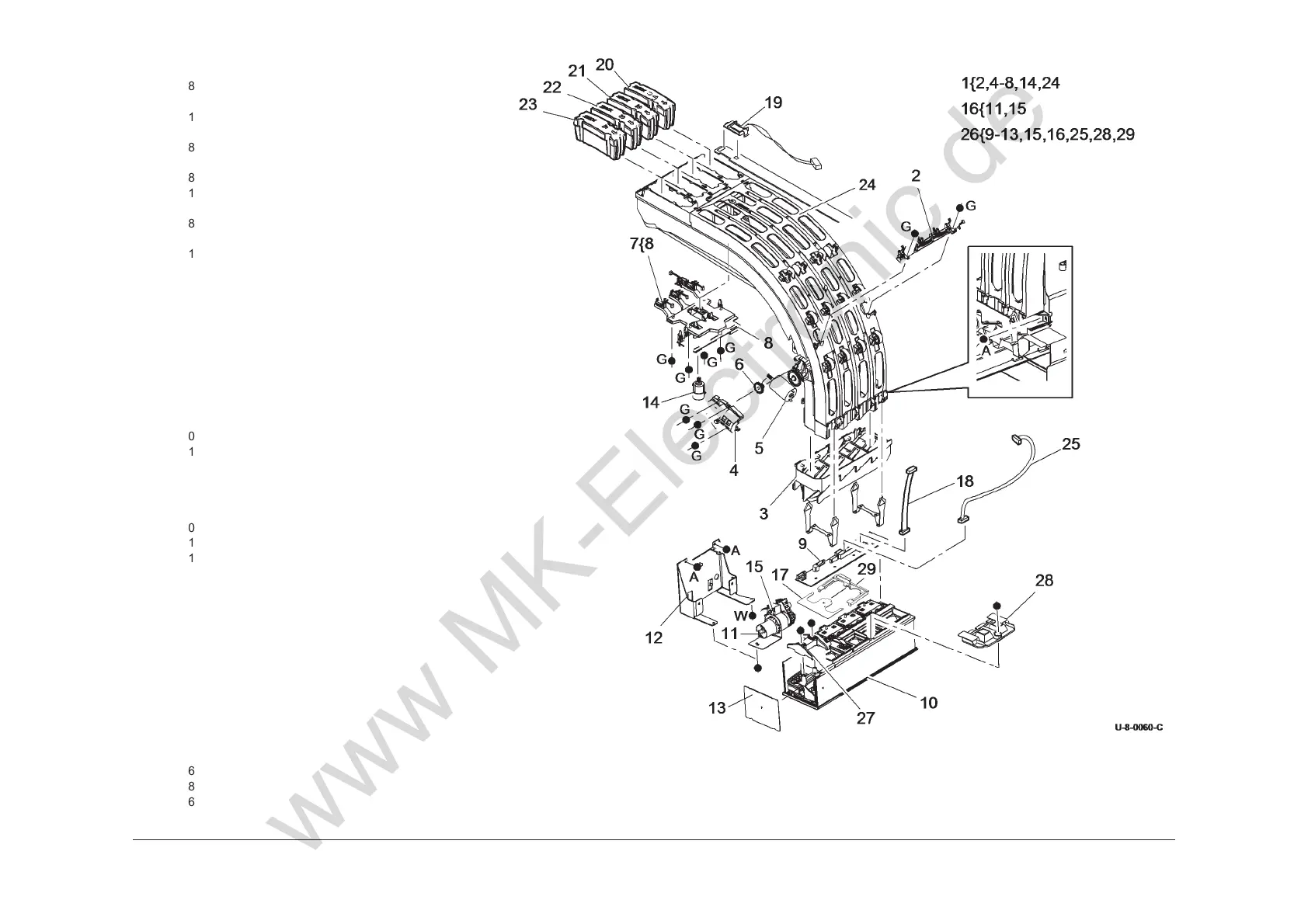

PL 93.10 Ink Loader Assembly
Item Part Description
1
815K11623 Ink loader upper assembly (REP
91.15)
2 130K15852 Ink low sensor assembly (REP
91.19)
3 815K11610 Ink loader melt plate assembly
(REP 91.16)
4 848E34260 Ink transport drive cover
5 127K62270 Ink transport motor (MOT93-048)
(REP 91.18)
6 807E29020 Ink transport drive gear (REP
91.18)
7 130K15870 Ink load sensor assembly (REP
91.17)
8 – Ink load entry PWB (P/O PL 93.10
Item 7) (REP 91.17)
9 – Solenoid patch PWB (P/O PL 93.10
Item 26)
10 – Ink reservoir (P/O PL 93.10 Item
26) (REP 91.20)
11 – Reservoir pump (MOT93-050) (P/
O PL 93.10 Item 16) (REP 91.21)
12 – Reservoir mounting bracket (P/O
PL 93.10 Item 26)
13 057E03690 Side insulation
14 127K62310 Ink keyplate motor (MOT93-051)
15 – LPA valve solenoid (SOL91-045)
(P/O PL 93.10 Item 16)
16 – Reservoir pump assembly (P/O PL
93.10 Item 26)
17 057E03700 Umbilical end insulation
18 117E35640 Ink level sensor cable (PJ760)
19 130E12930 Ink loader door switch (S93-025)
20 – Magenta solid ink stick (REF: PL
26.10 Item 7)
21 – Cyan solid ink stick (REF: PL 26.10
Item 8)
22 – Yellow solid ink stick (REF: PL
26.10 Item 9)
23 – Black solid ink stick (REF: PL 26.10
Item 10)
24 – Ink loader housing (P/O PL 93.10
Item 1)
25 – Harness, Solenoid patch PWB to
Marking unit heater PWB (PJ630 to
PJ801) (P/O PL 93.10 Item 26)
26 604K67924 Ink reservoir assembly (REP 91.20)
27 819E15800 Umbilical clamp (REP 91.31)
28 604E95090 Ink reservoir cover (W/TAG 019)
29 – Retaining clip (Not spared)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
