Xerox ColorQube 9303 Service Manual

November 2015
5-99
Xerox® ColorQube® 9303 Family
PL 91.10
Parts Lists

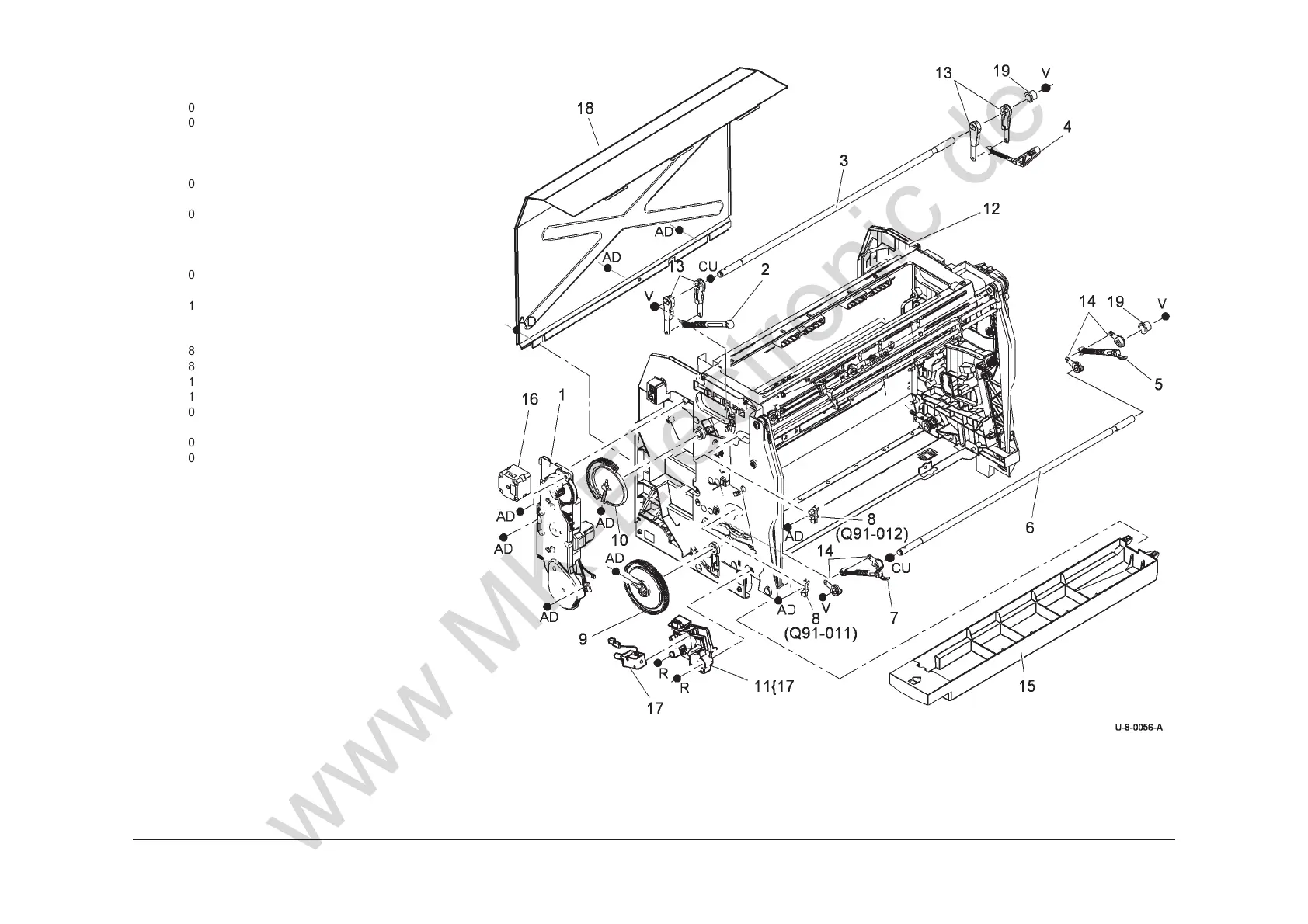

PL 91.10 Marking Unit Drive
A
ssembly
Item Part Description
1
041K06600 Carriage drive train (REP 91.1)
2 012K06940 Upper front compliant link (REP
91.8)
3 – Upper carriage drive shaft (Not
spared) (REP 91.8)
4 012K06950 Upper rear compliant link (REP
91.8)
5 012K06930 Lower rear compliant link (REP
91.10)
6 – Lower carriage drive shaft (Not
spared) (REP 91.10)
7 012K06920 Lower front compliant link (REP
91.10)
8 130E12970 Lower carriage home sensor (Q91-
011)/Upper carriage home sensor
(Q91-012)
9 807E29030 Lower carriage drive gear
10 807E29040 Upper carriage drive gear
11 120K03490 Waste tray lock solenoid assembly
12 116K00812 Marking unit enclosure (frame only)
13 011K03140 Upper carriage crank (See NOTE)
(REP 91.8)
14 011K03130 Lower carriage crank (See NOTE)
15 050E28780 Waste tray
16 – Carriage docking motor (MOT 91-
031) (P/O PL 91.10 Item 1)
17 – Waste tray lock solenoid (SOL91-
044) (P/O PL 91.10 Item 11)
18 – Marking unit enclosure cover (Not
spared)
19 – Carriage drive bushing (P/O PL
31.11 Item 23)
NOTE: If an entire crank (PL 91.10 Item 13 or PL 91.10 Item
14 ) needs to be replaced then 2 parts need to be ordered.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
