Xerox ColorQube 9303 Service Manual

November 2015
5-100
Xerox® ColorQube® 9303 Family
PL 91.15
Parts Lists

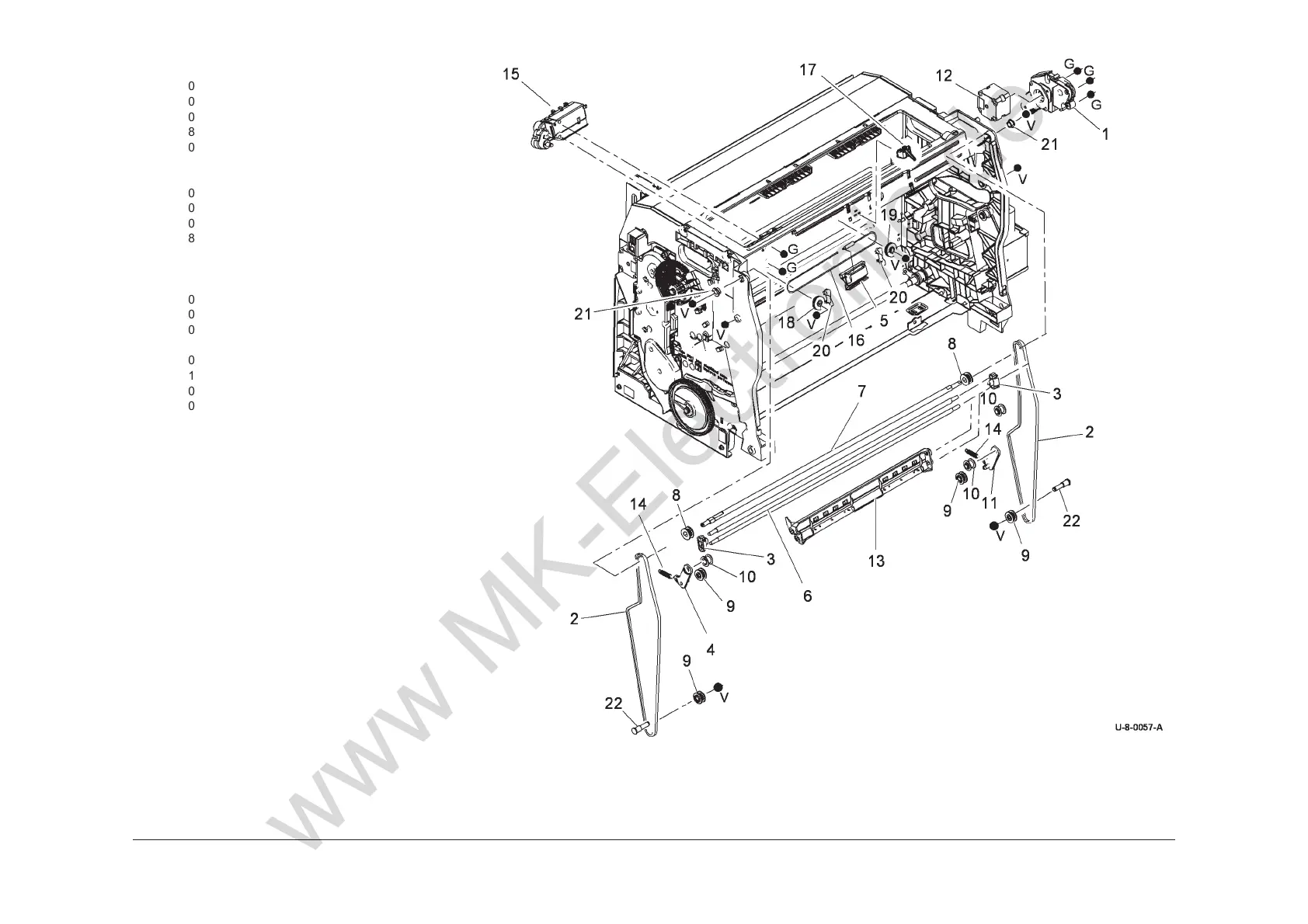

PL 91.15 Marking Unit Belt and Drive
Item Part Description
1
007K19800 Vertical gearbox (REP 91.2)
2 023E31420 HM belt (REP 91.5)
3 019E80820 HM belt clip (REP 91.5)
4 801E11470 Front tensioner base (REP 91.4)
5 033K04550 Horizontal drive paddle
6 – Horizontal drive shaft (Not spared)
7 – Upper drive shaft (Not spared)
8 020K20630 Drive pulley
9 020K20470 Belt pulley
10 022E38380 Tensioner pulley
11 801E11480 Back tensioner base (REP 91.4)
12 – HM vertical motion motor (MOT91-
023) (P/O PL 91.15 Item 1) (REP
91.2)
13 033K04560 HM wiper (REP 91.3)
14 009K02440 HM tensioner spring
15 007K19790 HM Horizontal motion motor
(MOT91-025) (REP 91.6)
16 023K01420 Horizontal drive cable
17 130E18200 HM position sensor (Q91-014)
18 020K20560 HM drive pulley
19 020K20570 HM idler pulley
20 – HM drive cable stop (Not spared)
21 – Bearing (Not spared)
22 – Belt pulley shaft (Not spared)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
