Xerox ColorQube 9303 Service Manual

November 2015
5-38
Xerox® ColorQube® 9303 Family
PL 12.125
Parts Lists

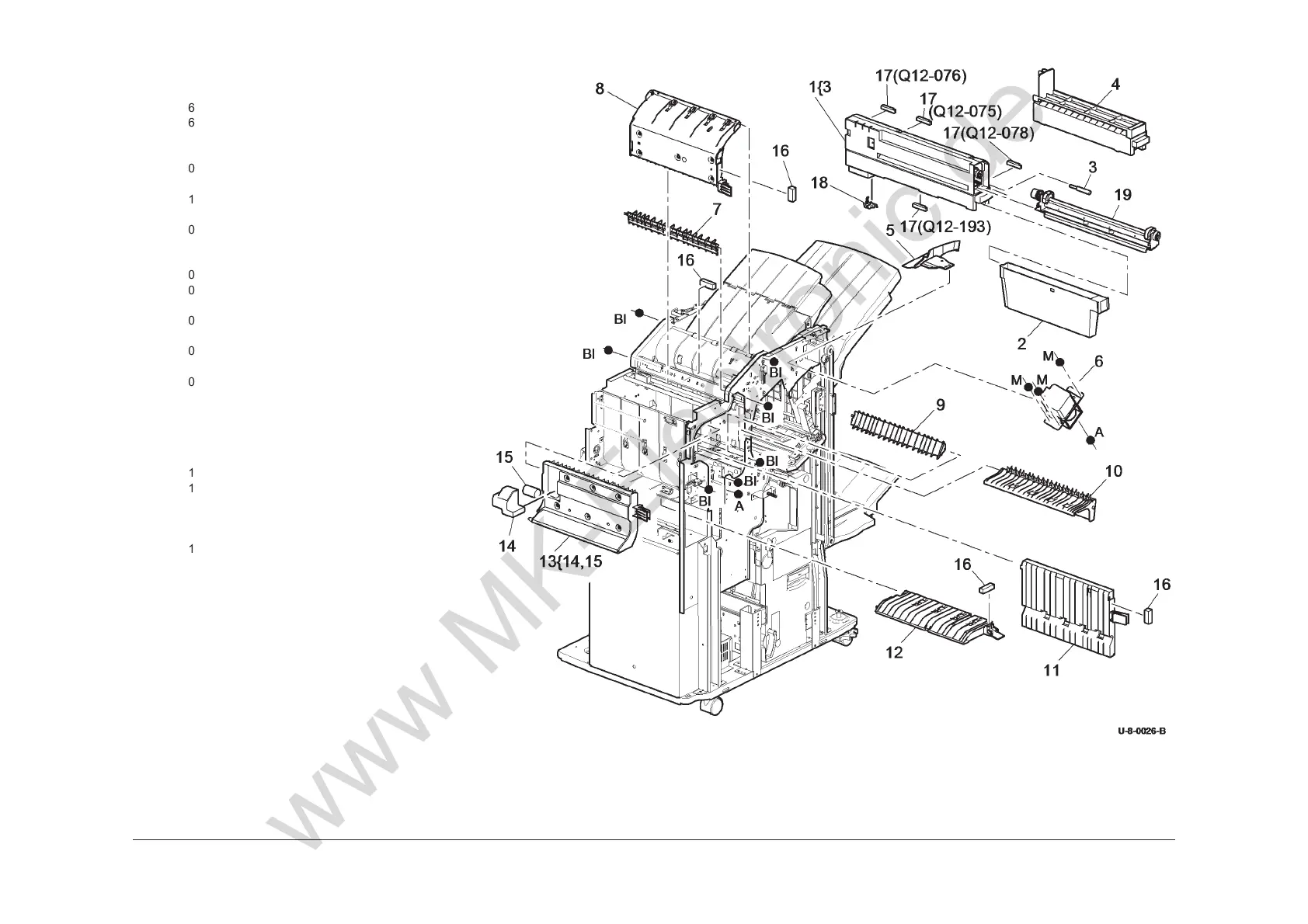

PL 12.125 HVF Feed Assembly and
P
unch (1 of 3)
Item Part Description
1
604K55211 HVF hole punch carrier assembly
2 604K83750 HVF chad bin
3 – Hole punch thumb screw (P/O PL
12.125 Item 1)
4 059K59551 Hole punch blanking assembly
5 – Front tamper arm (Not spared)
6 127K62570 Front tamper motor assembly
(MOT12-226) (REP 12.11-171)
7 038E41350 Diverter exit gate (REP 12.35-171)
8 – Upper exit guide (5c) (Not spared)
(REP 12.14-171)
9 038E41341 BM diverter gate (REP 12.39-171)
10 059K69950 Buffer pocket jam clearance guide
(REP 12.33-171)
11 059K69981 Inserter jam clearance guide
assembly (8a) (REP 12.34-171)
12 059K69961 Input jam clearance guide (5a)
(REP 12.32-171)
13 059K69973 Buffer guide assembly (5b) (REP
12.31-171)
14 – Nip split motor cover (P/O PL
12.125 Item 13)
15 – Nip split motor (MOT12-264) (P/O
PL 12.125 Item 13)
16 121K45300 Magnet
17 130E12810 Chad bin level sensor (Q12-193)/
Punch sensor 1 (Q12-078)/Punch
sensor 2 (Q12-075)/Punch sensor
3 (Q12-076)
18 130E12840 Chad bin present sensor (Q12-118)
19 – Hole punch module (P/O PL 31.10
Item 5)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
