Xerox ColorQube 9303 Service Manual

November 2015
5-12
Xerox® ColorQube® 9303 Family
PL 5.35
Parts Lists

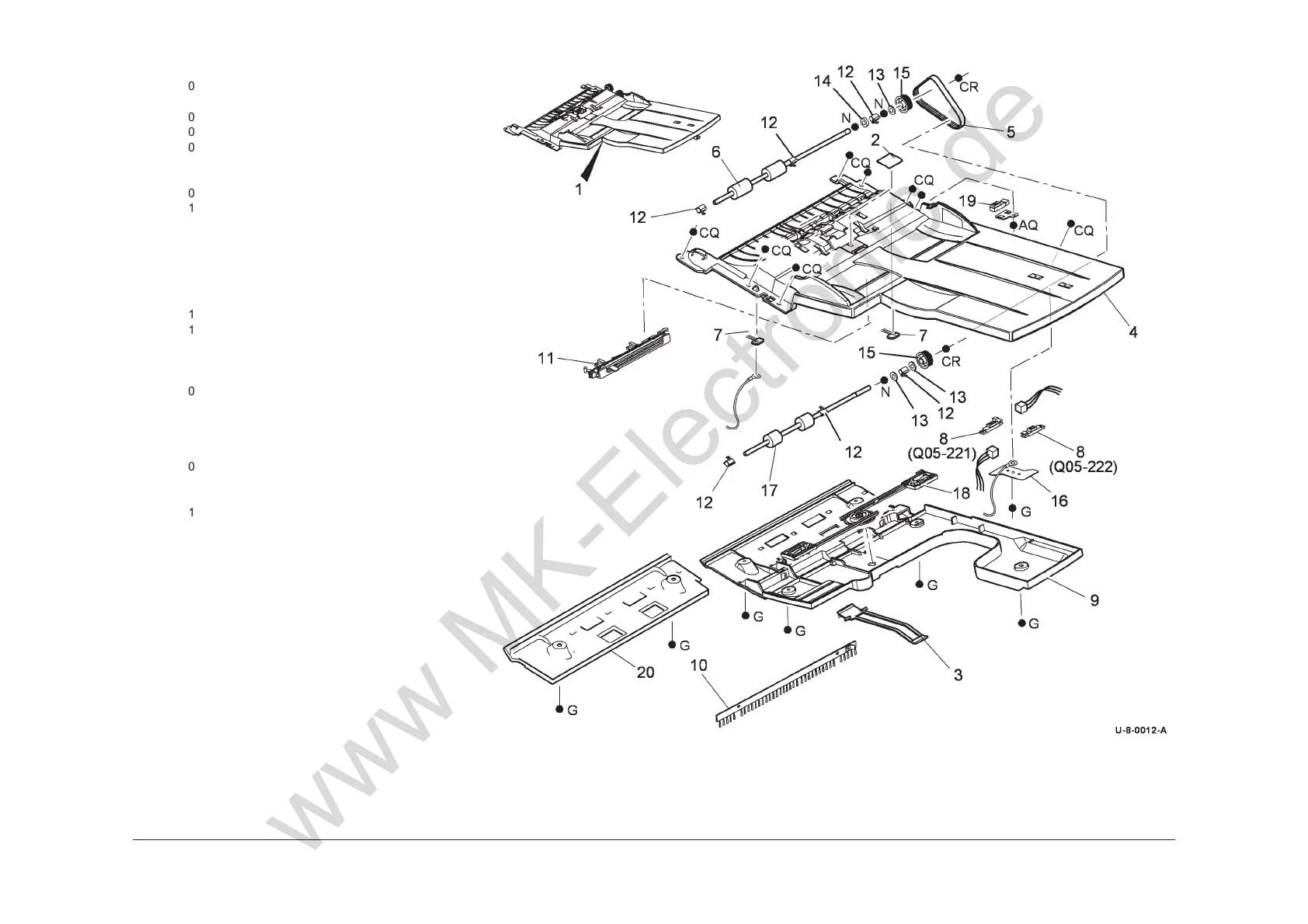

PL 5.35 Input Tray Assembly
Item Part Description
1
050K67466 Input tray assembly (complete)
(REP 5.4)
2 004K00971 Pad
3 031E11310 Restack arm
4 050E22922 Input tray
5 – Feed motor drive belt (86T) (Not
spared) (ADJ 5.1)
6 059K84630 Takeaway roll assembly (REP 5.6)
7 125E00430 Static eliminator (small) (REP 5.17)
8 – DADH Tray size sensor 1 (Q05-
221)/DADH Tray size sensor 2
(Q05-222) (P/O PL 31.11 Item 17)
(See NOTE) (REP 5.9)
9 – Lower cover (right) (P/O PL 5.35
Item 1)
10 115K02540 Static eliminator (large)
11 103K01511 DADH width sensor
(Potentiometer) (Q05-095) (REP
5.16)
12 – Bearing (P/O PL 5.35 Item 1)
13 014E61020 Spacer (black)
14 – Nylon washer (P/O PL 5.35 Item 1)
15 – Pulley (P/O PL 5.35 Item 1)
16 – Sensor bracket (P/O PL 5.35 Item
1)
17 059K43920 Exit roll assembly (REP 5.13)
18 – Input guide rack assembly (P/O PL
5.35 Item 1)
19 130E11200 DADH Document sensor (Q05-102)
20 – Lower cover (left) (P/O PL 5.35
Item 1)
NOTE: This item is also supplied as a pair as a kit PL 31.11
Item 17.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
