Xerox ColorQube 9303 Service Manual

November 2015
5-33
Xerox® ColorQube® 9303 Family
PL 12.105
Parts Lists

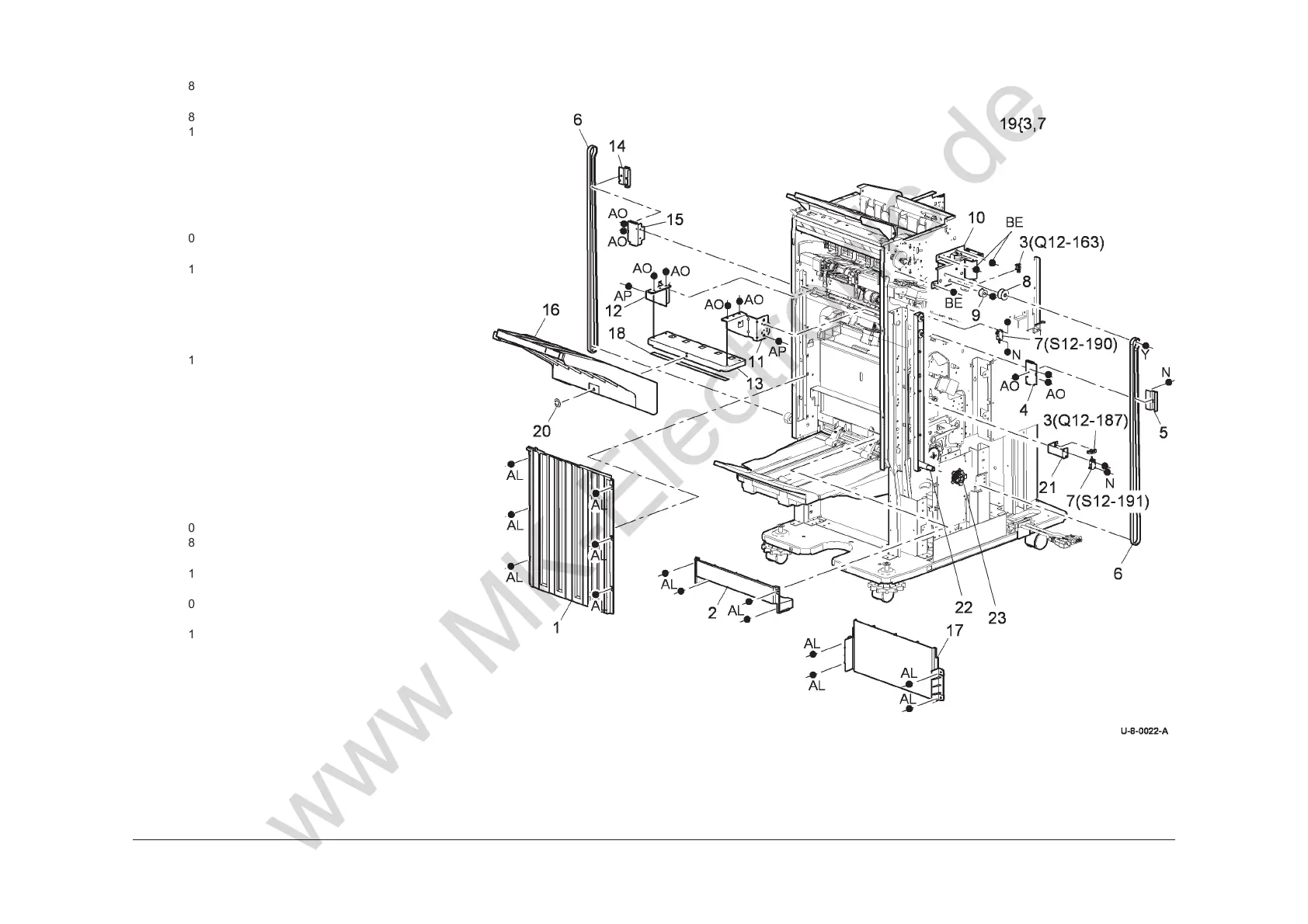

PL 12.105 HVF Stacker
Item Part Description
1
848E40530 Upper right side cover (REP 12.5-
171)
2 848E17840 Lower right side cover
3 130E12830 Bin 1 90% full sensor (Q12-187)/
Bin 1 motor encoder sensor (Q12-
163)
4 – Rear main belt clamp (1 of 2) (Not
spared)
5 – Rear main belt clamp (2 of 2) (Not
spared)
6 023E31220 Bin 1 main drive belt (REP 12.38-
171)
7 110K20890 Bin 1 upper limit switch (REP
12.75-171) (S12-190)/Bin 1 lower
limit switch (REP 12.75-171) (S12-
191)
8 – Main belt pulley (Not spared)
9 – Main belt tensioner (Not spared)
10 127K56592 Bin 1 elevator motor assembly
(MOT12-241) (REP 12.12-171)
11 – Bin 1 rear lift bar bracket (Not
spared)
12 – Bin 1 front lift bar bracket (Not
spared)
13 – Bin 1 lift bar (Not spared)
14 – Front main belt clamp (2 of 2) (Not
spared)
15 – Front main belt clamp (1 of 2) (Not
spared)
16 050E28941 Bin 1 (REP 12.4-171)
17 848E17830 Middle right side cover
18 – Bin 1 lift bar brace (Not spared)
19 110K20880 Stacker full sensor and lower limit
switch assembly (REP 12.75-171)
20 019K13380 Bin 1 retaining clip (REP 12.4-171)
21 – Sensor/switch bracket (Not spared)
22 110K21060 Stacker channel bracket
23 – Pulley (P/O PL 12.105 Item 22)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
