Xerox ColorQube 9303 Service Manual

November 2015
5-67
Xerox® ColorQube® 9303 Family
PL 31.11
Parts Lists

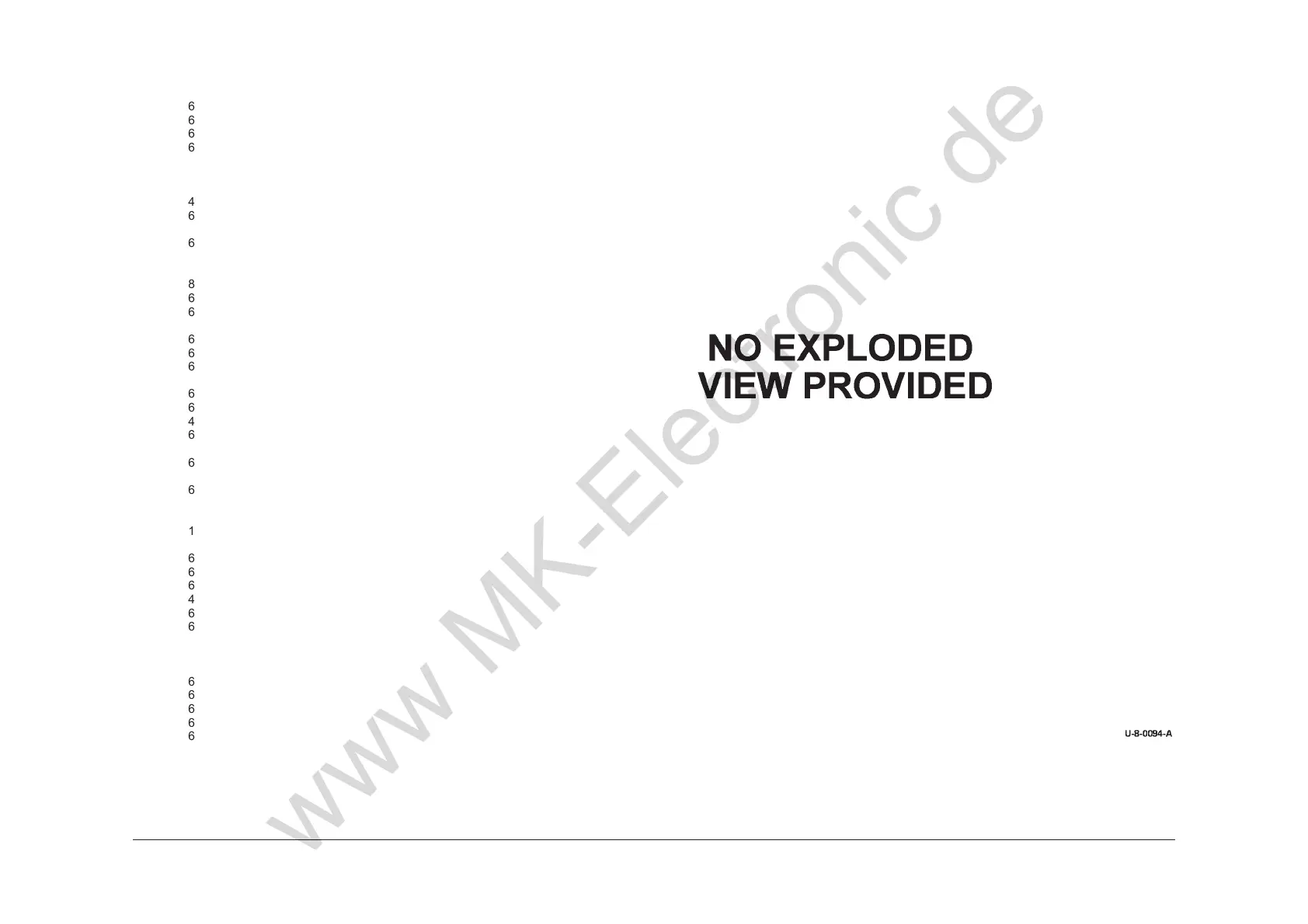

PL 31.11 Maintenance/Installation/
R
emoval Kits (2 of 4)
Item Part Description
1
604K54580 OCT centre registration kit
2 604K41411 LCSS Front cover Kit
3 604K35700 Convenience stapler kit (XE)
– 604K35710 Convenience stapler kit (USSG/
XCL)
4 – Wireless network adapter kit (Not
spared)
5 497K04690 Tri-folder install kit (complete)
6 604K73060 LCSS paddle assembly kit (W/TAG
F-016)
7 607K10870 Registration/Pre-heat pump kit
(Contains 2 air pumps) (W/O TAG
018)
8 897E31770 French/Canadian UI overlay kit
9 604K67940 Drum pulley removal kit
10 604K73400 HVF ejector assembly safety cover
kit
11 604K73340 Drum repair kit
12 604K67130 Tray 3 guide kit
13 604K61410 Wave amp cable and clip kit (Type
A)
14 604K60701 DADH mylar guide kit
15 604K67230 LCSS traverse kit
16 498K17546 Smartcard enablement kit
17 604K62080 DADH sensor replacement kit (D-
007)
18 604K83720 LCSS diverter gate assembly
spares kit
19 604K54990 Nip A replacement kit (Contains 2
drive belts, 2 Nip A rollers and 2 Nip
A pullies)
20 130K75140 LCSS stapler edge registration
sensor kit
21 604K54320 Front transfix linkage and gear kit
22 604K54330 Rear transfix linkage and gear kit
23 604K54100 Hardware kit (see NOTE 2)
24 498K19200 20 Amp adapter kit
25 604K91100 Epoxy dispenser and glasses kit
26 604K55480 Feed roll kit
27 – Install NAT kit (XE) (Not spared)
28 – Install NAT kit (USSG/XCL) (Not
spared)
29 604K61420 Video cable and clip kit (Type A)
30 604K61370 3TM Cable kit
31 604K61710 Tray 3 kit
32 604K61640 Silicon oil removal kit
33 650K33140 UI overlay kit (English)
NOTE: 1: 497/8K part numbers should not be ordered by the
CSE. 497/8K part numbers are customer install kits and are
shown for reference only.
NOTE: 2: Refer to GP 24 for contents of the hardware kit.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
