Xerox ColorQube 9303 Service Manual

November 2015
5-15
Xerox® ColorQube® 9303 Family
PL 10.15
Parts Lists

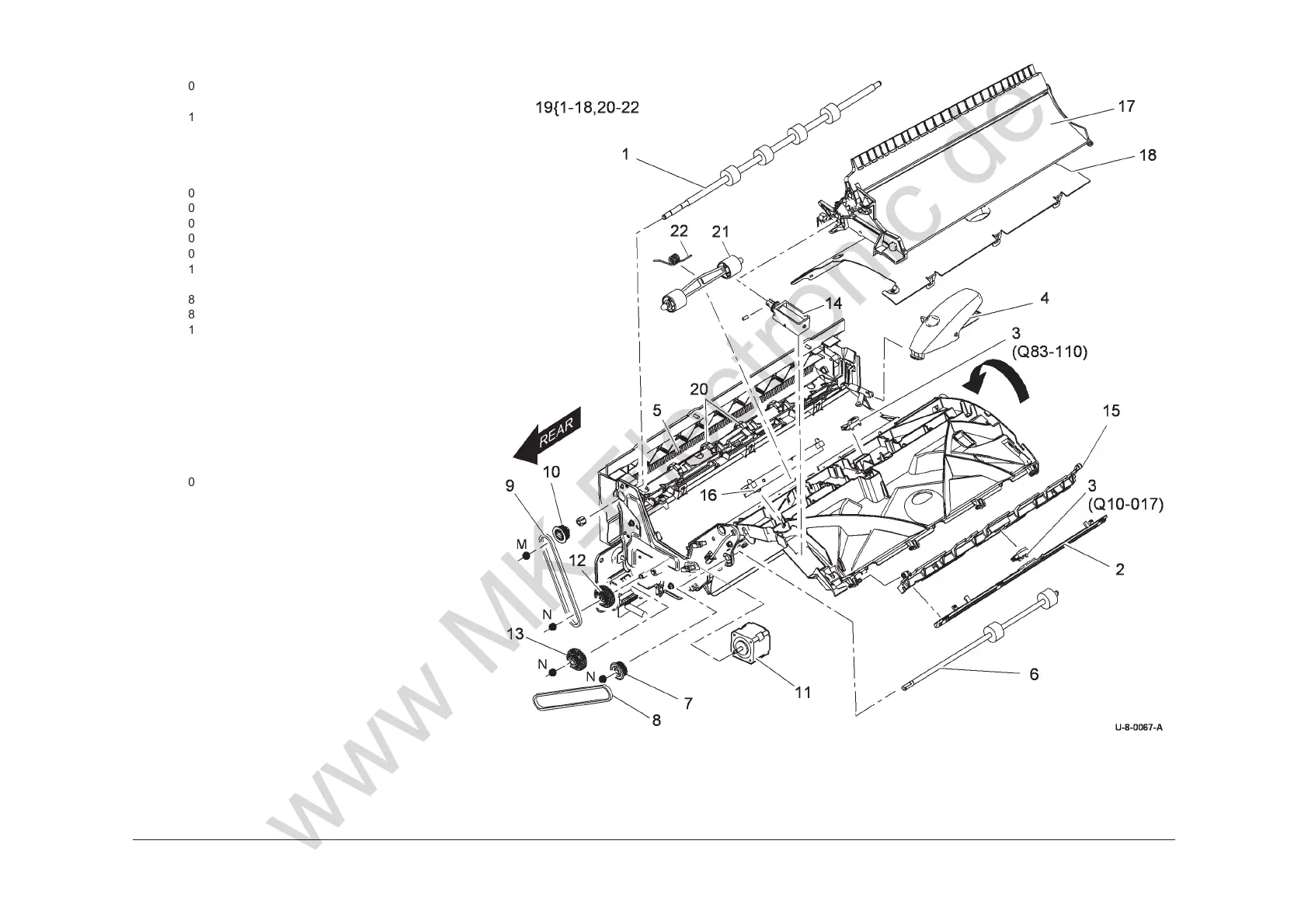

PL 10.15 Exit Paper Path
Item Part Description
1
059E10720 Roller nip 'N' (REP 10.18)
2 – Sensor cover (Not spared)
3 130E12950 Exit sensor (15) (Q10-017) (REP
10.16)/Duplex start sensor (13)
(Q83-110) (REP 10.15)
4 – Handle (Not spared)
5 – Static brush (P/O PL 10.15 Item 19)
6 059E10730 Roller nip 'P' (REP 10.17)
7 020K20480 Pulley 3mm (driven)
8 023E31390 Belt 3mm (112T)
9 023E31400 Belt 3mm (92T)
10 020K20460 Pulley 3mm (21T one way)
11 127E16370 Exit Motor (M5) (MOT83-001)
(REP 10.14)
12 807E28980 Driven compound gear
13 807E28990 Idler compound gear
14 121E26500 Exit/duplex solenoid (SOL83-006)
(REP 10.12)
15 – Upper exit guide (P/O PL 10.15
Item 19)
16 – Exit illuminator PWB (P/O PL 10.15
Item 19) (REP 10.19)
17 – Diverter gate assembly (P/O PL
10.15 Item 19) (REP 10.13)
18 – Top exit baffle (P/O PL 10.15 Item
19)
19 038K23771 Exit paper path assembly (REP
10.20)
20 – Upper exit idler (P/O PL 10.15 Item
19)
21 – Upper baffle idler (P/O PL 10.15
Item 19)
22 – Upper baffle idler spring (P/O PL
10.15 Item 19)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
