Xerox ColorQube 9303 Service Manual

November 2015
5-34
Xerox® ColorQube® 9303 Family
PL 12.110
Parts Lists

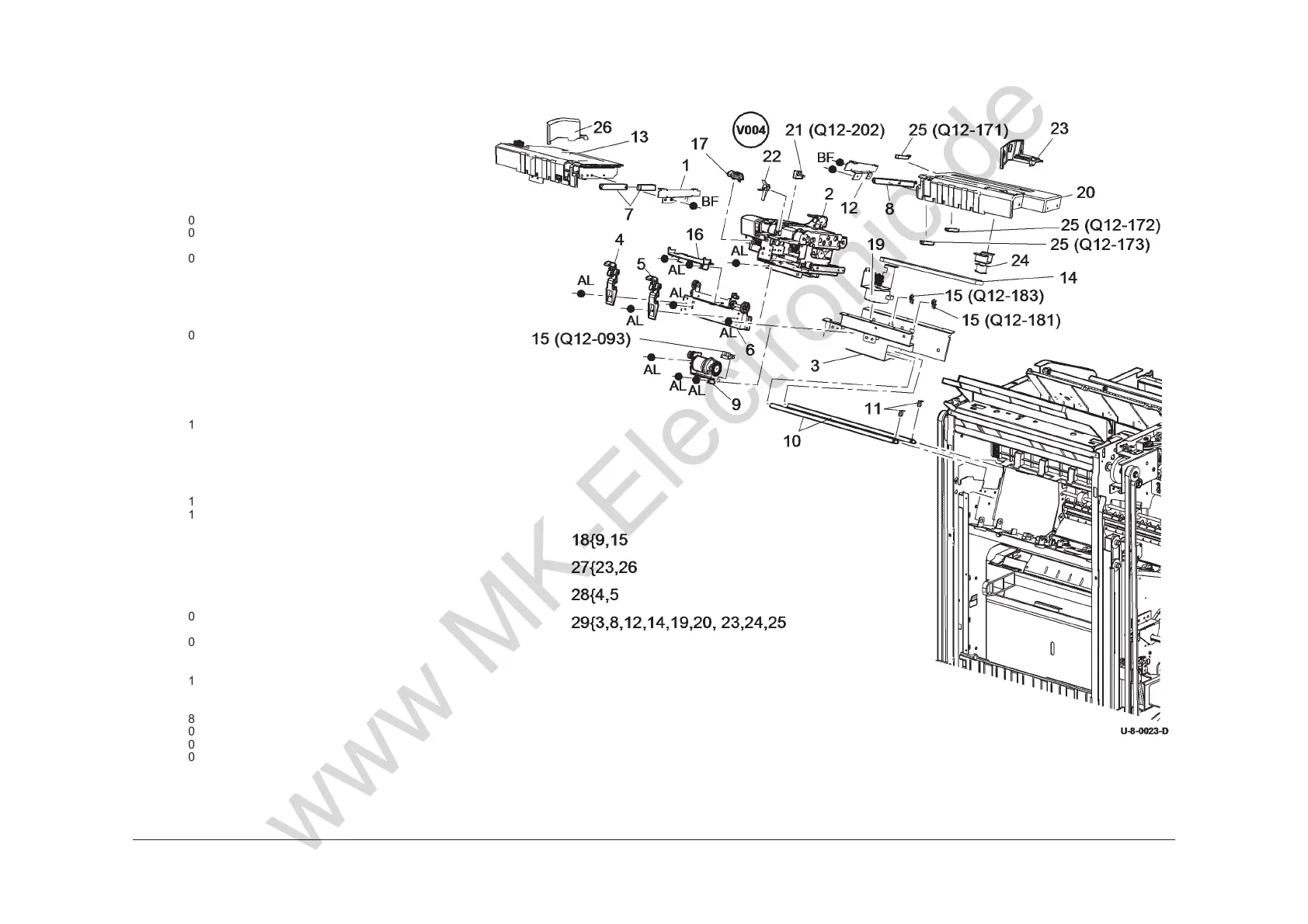

PL 12.110 HVF Ejector, Pressing and
S
upport (1 of 3)
Item Part Description
1
– Front tamper bracket (Not spared)
2 – Ejector assembly (P/O PL 31.13
Item 5) (REP 12.6-171)
3 – Rear tamper support bracket (P/O
PL 12.110 Item 29)
4 – Front pressing plate finger (P/O PL
12.110 Item 28) (REP 12.7-171)
5 – Rear pressing plate finger (P/O PL
12.110 Item 28) (REP 12.7-171)
6 049K23160 Pressing plate bracket
7 003K20653 Front support finger (W/TAG V-009)
(NOTE) (REP 12.8-171)
8 003K20663 Rear support finger (W/TAG V-009)
(NOTE) (REP 12.8-171)
9 – Pressing and support motor
(MOT12-323) (P/O PL 12.110 Item
18)
10 – Offset rod (Not spared)
11 019K13380 Offset rod KL clip
12 – Rear tamper bracket (P/O PL
12.110 Item 29)
13 – Front tamper (Not spared) (REP
12.11-171)
14 – Rear tamper drive belt (P/O PL
12.110 Item 29)
15 130E12830 Pressing and support encoder
sensor (Q12-093)/Rear tamper
away sensor (Q12-183)/Rear
tamper home sensor (Q12-181)
16 – Ejector assembly safety cover (P/O
PL 31.11 Item 10)
17 130K75900 Paper pressing sensor (Q12-322)
18 127K56551 Motor encoder assembly
19 – Rear tamper motor (MOT12-227)
(P/O PL 12.110 Item 29) (REP
12.15-171)
20 – Rear tamper (P/O PL 12.110 Item
29)
21 – Ejector paper present sensor (Q12-
202) (P/O PL 12.110 Item 2)
22 033K04850 Ejector paddle assembly (W/TAG
V-004) (REP 12.100-171)
23 032E35301 Rear tamper arm
24 – Rear tamper pulley (P/O PL 12.110
Item 29)
25 130E12810 Pressing and support sensor A
(Q12-172), B (Q12-171), C (Q12-
173)
26 868E36871 Front tamper arm
27 032E35341 Set of front and rear tamper arms
28 003K21101 Pressing plate kit
29 032K09682 Rear tamper assembly (REP 12.15-
171)
NOTE: If both front and rear support finger assemblies are
needed, then order PL 31.13 Item 4.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
