Xerox ColorQube 9303 Service Manual

November 2015
5-45
Xerox® ColorQube® 9303 Family
PL 12.160
Parts Lists

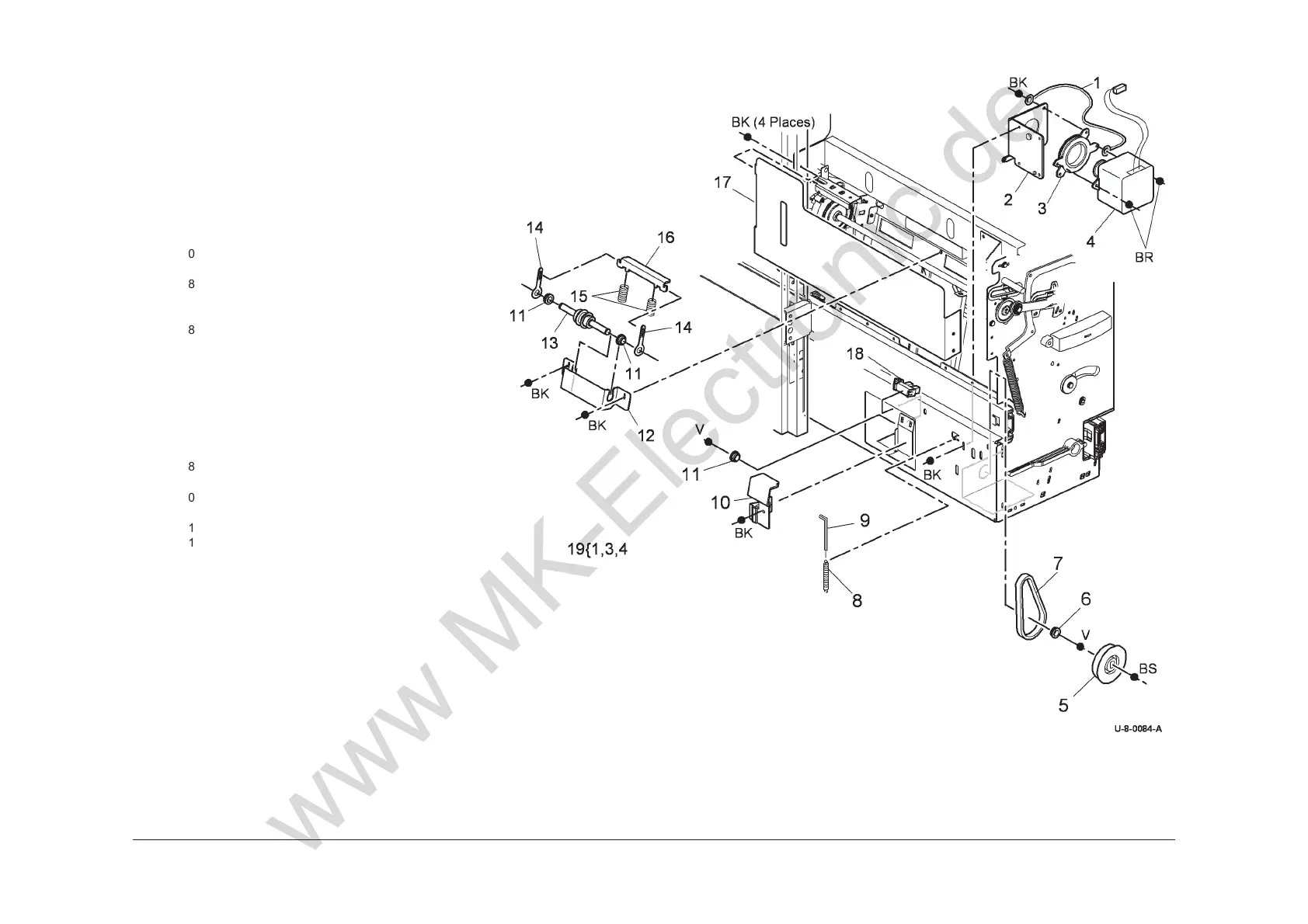

PL 12.160 HVF BM Back Stop Motor
Item Part Description
1
– Ground wire (P/O PL 12.160 Item
19)
2 – Motor bracket (Not spared)
3 – Motor damper (P/O PL 12.160 Item
19) (REP 12.20-171)
4 – BM back stop motor (MOT12-255)
(P/O PL 12.160 Item 19) (REP
12.20-171)
5 – Pulley (Not spared)
6 – BM back stop bearing (Not spared)
(REP 12.26-171)
7 023E23300 BM back stop drive belt (REP
12.20-171)
8 809E78370 BM back stop tensioner spring
(REP 12.20-171)
9 – Allen key (3mm) (Not spared)
10 848E40480 Sensor cover
11 – BM back stop bearing (Not spared)
(REP 12.26-171)
12 – BM back stop idler bracket (Not
spared) (REP 12.26-171)
13 – BM back stop idler shaft (Not
spared)
14 – BM back stop tensioner link (Not
spared)
15 809E25100 BM back stop link spring (REP
12.26-171)
16 012E20870 BM back stop link (REP 12.26-171)
17 – LH frame plate (Not spared)
18 107E22600 BM guide home sensor (Q12-204)
19 127K54710 BM back stop motor assembly
(REP 12.20-171)
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
