Xerox ColorQube 9303 Service Manual

November 2015
5-16
Xerox® ColorQube® 9303 Family
PL 10.20
Parts Lists

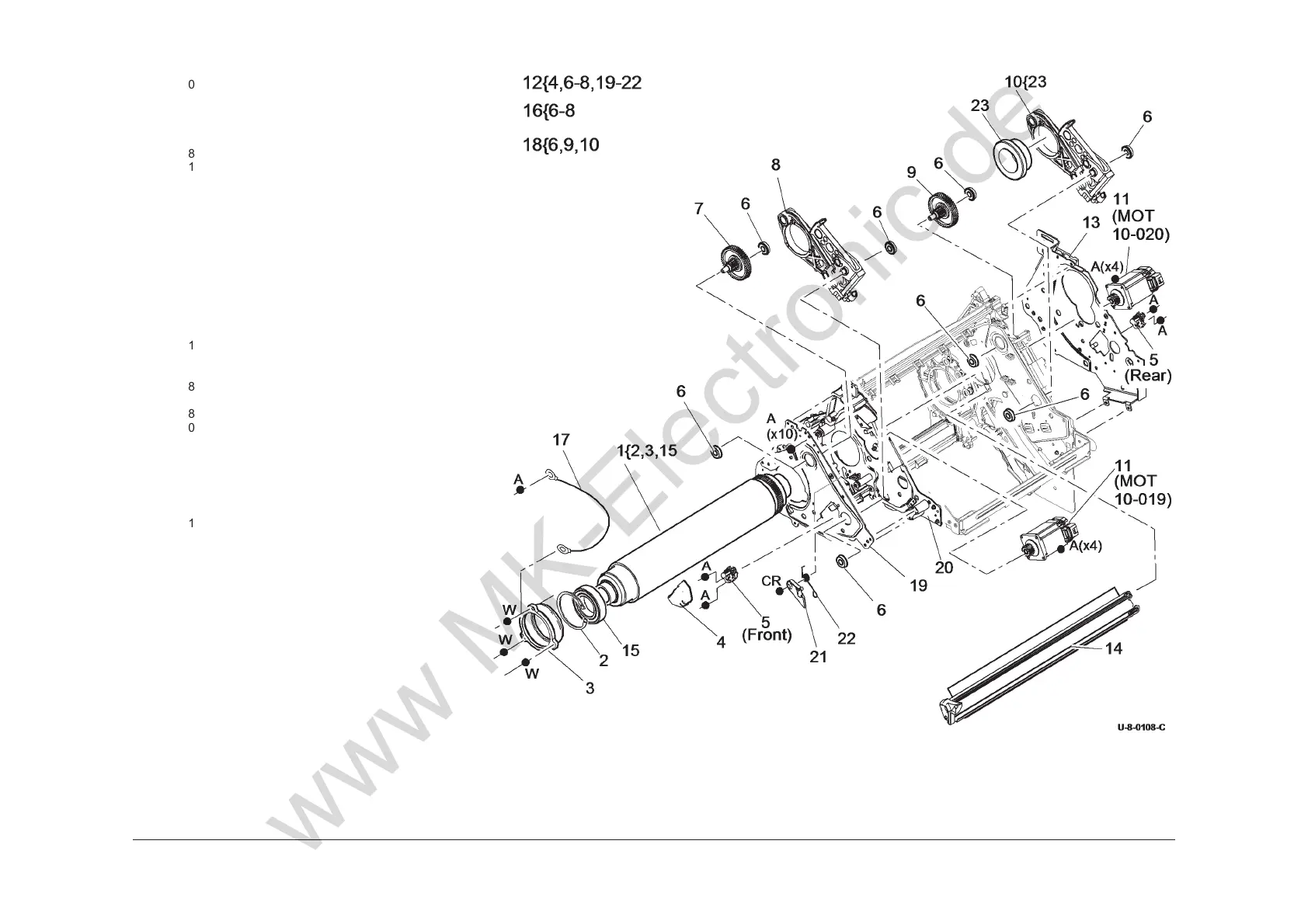

PL 10.20 Transfix Roller Assembly
Item Part Description
1
059K78250 Transfix roller (REP 10.1)
2 – Bearing retainer (P/O PL 10.20
Item 1)
3 – Transfix bearing carrier (P/O PL
10.20 Item 1)
4 848E34280 Transfix encoder cover
5 146K01011 Front transfix flexure encoder/Rear
transfix flexure encoder (REP
10.24)
6 – Bearing (P/O PL 10.20 Item 12)
7 – Front compound gear (P/O PL
10.20 Item 16)
8 – Front transfix linkage assembly (P/
O PL 10.20 Item 16) (REP 10.2)
9 – Rear compound gear (P/O PL
10.20 Item 18) (REP 10.3)
10 – Rear transfix linkage assembly (P/
O PL 10.20 Item 18) (See NOTE 3)
(REP 10.3)
11 127K62320 Front transfix motor (MOT10-019)
(REP 10.4), Rear transfix motor
(MOT10-020) (REP 10.5)
12 801K37690 Front drum frame assembly (REP
10.2)
13 801K37940 Rear outer frame (REP 10.3)
14 041K06800 Transfix stripper assembly (See
NOTE) (REP 10.6)
15 – Front bearing (P/O PL 10.20 Item
1)
16 – Front transfix linkage and gear kit
(REF: PL 31.11 Item 21) (REP
10.2)
17 117E35760 Transfix bearing ground cable
18 – Rear transfix linkage and gear kit
(REF: PL 31.11 Item 22) (REP
10.3)
19 – Front outer frame (P/O PL 10.20
Item 12)
20 – Front inner frame (P/O PL 10.20
Item 12)
21 – Latch (P/O PL 10.20 Item 12)
22 – Spring (Not spared)
23 – Rear bearing (P/O PL 10.20 Item
10)
NOTE: 1.To reset the HFSI count go to dC135.
NOTE: 2. Also part of PL 10.20 Item 16 and PL 10.20 Item
18.
NOTE: 3. To replace this item also order item PL 31.11 Item
9.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
