November 2015
5-47
Xerox® ColorQube® 9303 Family
PL 12.170
Parts Lists

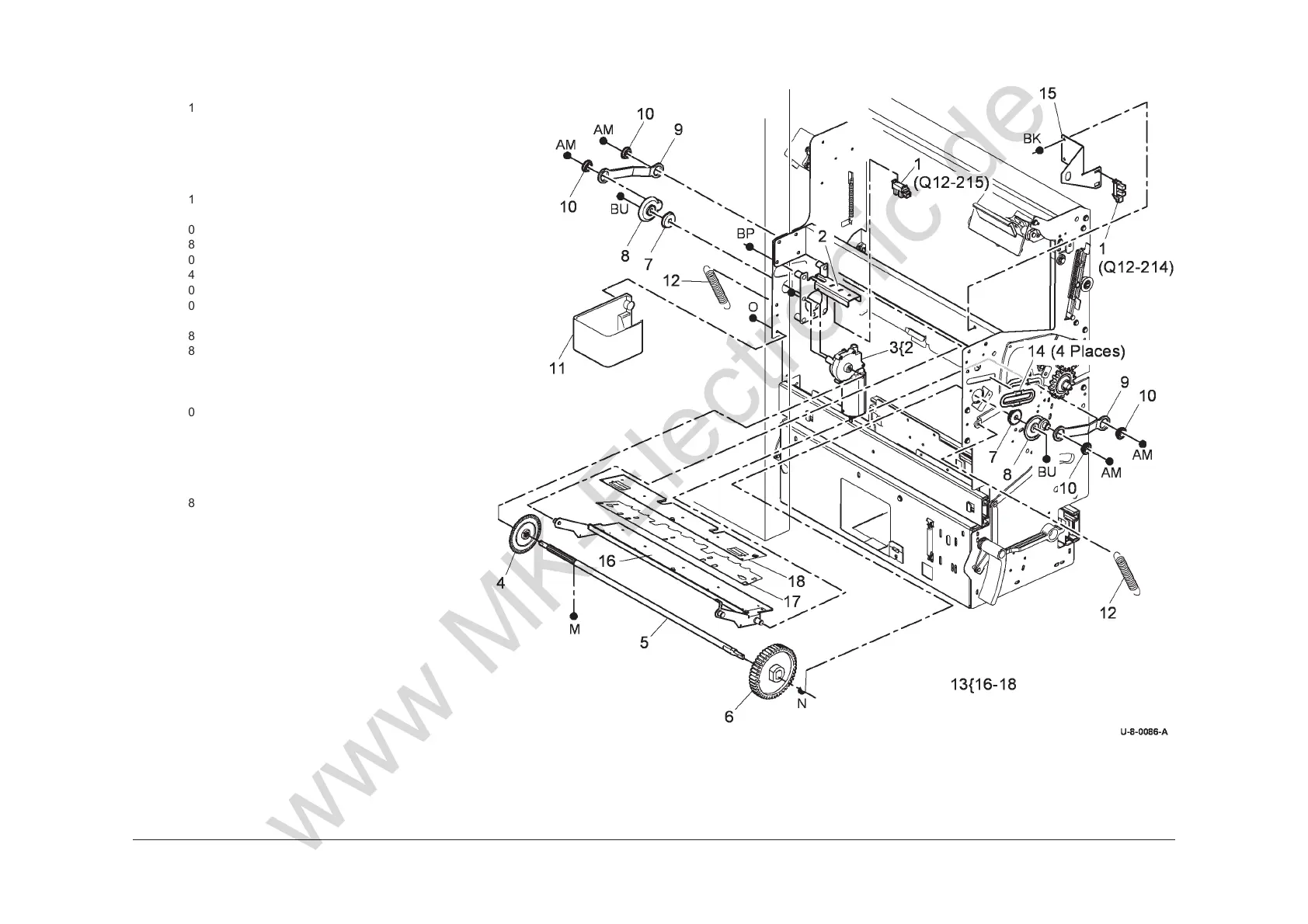

PL 12.170 HVF BM Crease Blade
M
otor
Item Part Description
1
107E22600 BM Crease blade motor encoder
sensor (Q12-215), BM Crease
blade home sensor (Q12-214)
(REP 12.18-171)
2 Motor bracket (P/O PL 12.170 Item
3)
3 127K54690 BM Crease blade motor assembly
(MOT12-252) (REP 12.18-171)
4 014E47460 Motor encoder (REP 12.18-171)
5 806E36200 Drive shaft
6 007E69830 Drive gear (40T)
7 413W30654 Bearing (REP 12.18-171)
8 008E08220 Crank (REP 12.18-171)
9 012E20860 Connecting rod (REP 12.36-171)
10 Bearing (Not spared)
11 802E59171 Motor cover
12 809E42861 Crease nip spring (REP 12.36-171)
13 Crease blade assembly (Not
spared) (REP 12.36-171, ADJ
12.4-171)
14 032E19330 Crease blade support guide (REP
12.36-171)
15 Crease blade home sensor bracket
(Not spared)
16 Lower mounting plate (P/O PL
12.170 Item 13)
17 815E56520 Crease blade folder plate
18 Upper mounting plate (P/O PL
12.170 Item 13)
