Xerox ColorQube 9303 Service Manual

November 2015
5-13
Xerox® ColorQube® 9303 Family
PL 10.10
Parts Lists

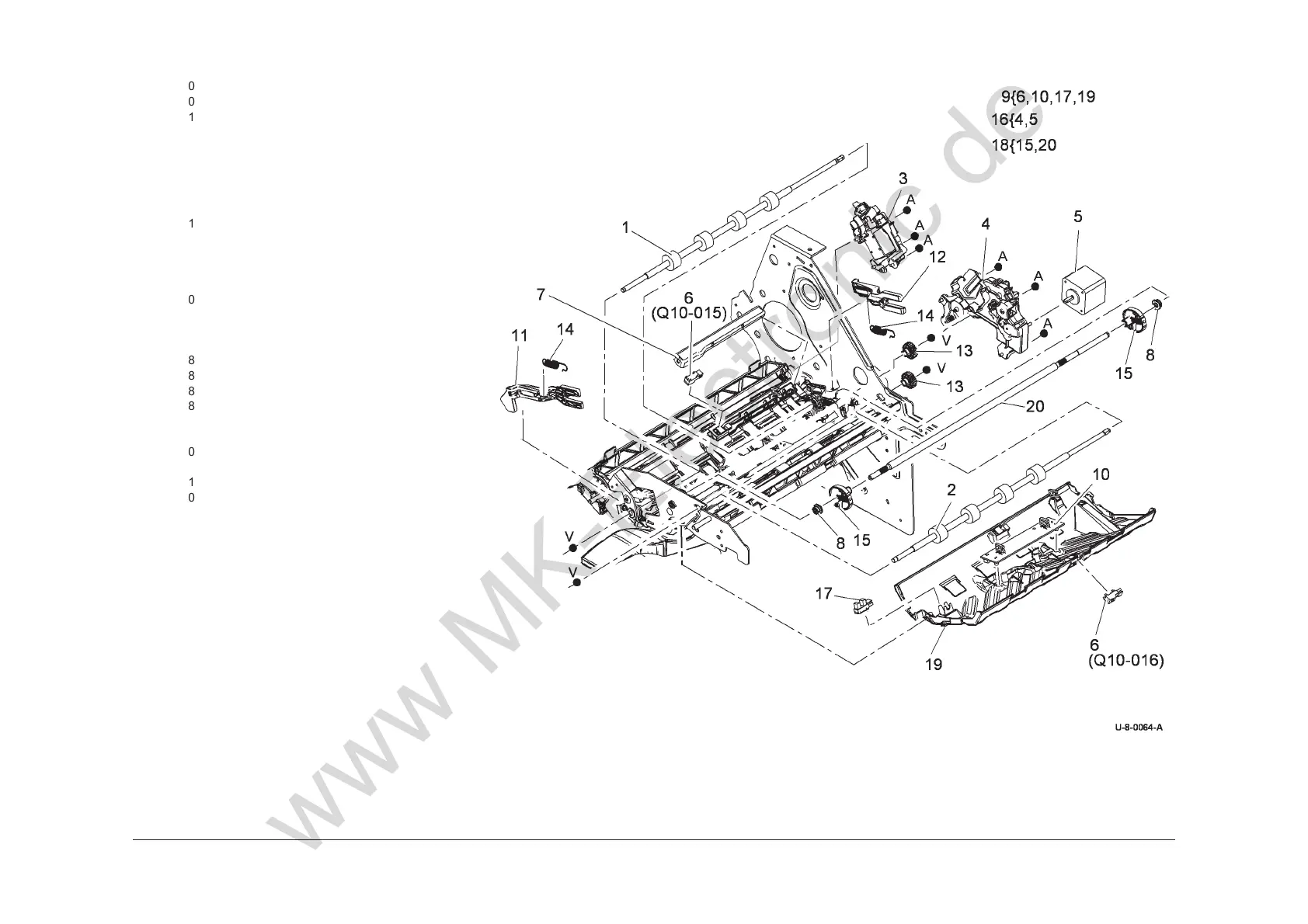

PL 10.10 Stripper System (1 of 2)
Item Part Description
1
059E10700 Roller drive 'J' (REP 10.10)
2 059E10890 Roller drive 'L' (REP 10.11)
3 121K50591 Stripper solenoid assembly
(SOL10-021) (REP 10.9)
4 – Gearbox (P/O PL 10.10 Item 16)
(REP 10.8)
5 – Post transfix motor (M4) (MOT10-
018) (P/O PL 10.10 Item 16) (REP
10.8)
6 130E12950 Post transfix sensor (11) (Q10-
015)/Pre exit sensor (12) (Q10-
016)
7 – Sensor cover (Not spared)
8 – Bushing roller (Not spared)
9 055K43331 Upper baffle assembly (See NOTE)
(REP 10.22)
10 – Stripper jam clearance LED
assembly (P/O PL 10.10 Item 9)
11 803E13460 Front latchfork
12 803E13451 Back latchfork
13 807E29000 Gear drive (25T Symetric)
14 809E34520 Return spring
15 – Stripper latch cam (P/O PL 10.10
Item 18)
16 007K19810 Motor drive and gearbox assembly
(REP 10.8)
17 130E12940 Stripper latch sensor (Q10-014)
18 006K32500 Stripper guide latch cam shaft
assembly (REP 10.23)
19 – Upper baffle (P/O PL 10.10 Item 9)
20 – Camshaft (P/O PL 10.10 Item 18)
NOTE: HFSI. This component must be cleaned at regular
intervals, refer to SCP 4 subsystem maintenance. To reset
the HFSI count, go to dC135.
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
