Xerox ColorQube 9303 Service Manual

November 2015
5-32
Xerox® ColorQube® 9303 Family
PL 12.100
Parts Lists

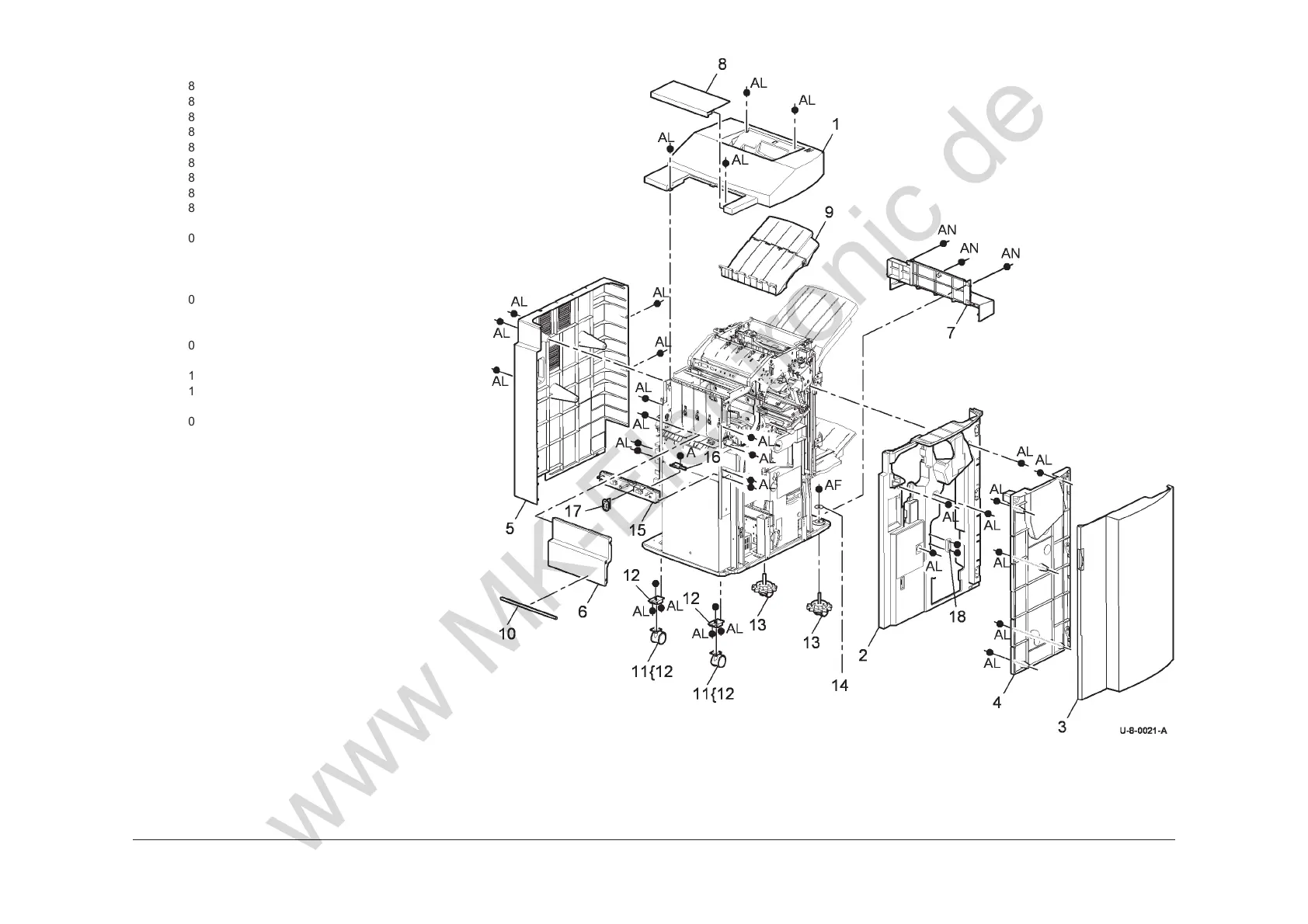

PL 12.100 HVF Covers and Docking
Item Part Description
1
848E40510 Top cover (REP 12.1-171)
2 848K12501 Front cover (REP 12.1-171)
3 848E17790 Front door (REP 12.1-171)
4 848K12510 Door support (REP 12.1-171)
5 848E40521 Rear cover (REP 12.1-171)
6 848K12530 Vent cover (REP 12.1-171)
7 848E17800 Foot cover (REP 12.1-171)
8 848E17810 Inserter cover (REP 12.1-171)
9 848E40500 Top tray (REP 12.3-171)
10 – Seal (Not spared)
11 017K04830 Fixed caster assembly (REP 12.96-
171)
12 – Fixed caster bracket (P/O PL
12.100 Item 11)
13 017K04630 Adjustable caster (REP 12.96-171)
14 – Adjustable caster washer (P/O PL
12.100 Item 13)
15 017K04761 Docking latch assembly (REP
12.102-171)
16 110K13980 Docking interlock switch (S12-177)
17 120K03451 Docking actuator (P/O PL 12.100
Item 15)
18 049K13570 Bookletmaker interlock bracket
www MK-Electronic de

Xerox ColorQube 9303 Specifications

General

Dimensions (WxDxH)	1398 x 722 x 1156 mm
Networking features	Gigabit Ethernet
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	print, scan
Duplex printing	Yes
Print technology	Inkjet
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	7.2 s
Print speed (black, normal quality, A4/US Letter)	60 ppm
Print speed (color, normal quality, A4/US Letter)	55 ppm
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	300000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c, PCL 6, PostScript 3
Time to first copy (black, normal)	8.2 s
Copy speed (black, normal quality, A4)	60 cpm
Copy speed (color, normal quality, A4)	55 cpm
Scan to	E-mail, FTP, Image, USB
Scan speed (black)	84 ppm
Image formats supported	JPG
Optical scanning resolution	- DPI
Total input capacity	3300 sheets
Total output capacity	- sheets
Maximum input capacity	7300 sheets
Paper tray 2 input capacity	550 sheets
Auto document feeder (ADF) input capacity	100 sheets
Maximum print size	320 x 457 mm
Paper tray media types	Plain paper
ISO A-series sizes (A0...A9)	A4
Display	-
Control type	Touch
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Internal storage capacity	160 GB
Power consumption (average operating)	- W
Faxing	Mono faxing
