Xerox ColorQube 9303 Service Manual

November 2015
5-102
Xerox® ColorQube® 9303 Family
PL 91.25
Parts Lists

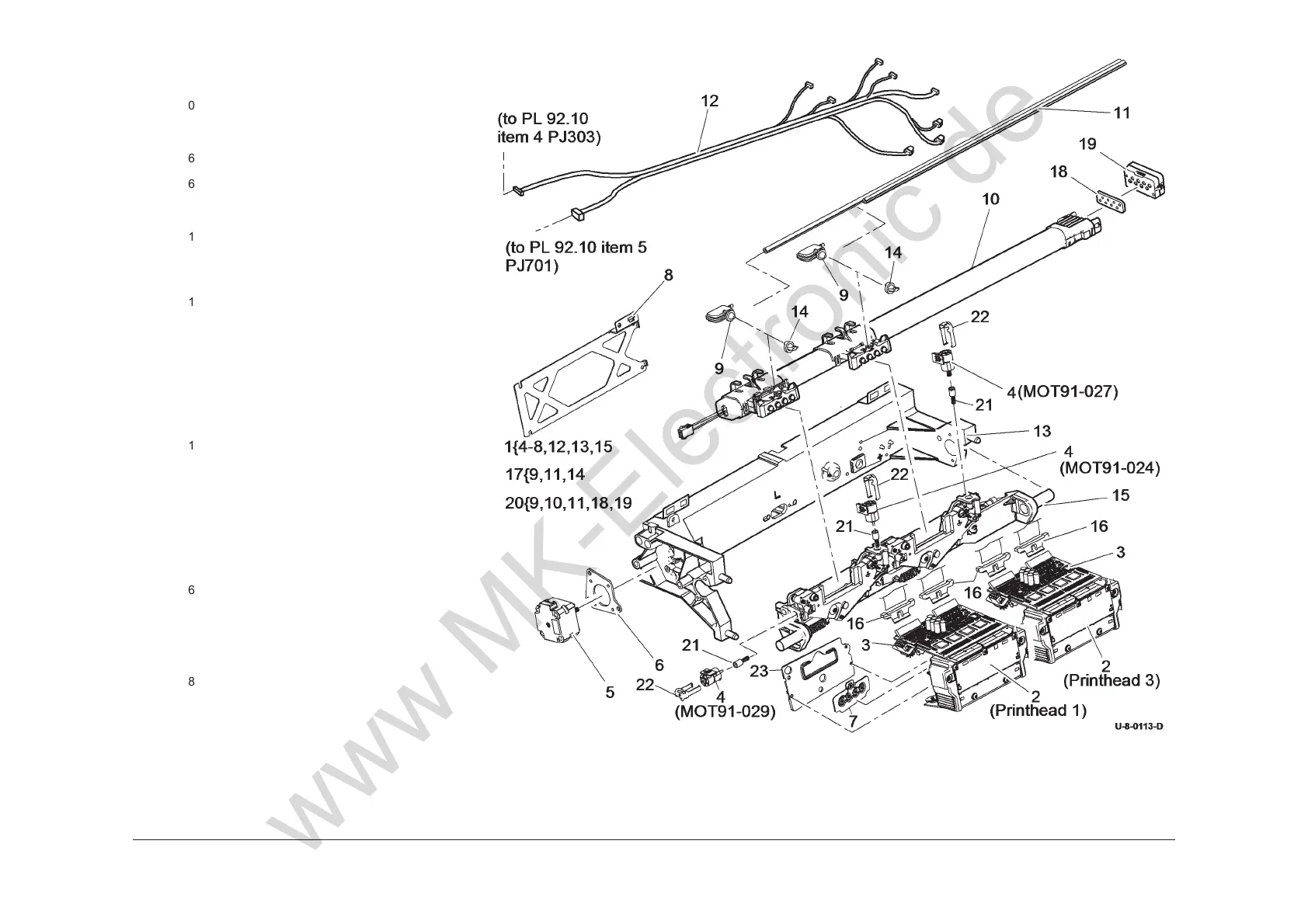

PL 91.25 Marking Unit Lower Carriage
A
ssembly
Item Part Description
1
041K06780 Lower carriage assembly (REP
91.14)
2 – Printhead (Type A) (Not spared)
(see NOTE 1) (REP 91.29)
– 604K83791 Printhead (Type B) (see NOTE 1 &
2) (REP 91.29)
– 604K95450 Printhead (Type B - 9301 only)
(USSG/XCL) (see NOTES 1 & 2)
3 – Printhead PWB (P/O PL 91.25 Item
2)
4 127K62310 Printhead stitch adjust motor 1
(MOT91-029)/Printhead roll adjust
motor 1 (MOT91-024)/Printhead
roll adjust motor 3 (MOT91-027)
(REP 91.13)
5 127K62300 X-axis drive motor lower (MOT91-
034) (NOTE 4)
6 – Printhead drive motor bracket (P/O
PL 91.25 Item 5)
7 – Gasket (P/O PL 31.13 Item 9)
8 – Mounting bracket (Not spared)
9 – Purge line filter (P/O PL 91.25 Item
17)
10 – Umbilical (P/O PL 91.25 Item 20)
(NOTE 3) (REP 91.31)
11 – Purge line (P/O PL 91.25 Item 17)
12 117E35660 Lower carriage harness (PJ303,
PJ701)
13 – Lower carriage frame assembly (P/
O PL 91.25 Item 1)
14 – Purge line filter cap (P/O PL 91.25
Item 17)
15 – SFWA lower frame (P/O PL 91.25
Item 1)
16 – Cable clip (Type A) (P/O PL 31.11
Item 29, PL 31.11 Item 13) (see
NOTE)
17 604K54961 Purge line filter assembly
18 – Reservoir gasket (P/O PL 91.25
Item 20)
19 – Check valve unit (P/O PL 91.25
Item 20)
20 – Umbilical kit (REF: PL 31.10 Item
14)
21 826E66291 Lead screw (REP 91.37)
22 – Spring clip (P/O PL 91.25 Item 1)
23 – Plastic plate
NOTE: 1.To identify the type of printhead, refer to GP 46.
NOTE: 2. Refer to GP 50 for ColorQube 9301 low cost
printhead.
NOTE: 3. When replacing the umbilical it is recommended
that the printhead gaskets are replaced on printheads that
are over 12 months old with PL 31.13 Item 9.
