Repairs and Adjustments
4-82 04/08 Phaser 3100 MFP
Removal

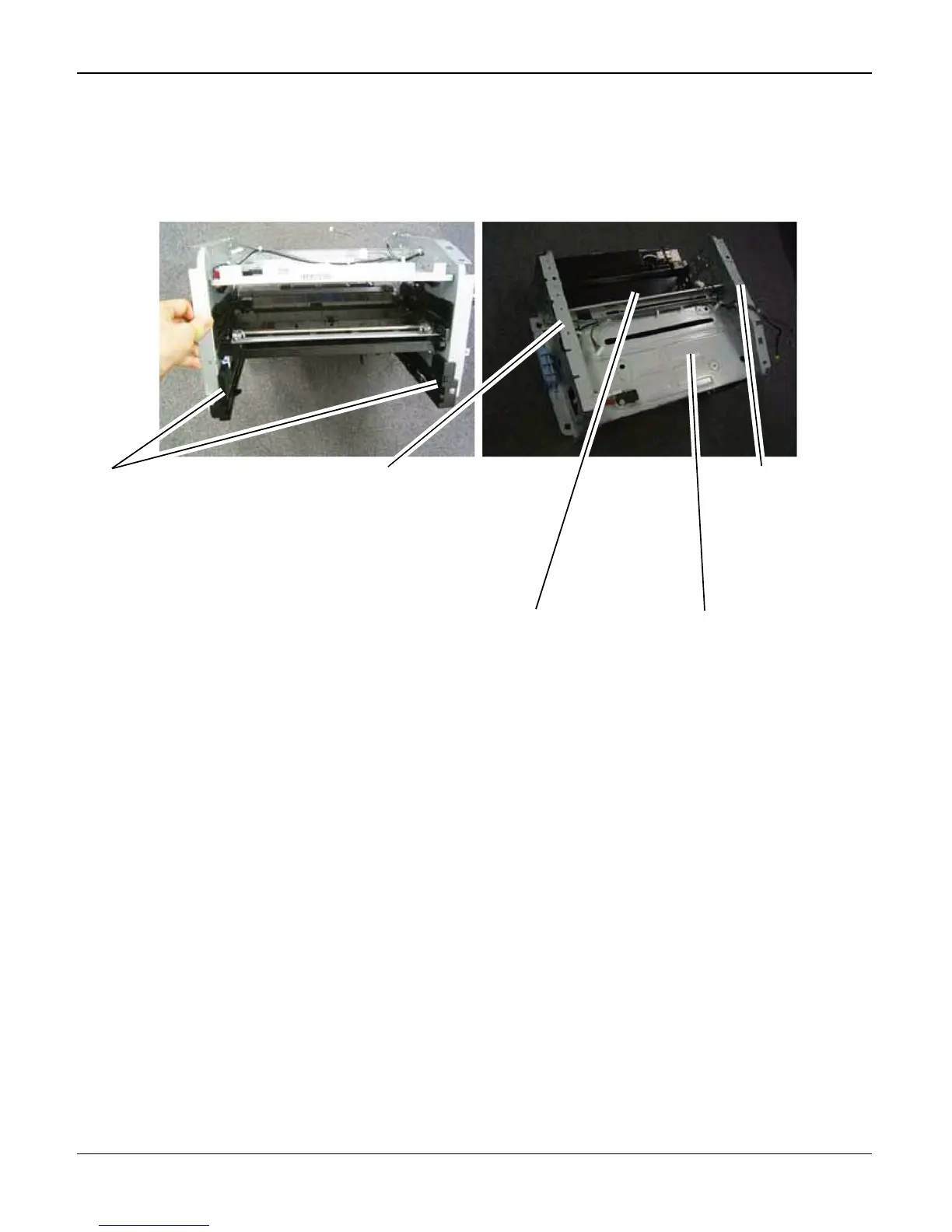

1. Remove the surrounding components, Figure 1.
Figure 1
1
Remove the paper
tray guides, 2
screws
2
Remove the left
shield, 13 screws
and 2 screws at the
bottom
3
Remove the
right shield, 9
screws
4
Remove the laser
shield, 4 screws
5
Remove the
guide shield, 4
screws
