General Procedures and Information
Phaser 3100 MFP 04/08 6-77

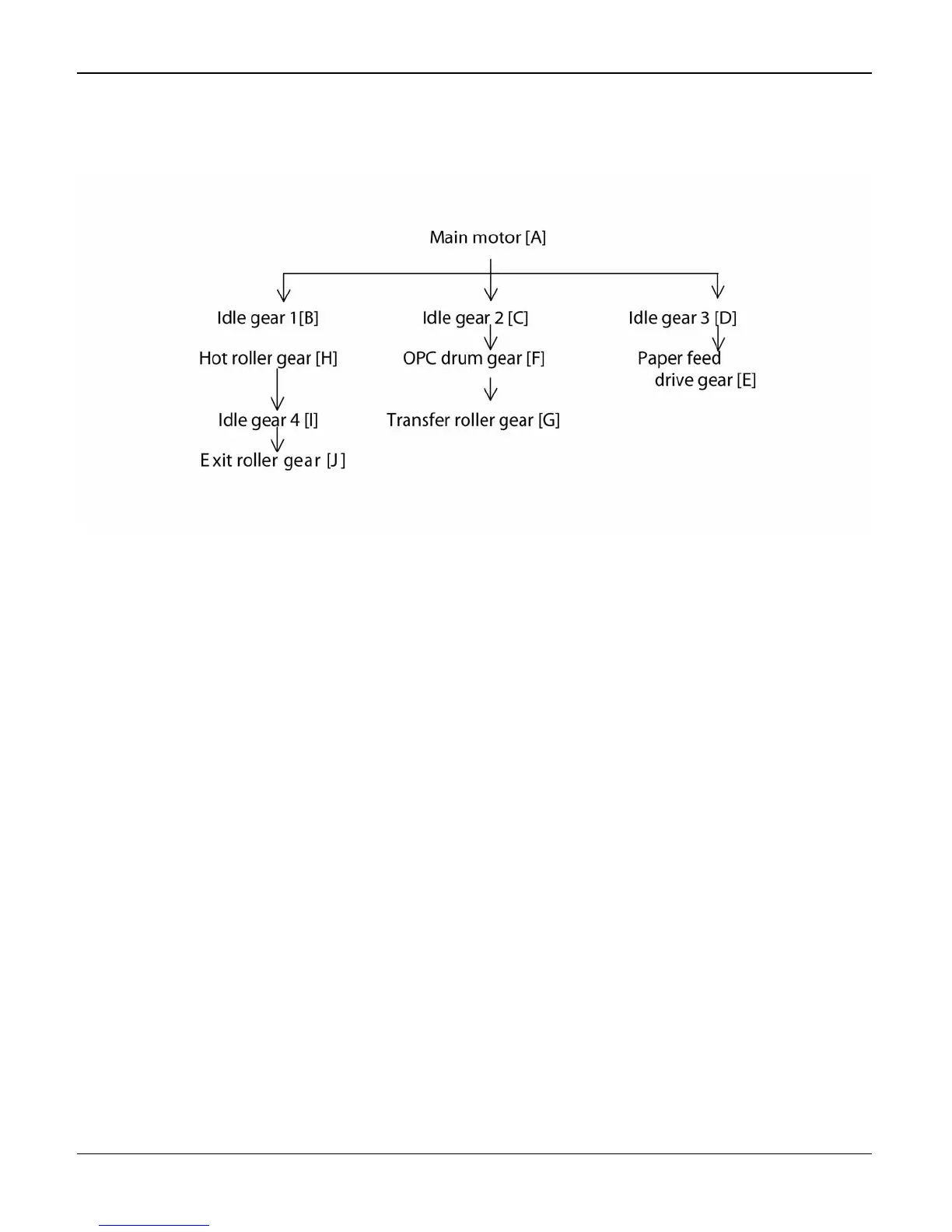

The main motor drives the paper feed unit, the transfer roller, the toner cassette, and fusing unit
through a series of gears as follows.
