Xerox PHASER 3435 Service Manual

General Procedures and Information
Phaser 3435 5/08 6-31
S/W Descriptions
Overview
The software of the system is constructed with
1. Host Software part that the application software operated in Window and Web Environment,
and
2. Firmware parts that is a Embedded software controls printing job.
Architecture

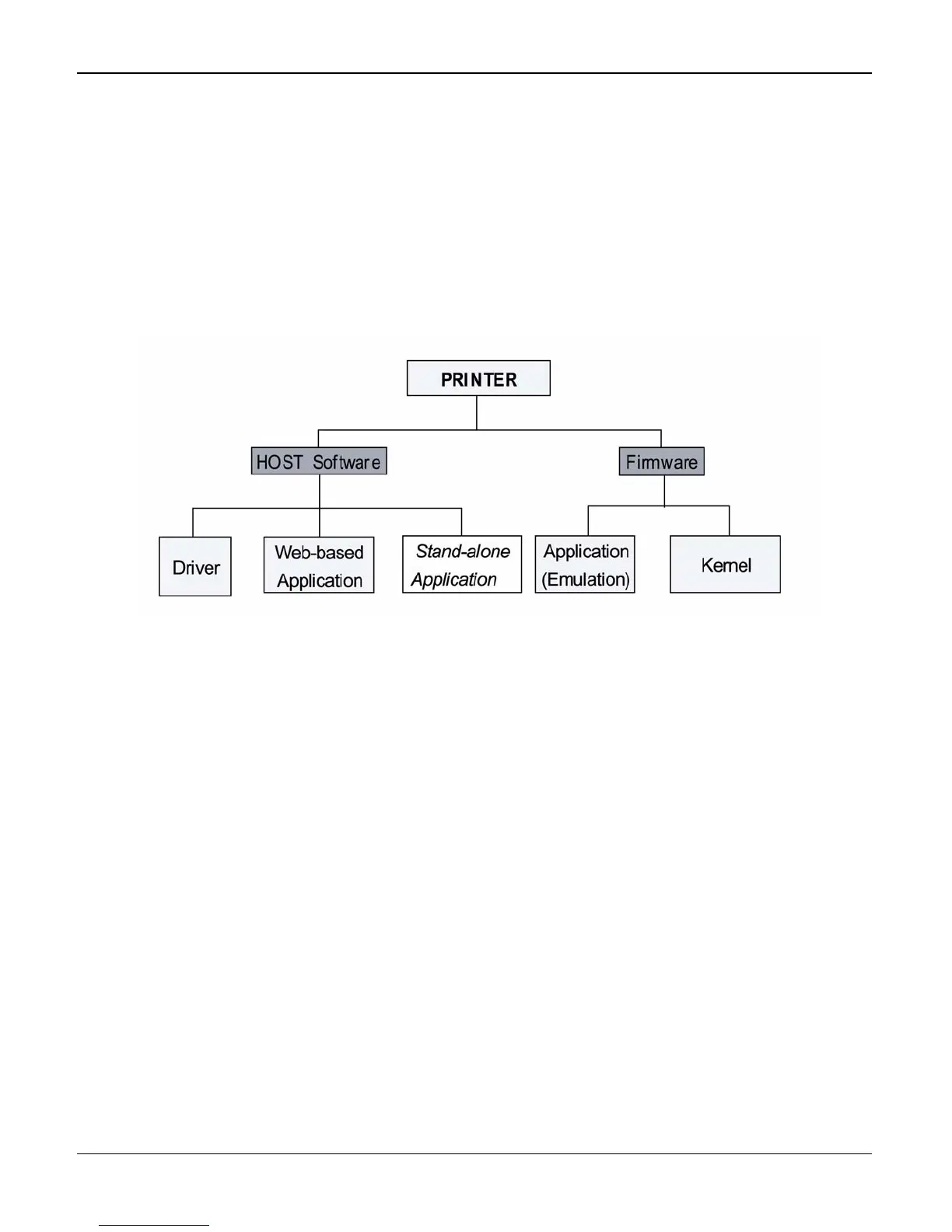

Figure 5
Host Software is made up of
1. Graphic User Interface that offers the various editing functions to user in Host,
2. Driver that translates the received document to a Printing Command language which printer
can understand and transfers data to spooler,
3. Stand-alone Application that offers the various printing application, DMS (Document Manage-
ment System), RCP (Remote Control Panel), Printer Status Monitor, Network Management in
Window system,
4. Web-based-Application that offers the same functions as Stand-alone Application and RDC
(Remote Diagnosis Control) in Web environment.
Firmware is made up of
1. Application (Emulation) that is a interpreter translate data received from Host to a printing lan-
guage (PCL, PS, GDI, etc.) to be able to make the user to take same output as originally one
what composed in Host.
2. Kernel that control and management the whole procedure include of Control flow and Printing
Job before transfer to Engine system.

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
