Data and Control Flow
Figure 6

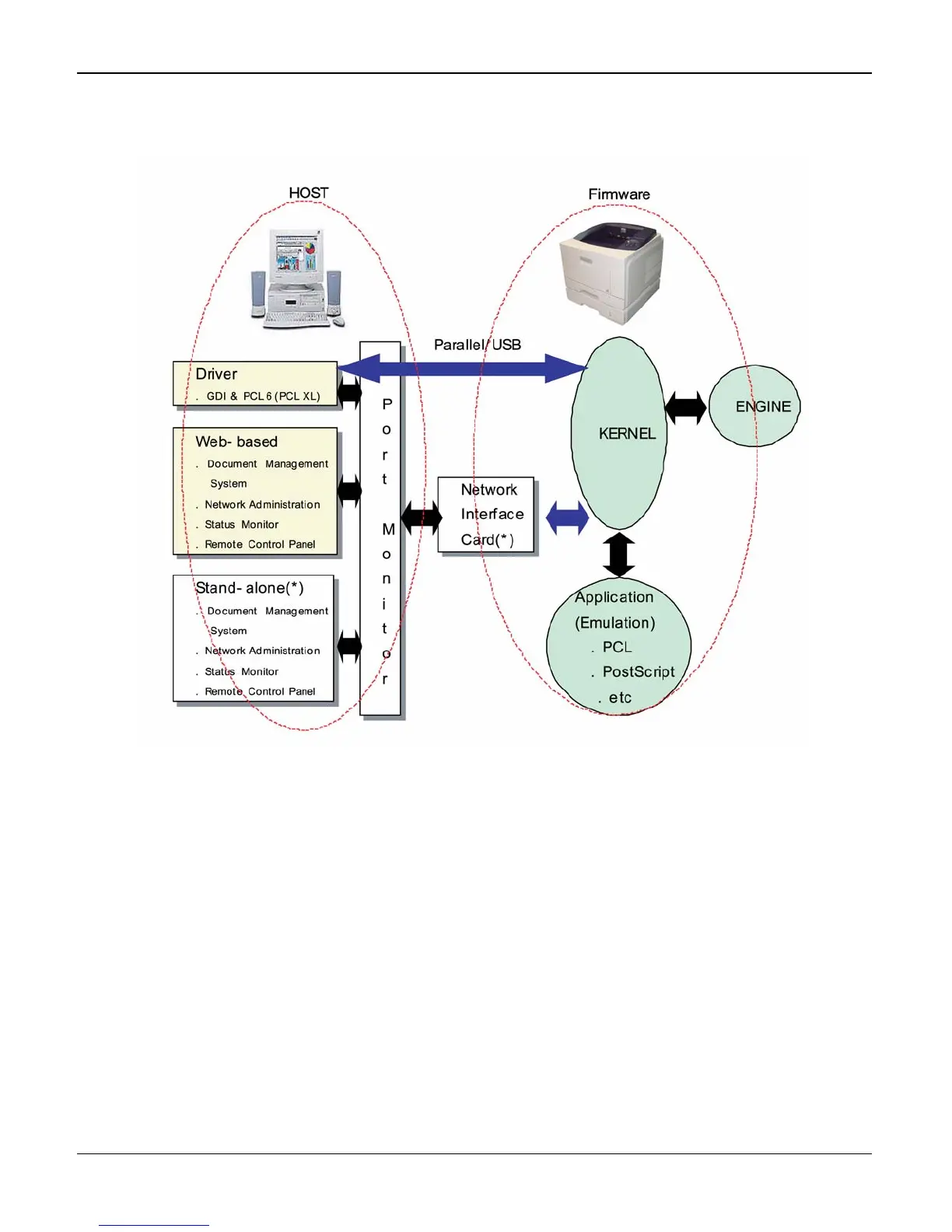

The above Block Diagram is explained that:
Host Side is made up of
1. Driver that is Windows application software translate printed data to one of printer language
and create spooler file.
2. Web-based Application that offer a various printer additional functions, management of print-
ing job, printer administration, Status monitor to monitoring the printer status by real time in
Web, independent environment on OS.
3. Stand-alone Application that is a similar Window software as same as above 2.
4. Port Monitor that manages the network communication between spooler and Network Inter-
face Card, or various additional application and Network Interface Card, (this is, at first, make
communication logical port, manage the data, transfer them from spooler to network port, and
offer the result of printing).
