Xerox PHASER 3435 Service Manual

Status Indicator RAPs
2-8 5/08 Phaser 3435
2. Remove the jammed paper by gently pulling it straight out. Make sure that all of the paper is
properly aligned in the tray 1.

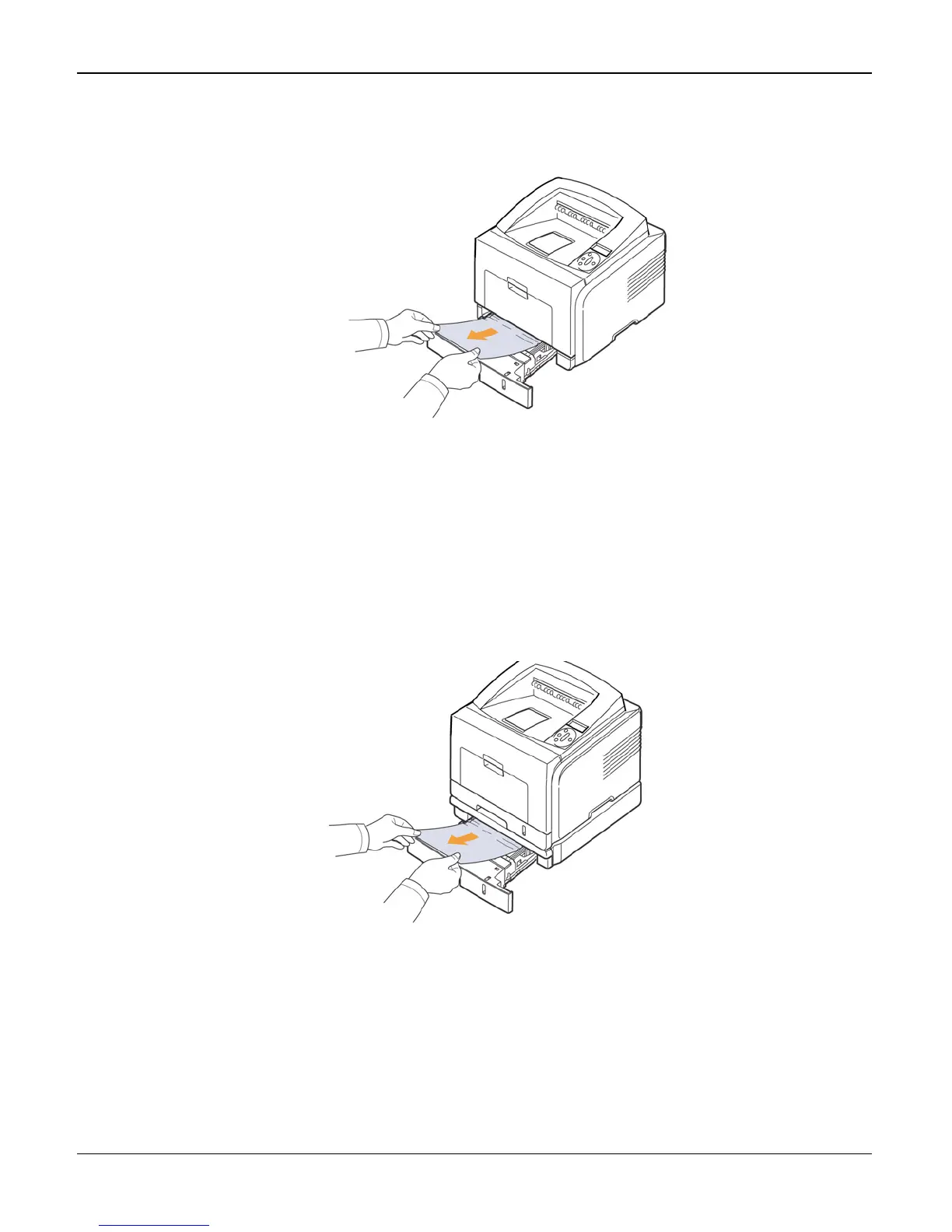

Figure 2
If the paper is not move when you pull, or if you do not see the paper in this area, check the
fuser area around the print cartridge.
3. Insert the tray 1 into the printer until it snaps into place. Printing automatically resumes.
In the Optional Tray 2
1. Pull the optional tray 2 open.
2. Remove the jammed paper from the printer.
Figure 3
If the paper is not move when you pull, or if you do not see the paper in this area, stop and go
to step 3.
3. Pull the tray 1 half.
4. Pull the paper straight up and out.

Xerox PHASER 3435 Specifications

General

Color	No
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	64 MB
Sound power level (standby)	25 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	550 sheets
Media weight (tray 1)	60 - 163 gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), index card, Letter (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Network ready	Yes
Authentication method	IP filtering, 802.1x
Power consumption (active)	526 W
Maximum operating temperature range (T-T)	10 - 32 °C
Maximum duty cycle	80000 pages per month
Power consumption (standby)	36 W
Power consumption (PowerSave)	11 W
Operating temperature (T-T)	50 - 90 °F
Operating relative humidity (H-H)	20 - 80 %
Certification	CB Report (IEC 60950-1/EN 60950-1), Certified to UL 60950-1/CSA 60950-1-03, 1st Edition, CE Marked, EMC Directive 2004/108/EC, FCC Part 15, Class B, Low Voltage Directive 2006/95/EC, R&TTE Directive 1999/5/EC, RoHS Directive 2002/95/EC
