General Procedures and Information
WorkCentre 3119 06/06 6-21
- Turn On If Current : 15mA - 50mA(Design: 16mA)
- High Repetive Peak Off State Voltage : Min 600V
Software Structure and Descriptions
Architecture

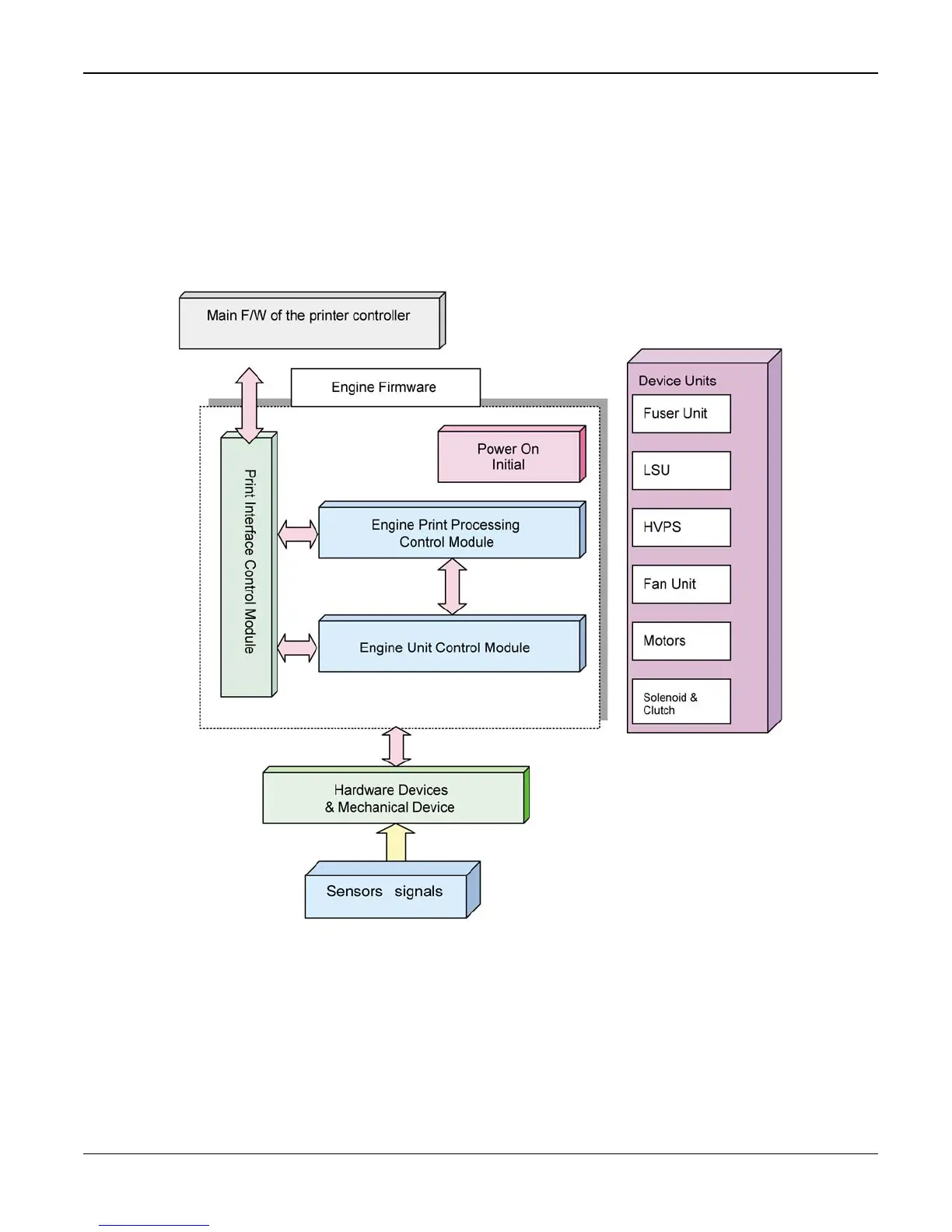

The following diagram shows the Engine Control System.
Figure 3
