Xerox WorkCentre 4150 Service Manual

January 2016
4-14
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 1.8
Repairs and Adjustments

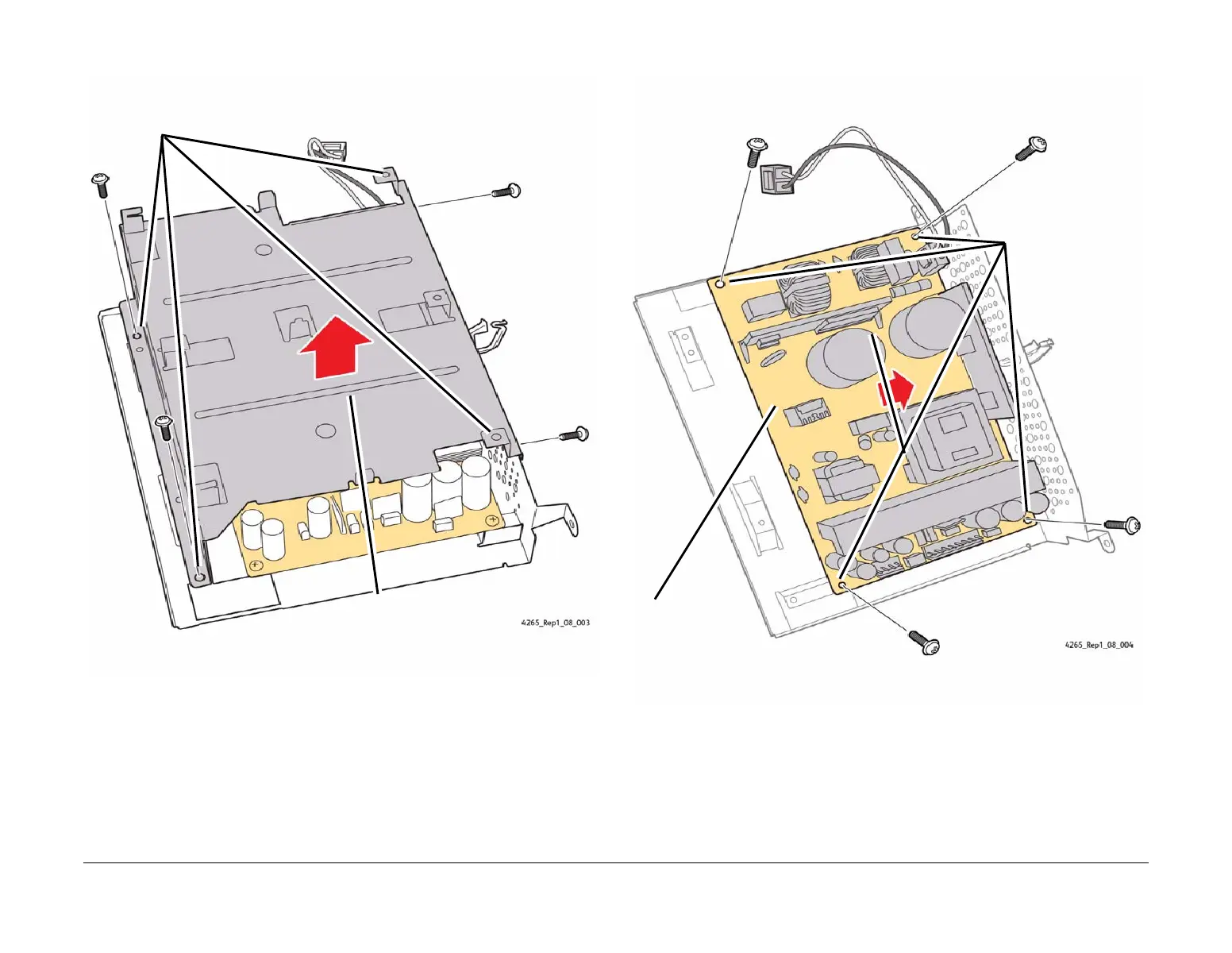

5. Remove the Support Cage Cover (Figure 3).
Figure 3 Removing the Support Cage Cover
6. Remove the SMPS from the lower bracket (Figure 4).
Figure 4 Removing the SMPS from the Lower Bracket
Replacement
1. Reinstallation is the reverse of the Removal procedure.
1
Remove the four
mounting screws.
2
Remove the Support
Cage Cover.
1
Remove the four
mounting screws.
2
Remove the
SMPS from the
lower bracket.
