January 2016
4-15
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 1.9
Repairs and Adjustments
REP 1.9 Power Supply Unit 2 (4265)
Parts List on PL 1.20
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Power off the machine. Disconnect the power cord.
2. Remove the exit tray assembly, PL 28.10 Item 1 or the finisher, REP 12.1.
3. Remove the Paper Exit Cover (PL 28.10 Item 4).
4. Disconnect the four connectors on the Power Supply Unit 2 (Figure 1).

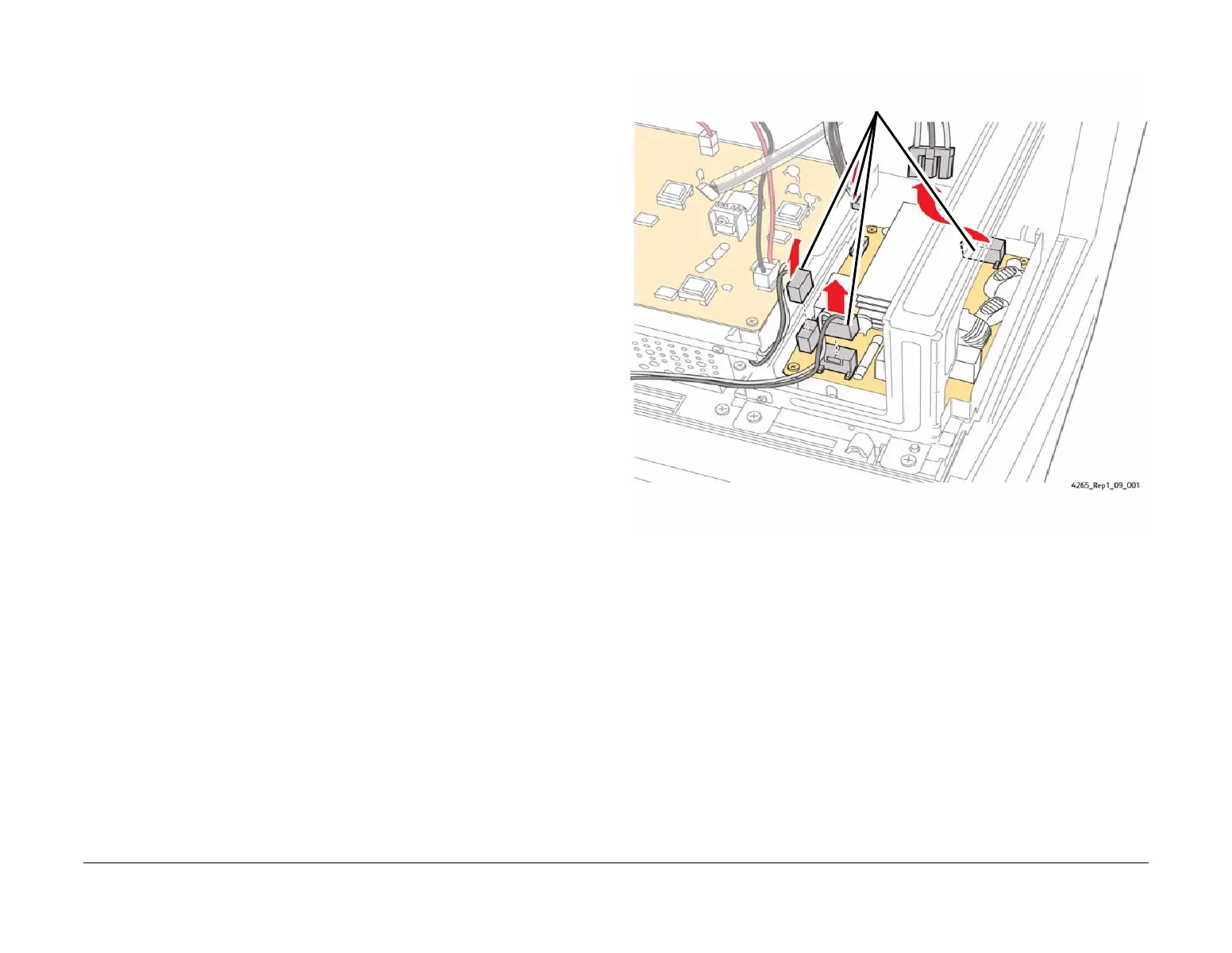

Figure 1 Disconnecting the Connectors
1
Disconnect the four connectors.
To Next Page
