Xerox WorkCentre 4150 Service Manual

January 2016
4-39
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.1
Repairs and Adjustments

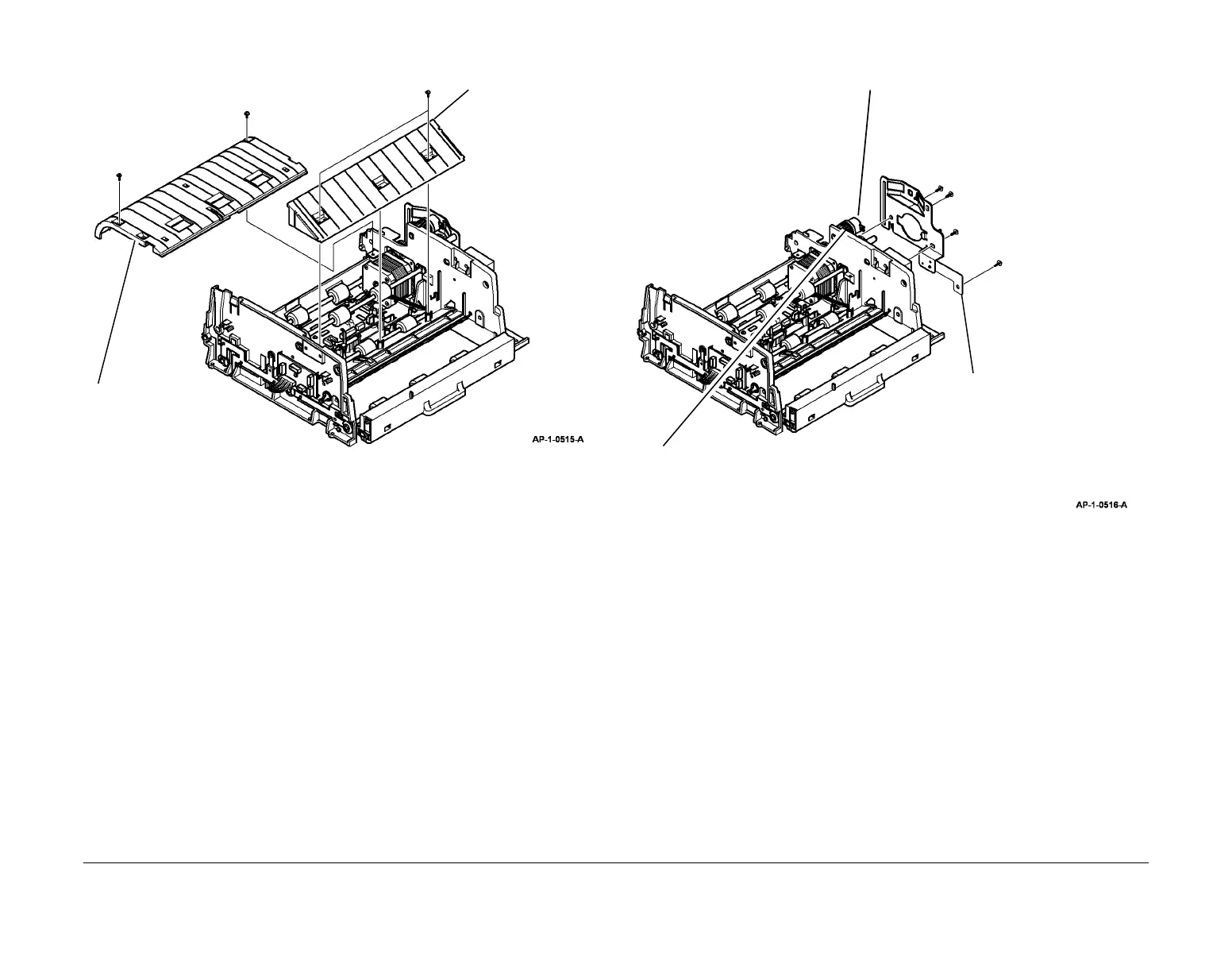

18. Remove the guides, Figure 17.
Figure 17 Guide removal
19. Remove the drive gear cover, Figure 18.
Figure 18 Drive gear cover removal
1
Remove 2 screws, then the
left guide.
2
Remove 2 screws,
then the right guide.
1
Disconnect the registration clutch inline connector.
2
Remove 4 screws, then the
drive gear cover.
3
Remove the registration clutch, drive gear,
shaft and 2 bearings.
