Xerox WorkCentre 4150 Service Manual

January 2016
4-40
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.1
Repairs and Adjustments

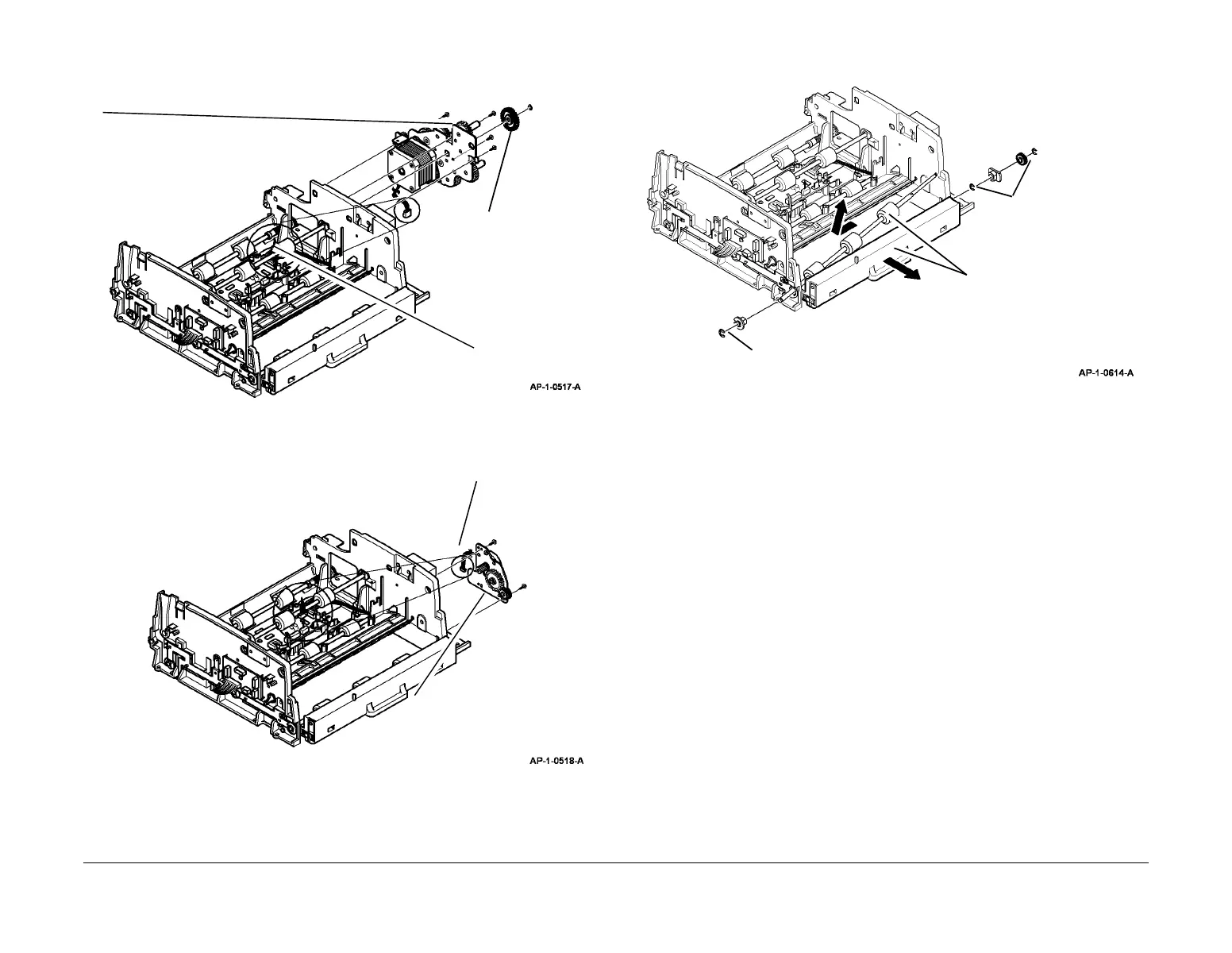

20. Remove the DADF scan motor assembly, Figure 19.
Figure 19 DADF scan motor assembly removal
21. Remove the duplex motor assembly, Figure 20.
Figure 20 Duplex motor assembly removal
22. Remove the DADF exit assembly, Figure 21.
Figure 21 DADF Exit assembly removal
Replacement
1. Replacement is the reverse of the removal procedure. When reconnecting the inline con-
nectors, ensure they are connected correctly:
• The pickup clutch connects to the black wires.
• The registration clutch connects to the green wires.
• The door open switch connects to the red wires.
2. Ensure the 3 ground harnesses are installed onto the document transport assembly.
2
Disconnect CN4.
3
Remove 4 screws, then the
DADF scan motor assembly.
If necessary, remove the
DADF motor (2 screws).
1
Remove 1 E-clip,
then the duplex
roll drive gear.
1
Disconnect CN5.
2
Remove 2 screws, then the
duplex motor assembly.
1
Remove the E-clip, then the bearing.
2
Remove the 2 E-clips,
the gear, then the
bearing.
3
Remove the exit roll, then the
exit assembly.
