January 2016
4-46
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.5
Repairs and Adjustments
REP 5.5 DADF Feed Roll Assembly (4250/4260)
Parts List on PL 5.40
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Open the top cover assembly, PL 5.30 Item 2.
2. Remove the DADF feed roll assembly, Figure 1.

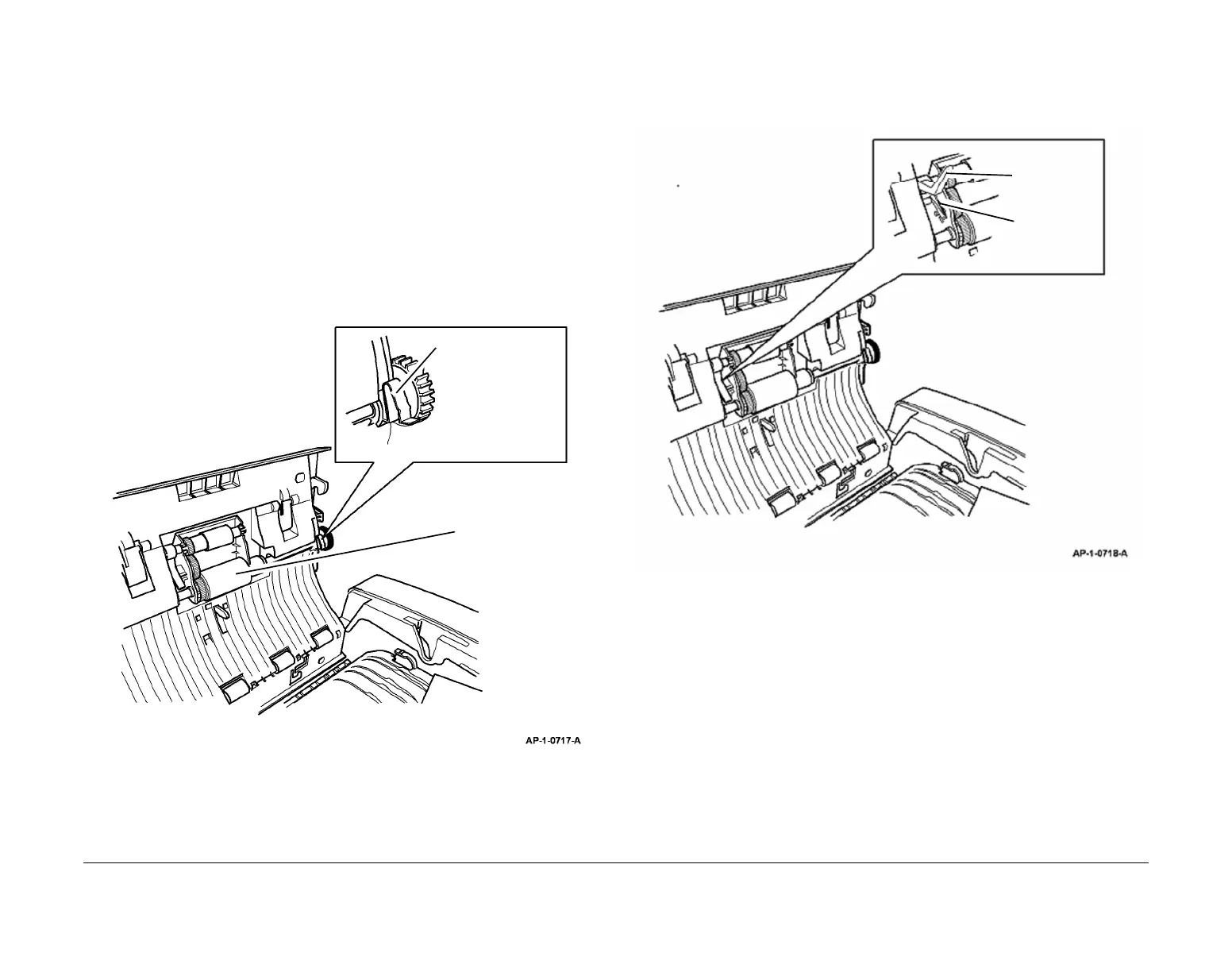

Figure 1 Removing the Feed Roll Assembly
3. Remove the bearings, PL 5.40 Item 9 and the retaining clip, PL 5.40 Item 8 from the feed
roll assembly.
Replacement
Replacement is the reverse of the removal procedure. Ensure that the DADF feed gate and
link arm are correctly positioned when the feed assembly is installed, Figure 2.
Figure 2 Replacement
1
Rotate the retaining
clip 90 degrees.
2
Remove the feed roll
assembly.
To Next Page
