Xerox WorkCentre 4150 Service Manual

January 2016
4-47
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.6, REP 5.7
Repairs and Adjustments
REP 5.6 DADF Input Tray Assembly and Paper Length
Sensor (4250/4260)
Parts List on PL 5.32
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Open the top cover assembly, PL 5.30 Item 2.
2. Remove the DADF rear cover, refer to REP 5.4.
3. Disconnect CN5 from the DADF PWB. Release the harness from the holder.
4. Carefully release the front pivot of the input tray assembly, then the rear pivot. Remove
the input tray assembly, PL 5.32 Item 1.
5. Remove the lower cover, PL 5.32 Item 12.
6. Remove the document length sensor, PL 5.32 Item 9.
Replacement
Replacement is the reverse of the removal procedure.
REP 5.7 DADF Document Transport Assembly (4250/4260)
Parts List on PL 5.30, PL 5.45, PL 5.50 and PL 5.55
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, REP 5.3.
2. Remove the DADF rear cover, refer to REP 5.4.
3. Remove the DADF front cover, PL 5.30 Item 12.
4. Disconnect all connectors, except CN8 and CN12 from the DADF PWB.
5. Remove the document transport assembly, Figure 1.

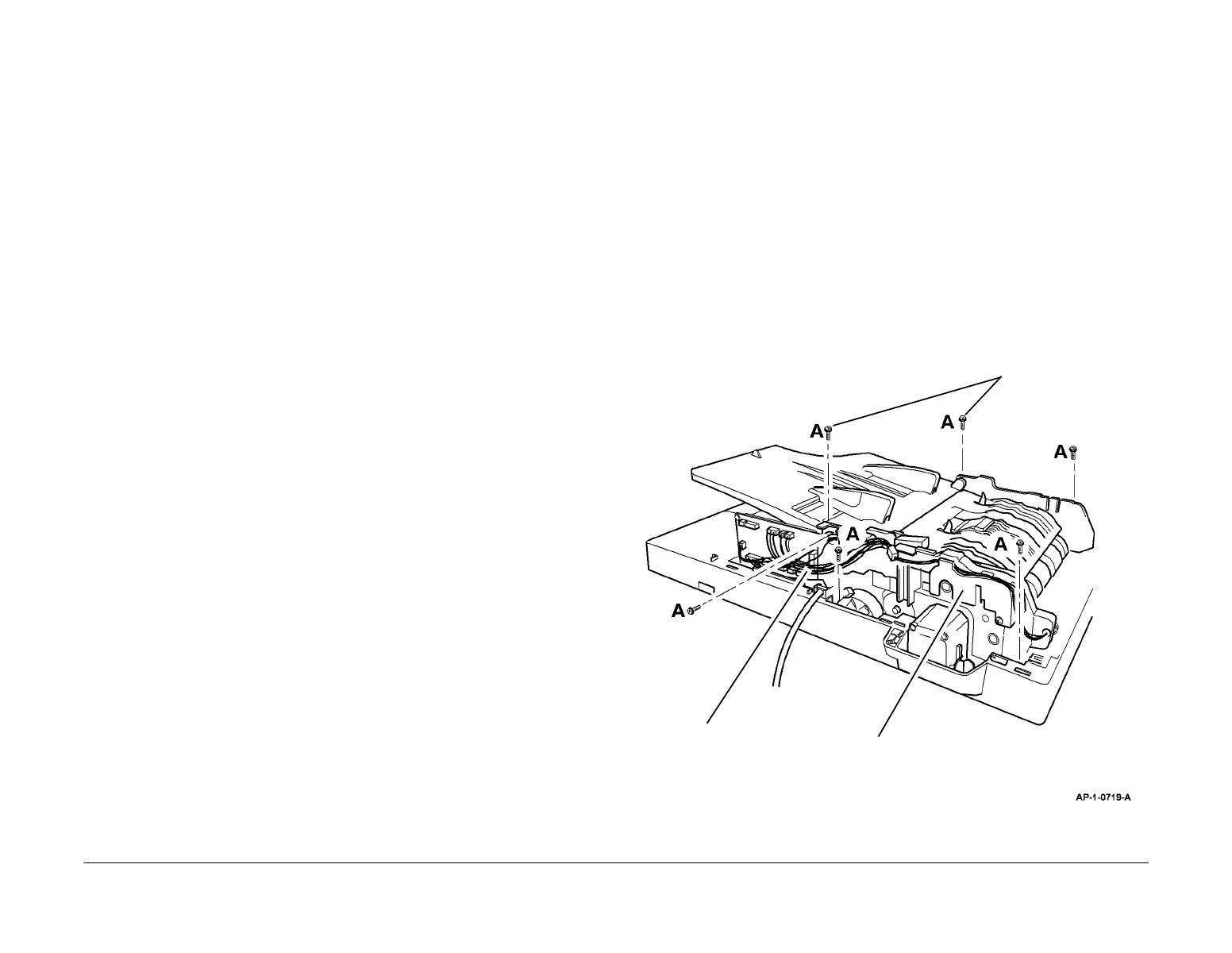

Figure 1 Transport Assembly Removal
1
Remove 6 screws
marked A.
2
Release the R stack sensor
harness from the holder.
3
Remove the document transport assembly.
