January 2016
4-51
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.9, REP 5.10
Repairs and Adjustments
Figure 3 Clutch Removal
Replacement
Replacement is the reverse of the removal procedure.
REP 5.10 DADF Scan Motor Assembly (4250/4260)
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, REP 5.3.
2. Remove the DADF rear cover, refer to REP 5.4.
3. Remove the DADF front cover, PL 5.30 Item 12.
4. Remove the DADF document transport assembly, REP 5.7.
5. Remove the DADF pickup clutch and registration clutch, REP 5.9.
6. Remove the DADF scan motor assembly, Figure 1.

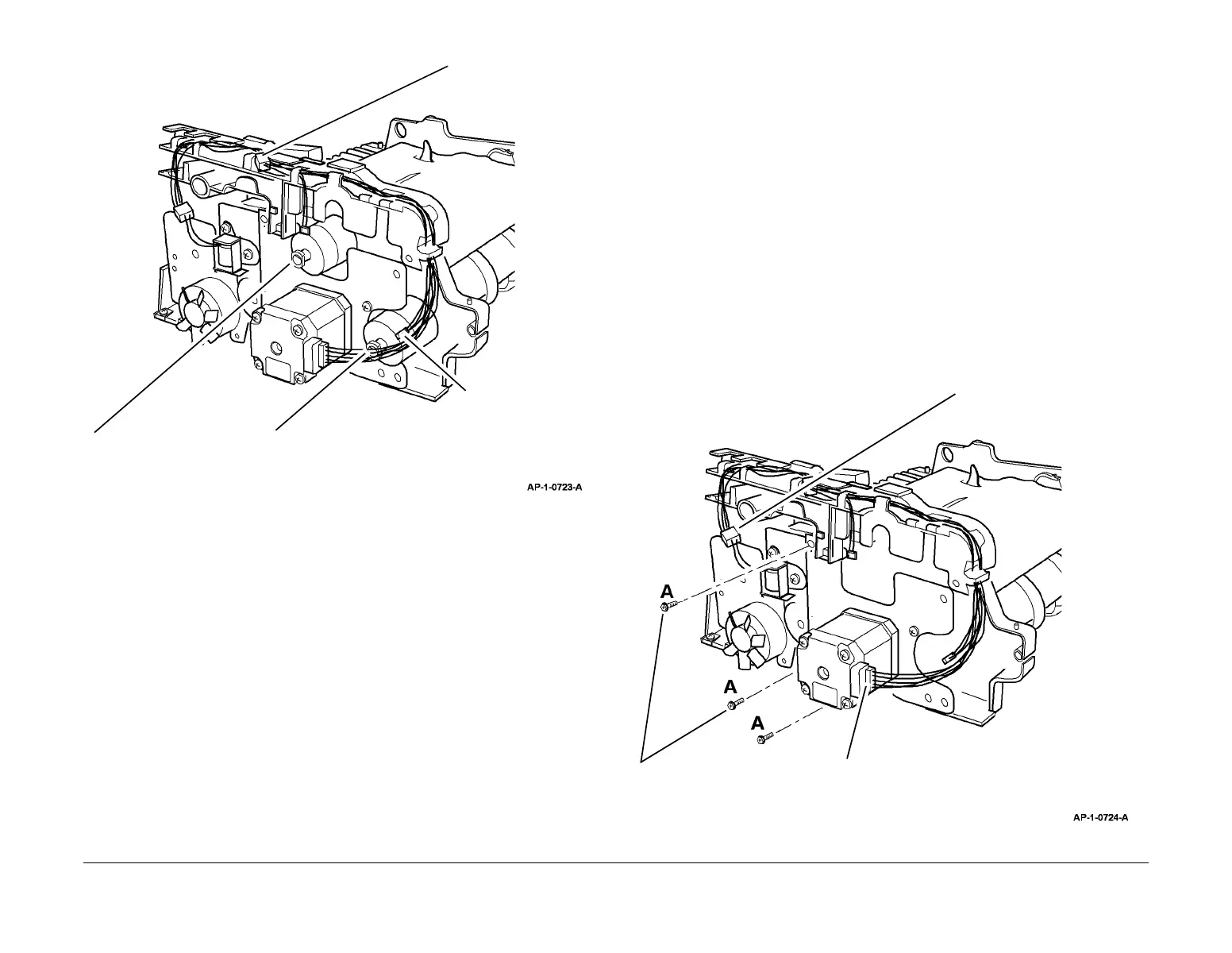

Figure 1 Scan Motor Assembly Removal
2
Disconnect the inline
connector.
3
Remove the bearing,
then the pickup clutch.
1
Carefully disconnect
the clutch connector.
4
Remove the bearing, then
the registration clutch.
1
Disconnect the motor connector.
2
Disconnect the lift solenoid
inline connector.
3
Remove 3 screws marked A, then
the scan motor assembly.
To Next Page
