Xerox WorkCentre 4150 Service Manual

January 2016
4-52
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.10, REP 5.11
Repairs and Adjustments
Replacement
Replacement is the reverse of the removal procedure.
REP 5.11 DADF Gate HP Sensor (4250/4260)
Parts List on PL 5.50
Removal
WARNING
Switch off the electricity to the machine. Disconnect the power cord from the customer
supply while performing tasks that do not need electricity. Electricity can cause death or
injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Before performing this procedure, refer to General Disassembly Precautions, GP 10.
1. Remove the DADF, REP 5.3.
2. Remove the DADF rear cover, refer to REP 5.4.
3. Remove the DADF front cover, PL 5.30 Item 12.
4. Remove the DADF document transport assembly, REP 5.7.
5. Remove the DADF pickup clutch and registration clutch, REP 5.9.
6. Remove the DADF scan motor assembly, REP 5.10.
7. Remove the gate HP sensor, Figure 1.

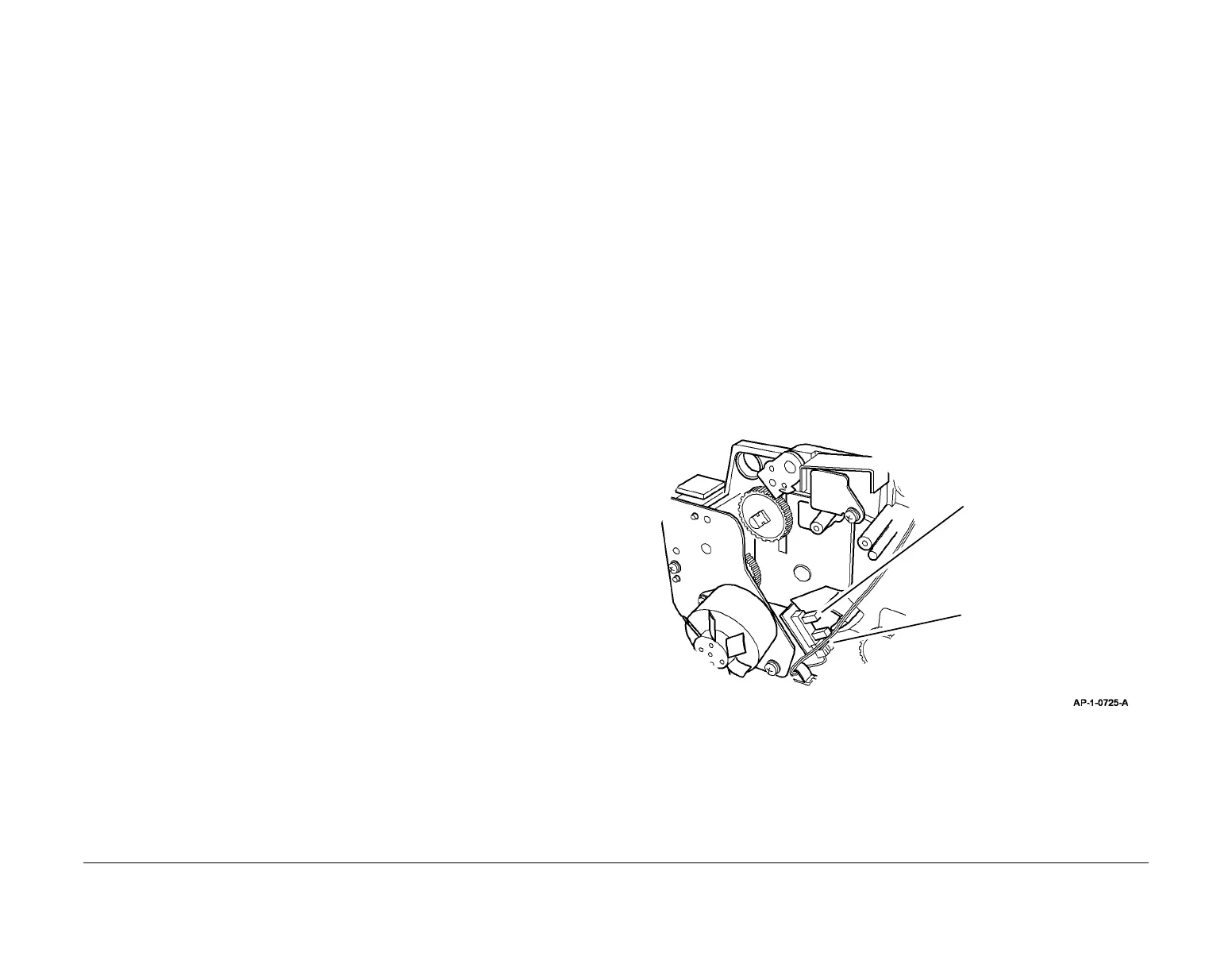

Figure 1 Gate HP Sensor Removal
Replacement
Replacement is the reverse of the removal procedure.
2
Remove the gate HP
sensor.
1
Disconnect the sensor.
