January 2016
4-68
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.18
Repairs and Adjustments

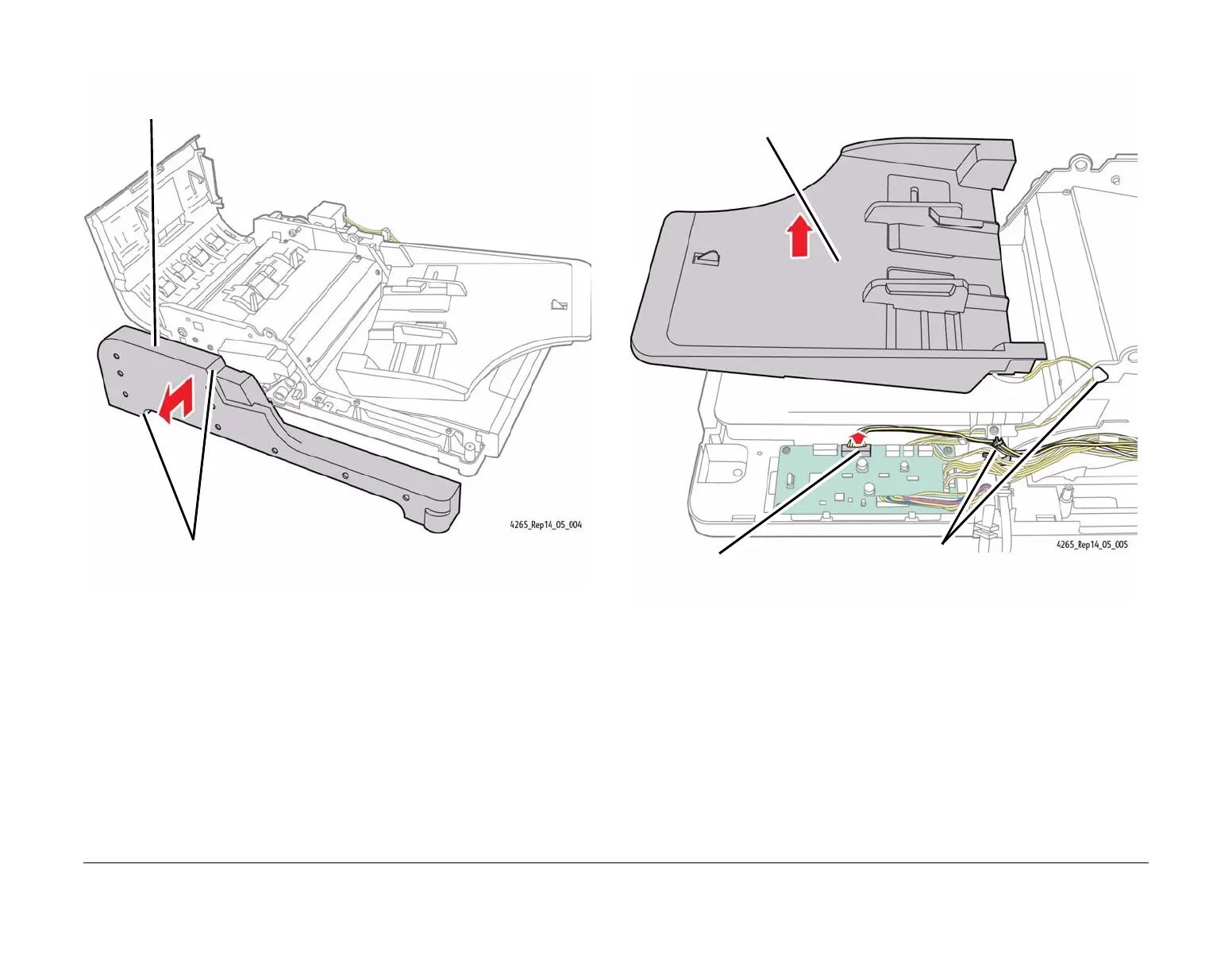

8. Remove the DADF Front Cover (Figure 6).
Figure 6 Removing the DADF Front Cover
9. Remove the DADF Feed Tray (Figure 7).
Figure 7 Removing the DADF Feed Tray
1
Release the plastic tabs on the inner DADF Front Cover.
2
Lift the Front Cover upwards and remove it from the DADF.
3
Remove the DADF Feed Tray
from the machine.
1
Disconnect CN9 on the
DADF PWB.
2
Route the wire harness out of the
cable clip and the hole in frame.
To Next Page
