January 2016
4-73
WorkCentre 4150/4250/4260WorkCentre WorkCentre 4150/4250/42604150/
REP 5.19
Repairs and Adjustments

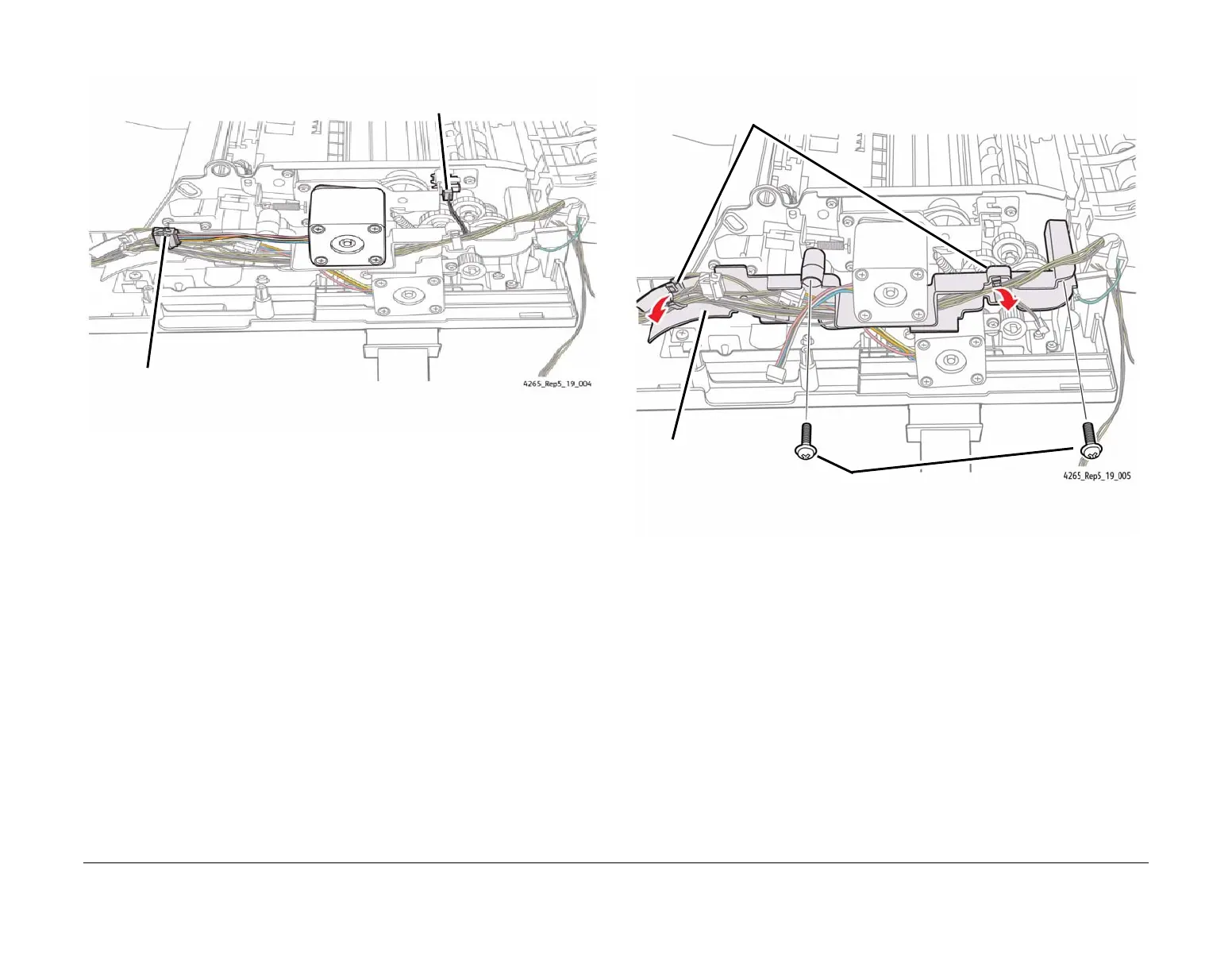

7. Disconnect the two connectors (Figure 4).
Figure 4 Disconnecting the Connectors
8. Remove the Harness Holder (Figure 5)
Figure 5 Removing the Harness Holder
1
Disconnect the Drive Roll
Motor connector.
2
Disconnect the connector.
2
Remove the two mounting screws and
remove the Harness Holder.
1
Open the two wire clips and remove the wires.
Harness Holder
