January 2016
4-74
WorkCentre WorkCentre 4150/4250/4260WorkCentre 4150/4250/42604150/
REP 5.19
Repairs and Adjustments
9. Remove the DADF Drive Roll Motor Assembly (Figure 6).

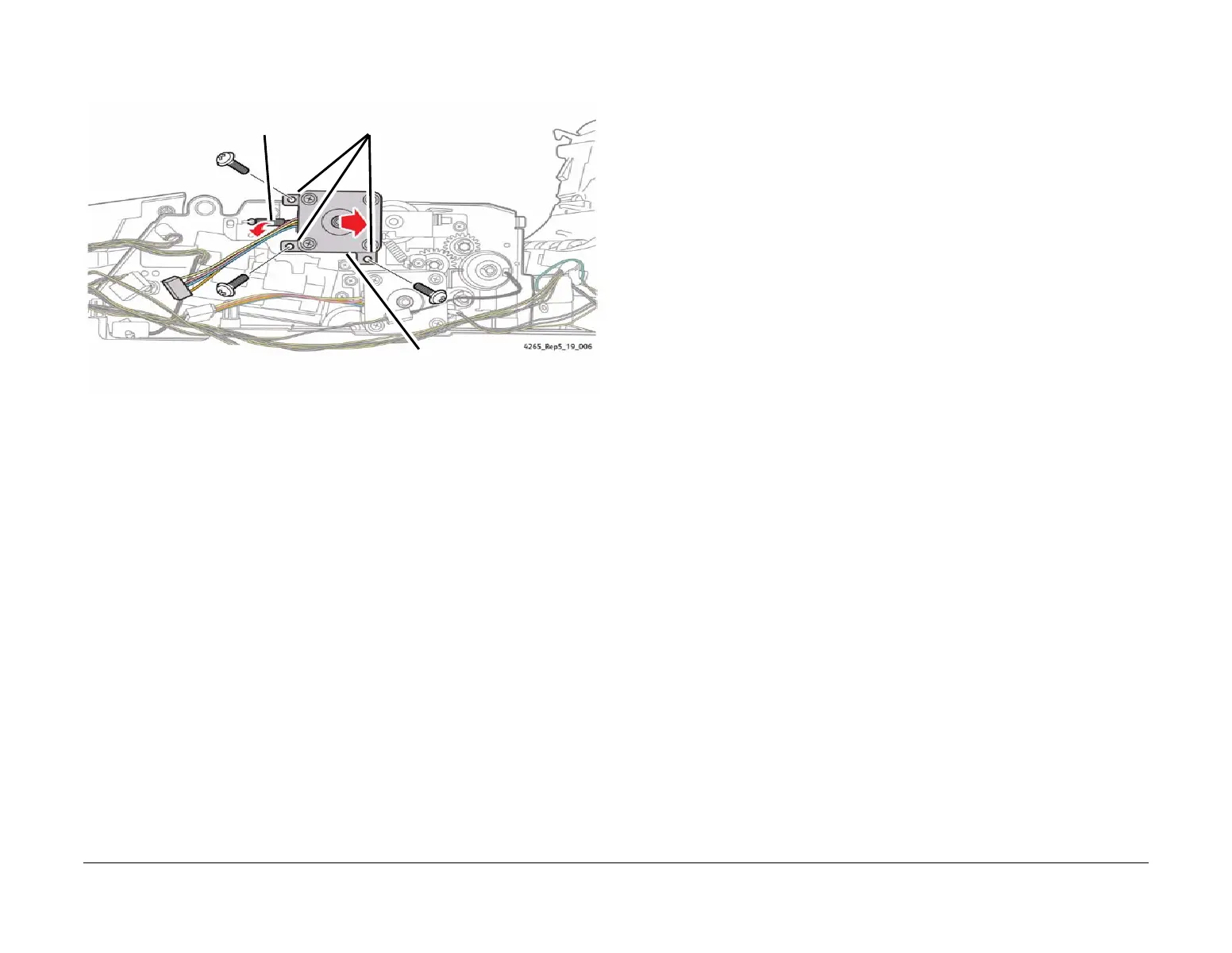

Figure 6 Removing the DADF Drive Roll Motor Assembly
Replacement
1. Reinstall the DADF Drive Roll Motor Assembly:
a. Install the drive belt onto the Drive Roll Motor drive gear.
b. Loosely install the Drive Roll Motor using the three mounting screws.
c. Reinstall the idler spring.
d. Tighten down the three motor mounting screws.
2. Reinstallation is the reverse of the Removal procedure.
2
Remove the three motor
mount screws.
1
Remove the
idler spring.
3
Detach the motor drive belt.
4
Remove the DADF Drive Roll Motor Assembly.
To Next Page
