REP 5.23
Repairs and Adjustments
4. With the Top Cover open, clean the rollers (Figure 2).

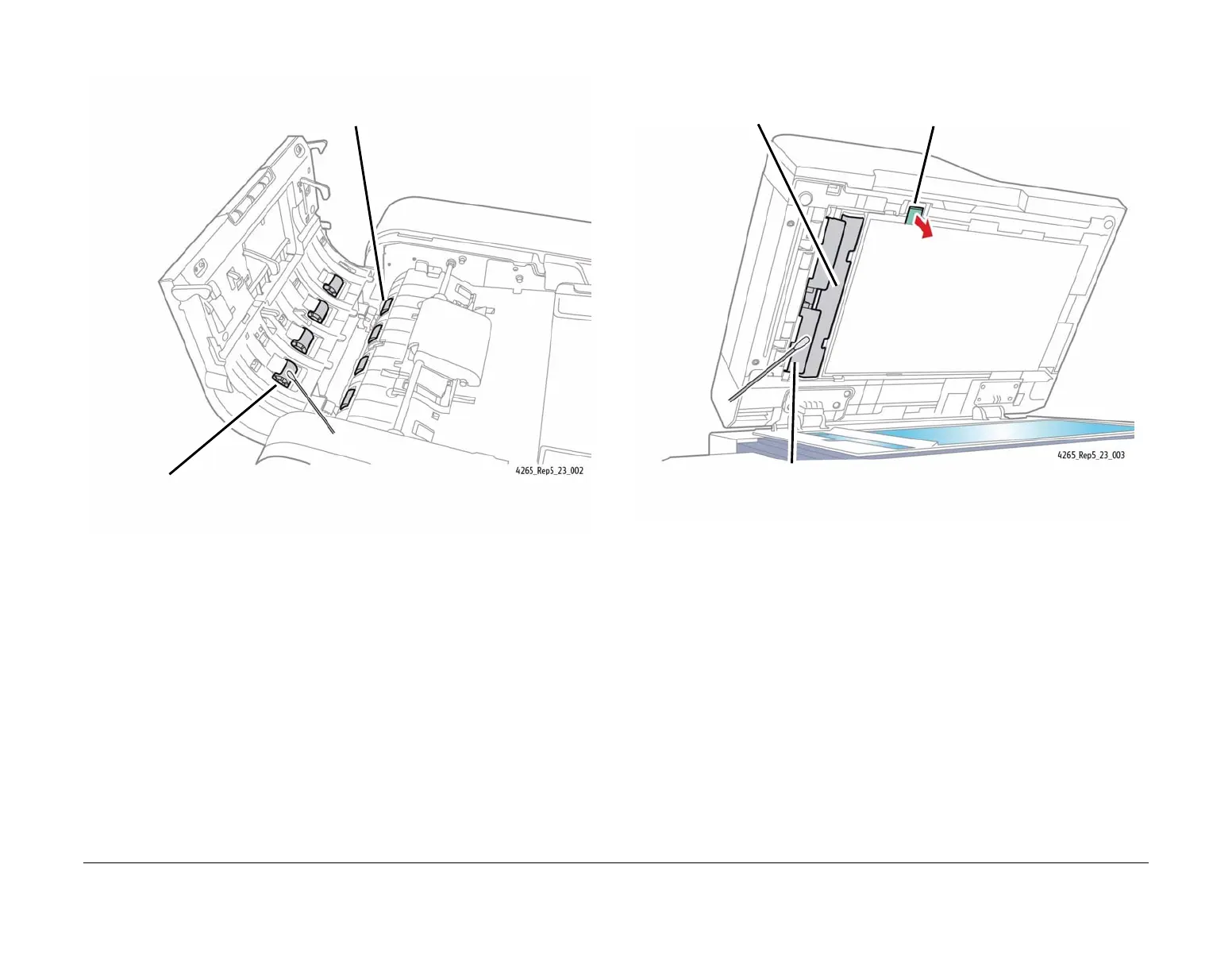

Figure 2 Cleaning the Registration and Idler Rollers
5. Close the Top Cover.
6. Open the DADF Unit.
7. Clean the black plastic film and the White Bar (Figure 3).
Figure 3 Cleaning the Film and the White Bar
1
Clean the four registration rollers.
2
Clean the four idler rollers.
2
Clean the White Bar.
1
Clean the black plastic film.
3
Grip the tab and open the Cover.
